Headlamp Automatic Control Ambient Light Sensor Replacement

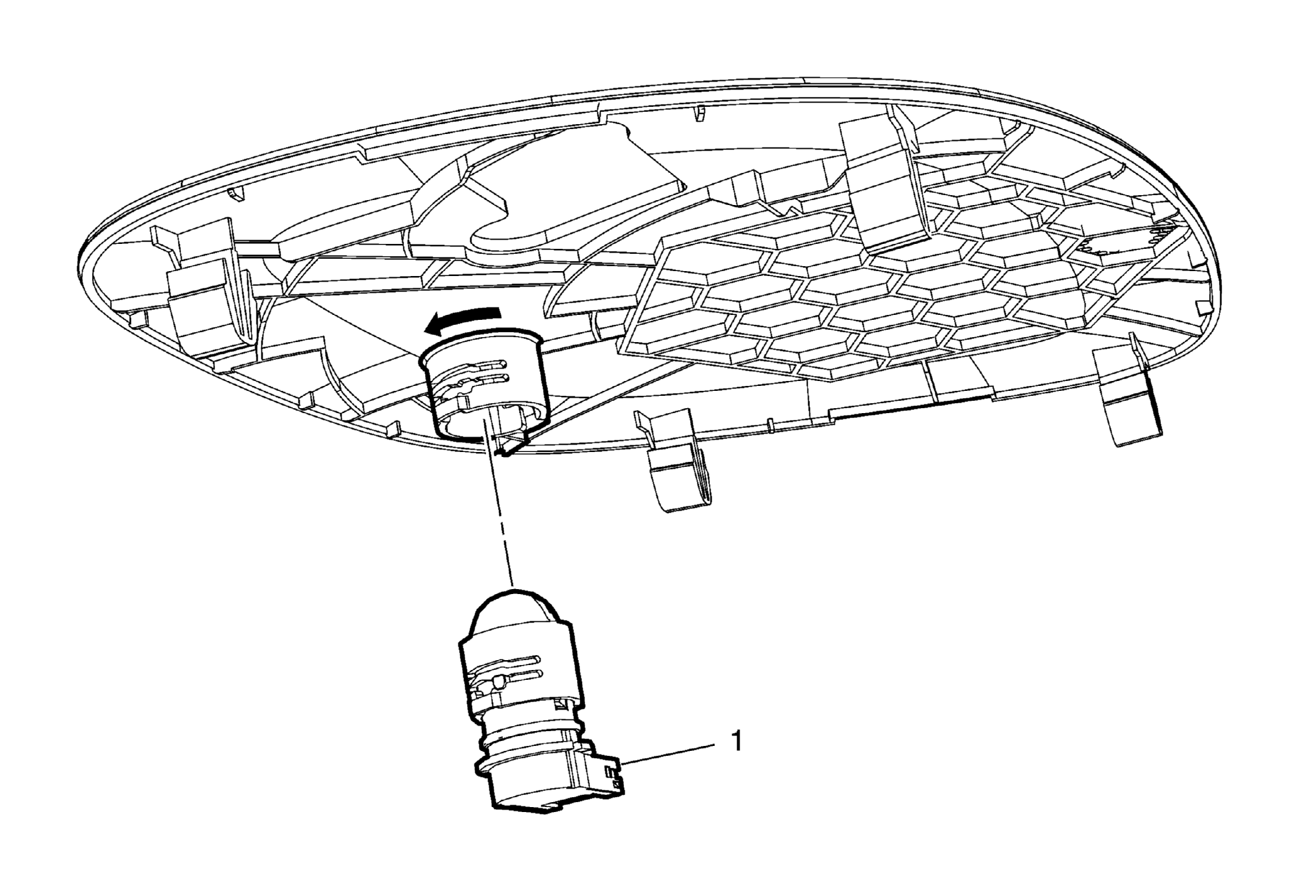

Fig 1: Headlamp Automatic Control Ambient Light Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Radio Front Center Speaker Grille Replacement
1	Headlamp Automatic Control Ambient Light Sensor Procedure Remove the sensor from the guide housing. Disconnect the electrical connector.

Callout

Component Name

Headlamp Automatic Control Ambient Light Sensor

Procedure
