Hazard Warning Switch Replacement

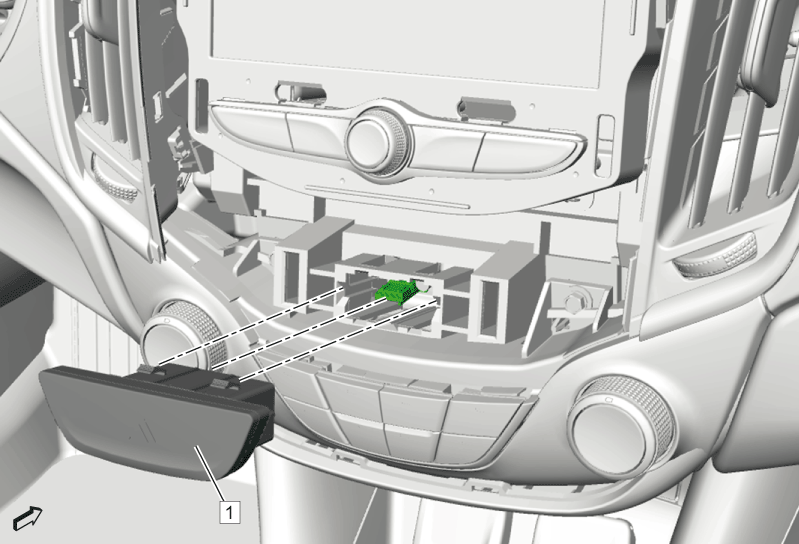

Fig 1: Hazard Warning Switch
GM4421911Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Instrument Panel Trim Plate Replacement
1 Hazard Warning Switch

Procedures

  1. Unlock the retaining tabs.
  2. Disconnect the electrical connectors.
