Front Fog Lamp Replacement

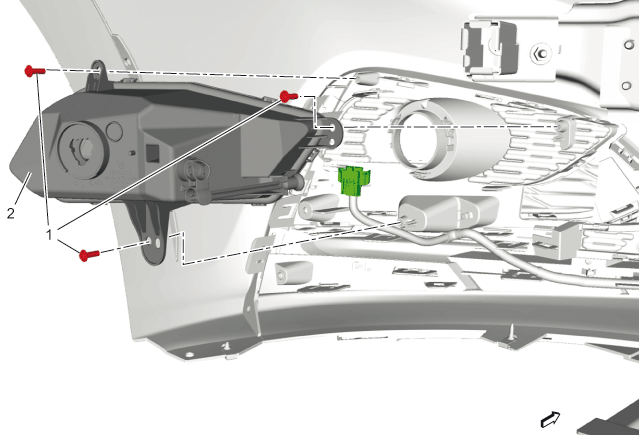

Fig 1: Front Fog Lamp

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Lifting and Jacking the Vehicle
1	Front Fog Lamp Bolt (Qty: 3) CAUTION: Refer to: Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Front Fog Lamp Procedure Disconnect the electrical connector. Replace the bulb as necessary. Adjust -Fog Lamp Aiming

Callout

Component Name

Front Fog Lamp Bolt (Qty: 3)

CAUTION:

Tighten
2.5 N.m (22 lb in)

Front Fog Lamp

Procedure
