Navigation Signal Splitter Replacement

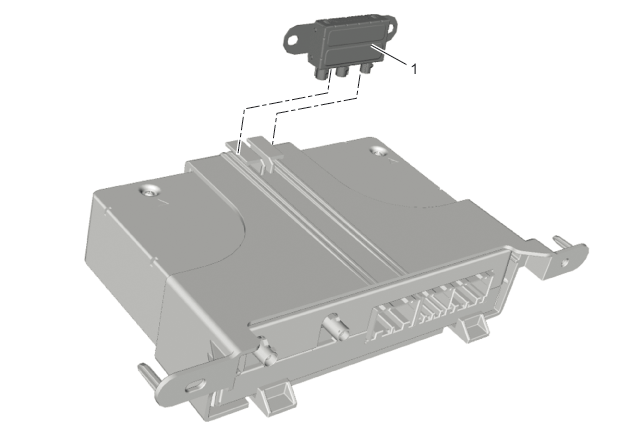

Fig 1: Navigation Signal Splitter

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disconnect Battery Negative Cable. Refer to Battery Negative Cable Disconnection and Connection Remove Communication Interface Module Bracket. Refer to Communication Interface Module Bracket Replacement
1	Navigation Signal Splitter Procedure Unlock the retaining tabs.

Callout

Component Name

Preliminary Procedures

Disconnect Battery Negative Cable. Refer to Battery Negative Cable Disconnection and Connection
Remove Communication Interface Module Bracket. Refer to Communication Interface Module Bracket Replacement

Navigation Signal Splitter
Procedure
Unlock the retaining tabs.
