Digital Radio Receiver Bracket Replacement

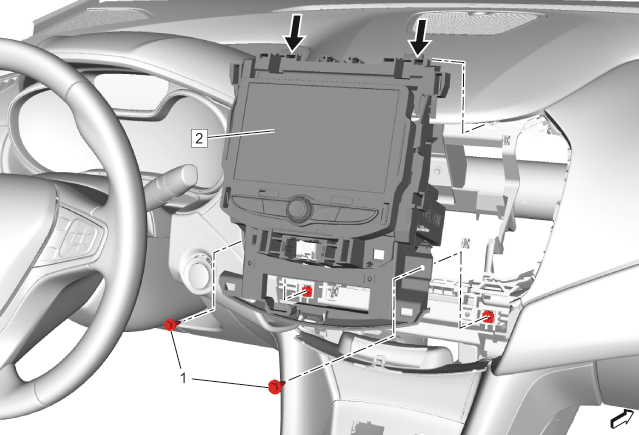

Fig 1: Digital Radio Receiver Bracket
GM4325703Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Disconnect Battery Negative Cable. Refer to Battery Negative Cable Disconnection and Connection
  2. Remove Heater and Air Conditioning Control. Refer to Heater and Air Conditioning Control Replacement
1 Digital Radio Receiver Bracket Fastener (Qty: 2)
CAUTION:

Refer to Fastener Caution


Tighten
2.5 N.m (22 lb in)
2 Digital Radio Receiver Bracket

Procedure

  1. Disconnect the electrical connectors.
  2. Unlock the retaining tabs in direction of arrow.
  3. Remove Radio Control. Refer to Radio Replacement (Notchback - IO5 and IO6) Radio Replacement (IOA) Radio Replacement (Hatchback - IO5 and IO6)
