Forward Collision (UEU) and Lane Departure (UHX)

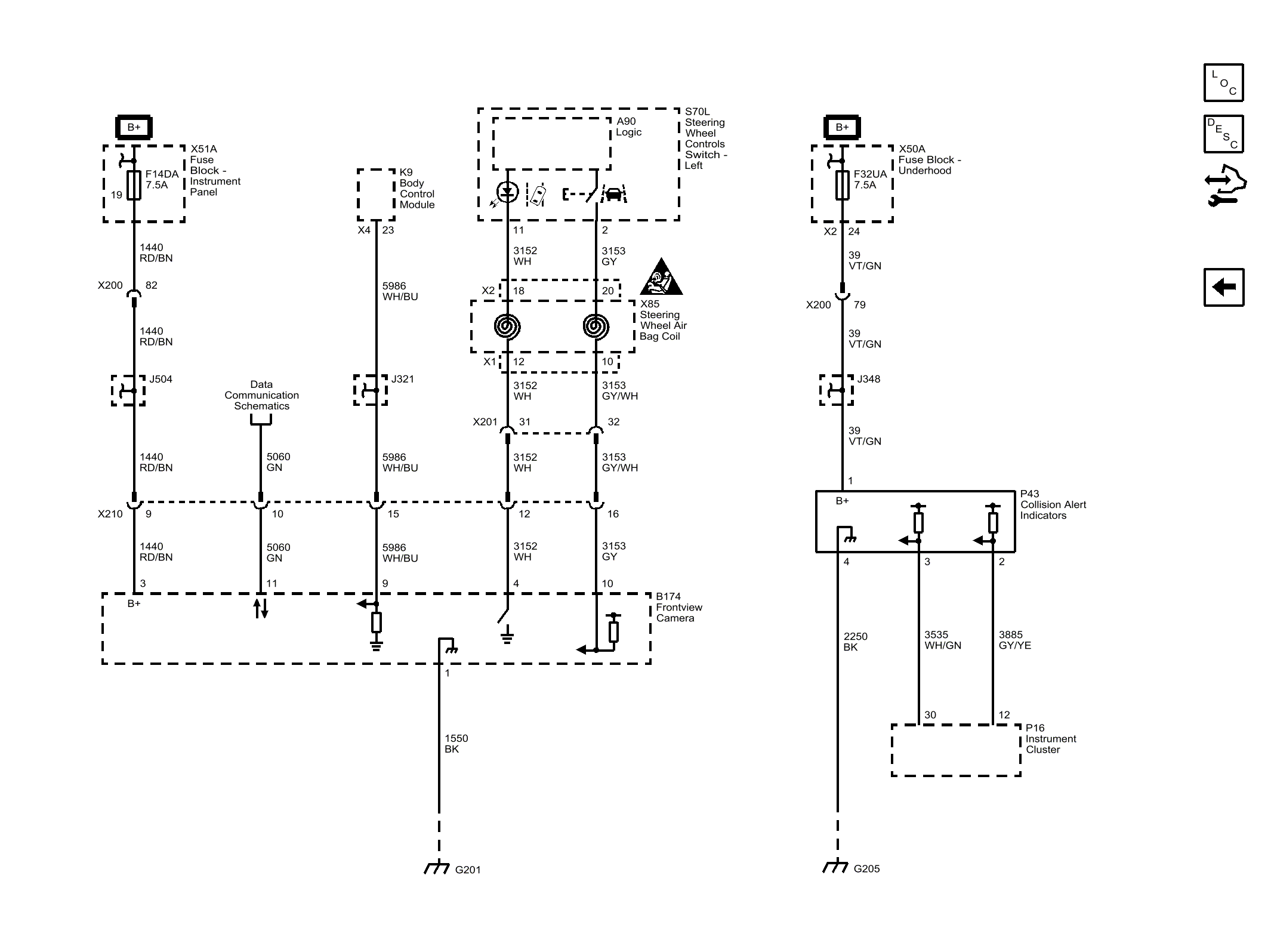

Fig 1: Forward Collision (UEU) and Lane Departure (UHX)

GM4335057

Courtesy of GENERAL MOTORS COMPANY
