Rearview Driver Information Camera Replacement (Hatchback)

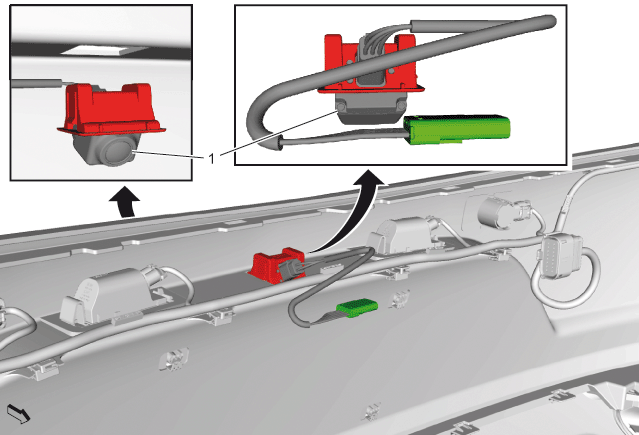

Fig 1: Rearview Driver Information Camera (Hatchback)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Rear Bumper Fascia. Refer to Rear Bumper Fascia Replacement (Hatchback)
1	Rearview Driver Information Camera Procedure Disconnect the electrical connector. Unclip the rearview driver information camera with bracket from the rear bumper fascia.

Callout

Component Name

Preliminary Procedure
Remove Rear Bumper Fascia. Refer to Rear Bumper Fascia Replacement (Hatchback)

Rearview Driver Information Camera

Procedure

Disconnect the electrical connector.
Unclip the rearview driver information camera with bracket from the rear bumper fascia.
