Installation Procedure

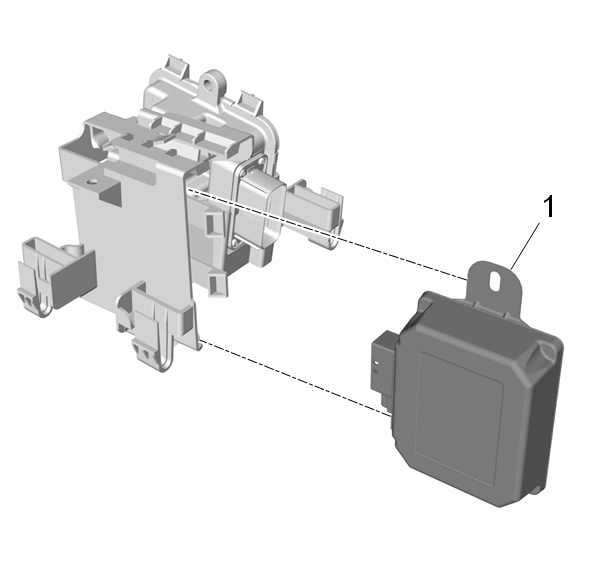

    Fig 1: Multifunction Power Supply Converter
    GM4850220Courtesy of GENERAL MOTORS COMPANY
  1. Install Multifunction Power Supply Converter (1)

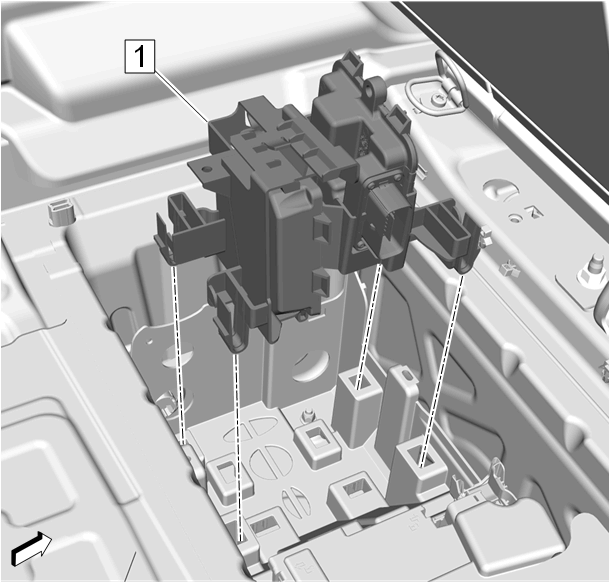

    2. Fig 2: Fuel Pump Power Control Module Bracket
    GM4850218Courtesy of GENERAL MOTORS COMPANY
  2. Install Fuel Pump Power Control Module Bracket (1)

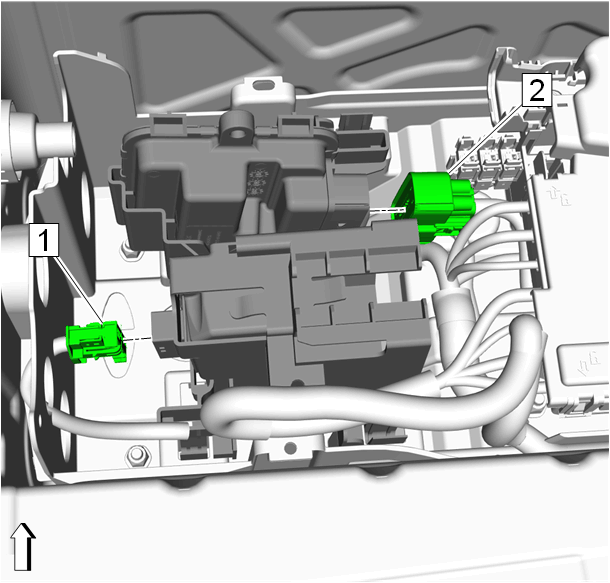

    3. Fig 3: Electrical Connector
    GM4850217Courtesy of GENERAL MOTORS COMPANY
  3. Connect Electrical Connector (2)
  4. Connect Electrical Connector (1)

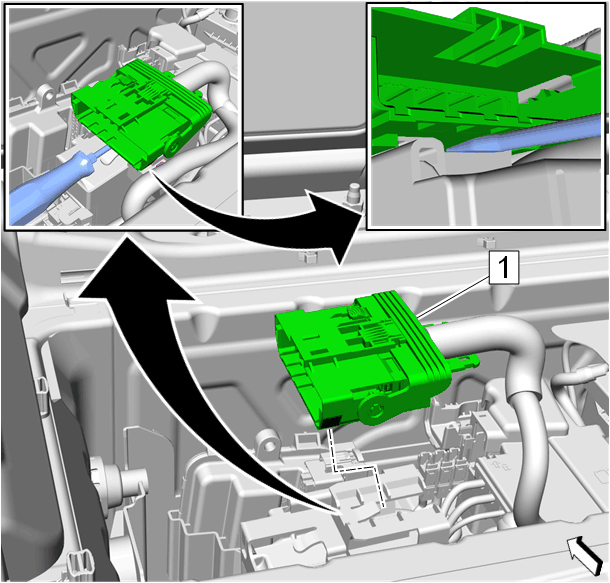

    5. Fig 4: Electrical Connector
    GM4850215Courtesy of GENERAL MOTORS COMPANY
  5. Install Electrical Connector (1)

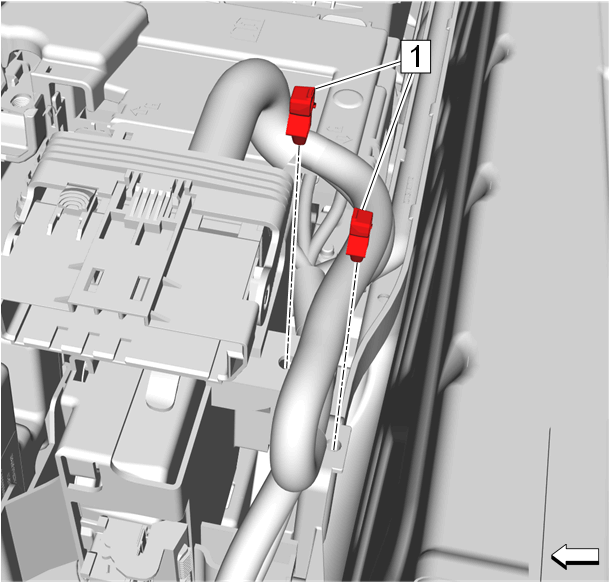

    6. Fig 5: Retainer
    GM4850214Courtesy of GENERAL MOTORS COMPANY
  6. Install Retainer (1)

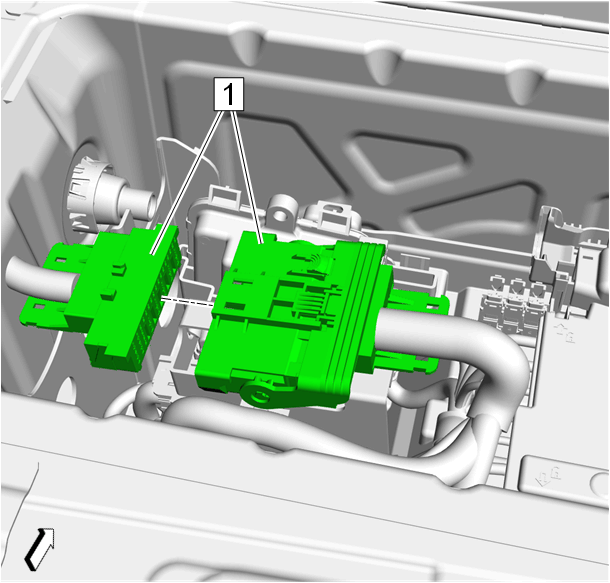

    7. Fig 6: Electrical Connectors
    GM4850212Courtesy of GENERAL MOTORS COMPANY
  7. Connect the electrical connectors.(1)
    8. Fig 7: Battery Positive Cable Terminal
    GM4850211Courtesy of GENERAL MOTORS COMPANY
  8. Install the battery positive cable terminal (1).

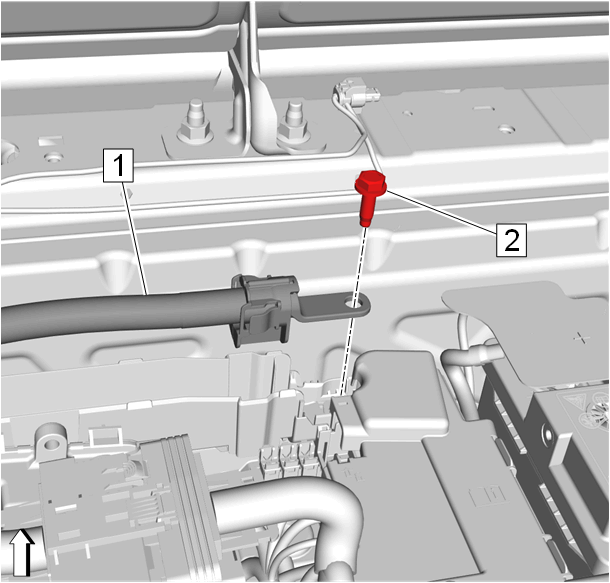

    9. Fig 8: Battery Positive Cable Bolt
    GM4850210Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Fastener Caution

  9. Install Battery Positive Cable(1)
  10. Install Battery Positive Cable Bolt(2) and tighten 15 N.m (11 lb ft)

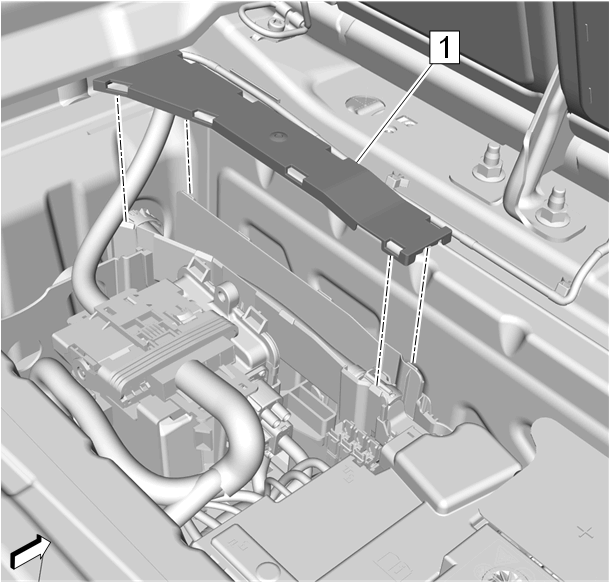

    11. Fig 9: Positive Cable Terminal Cover
    GM4849182Courtesy of GENERAL MOTORS COMPANY
  11. Install Battery Positive Cable Terminal Cover (1)
  12. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
