Installation Procedure

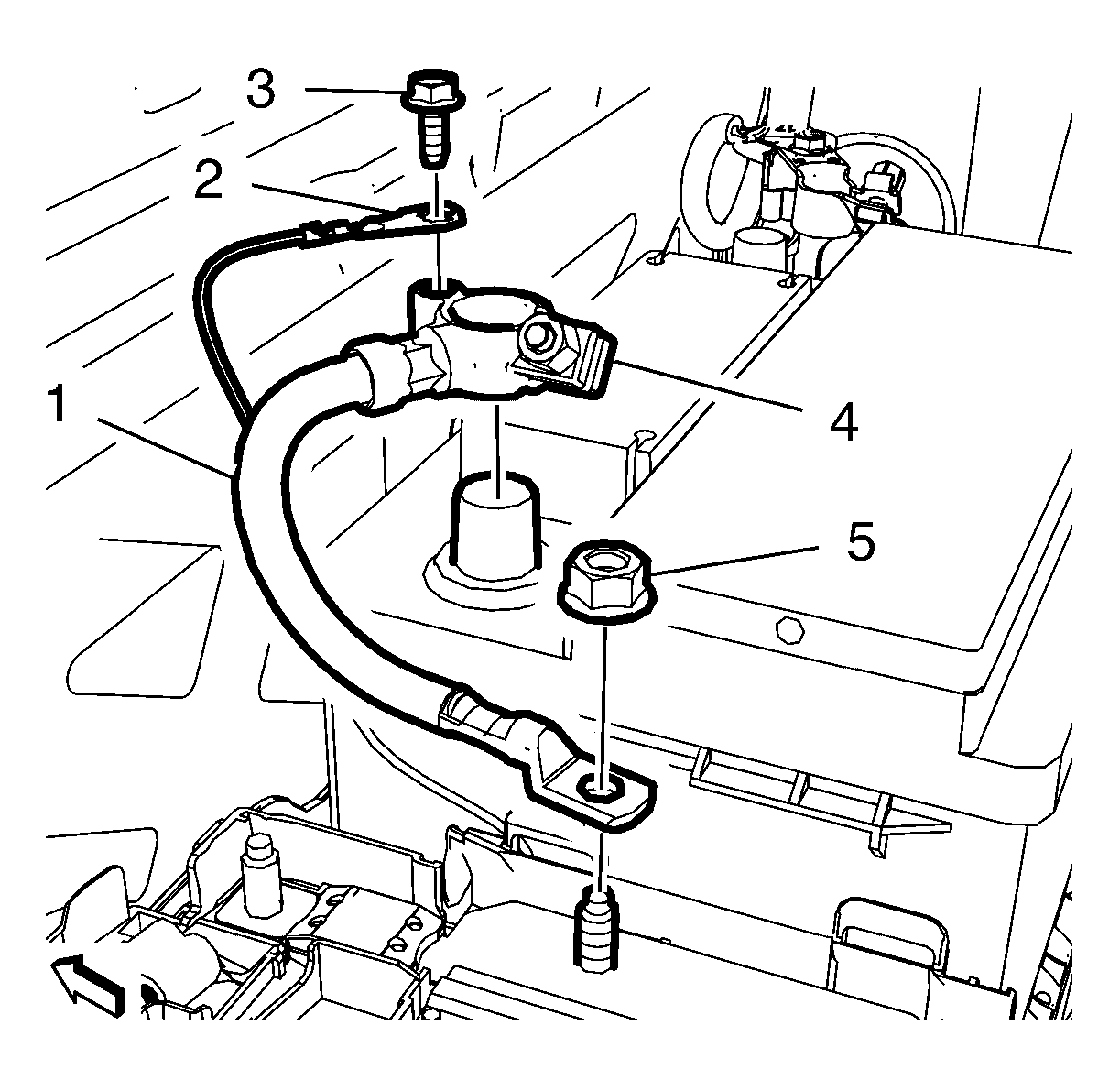

    Fig 1: Battery To Fuse Block Cable
    GM3684335Courtesy of GENERAL MOTORS COMPANY
  1. Install the battery to fuse block cable (1).
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the battery positive cable to fuse block nut (5) and tighten to 9 N.m (80 lb in).
  3. Install the body extension wiring harness (2).
    4. NOTE:

    Counterhold the battery positive clamp.

  4. Install the body extension wiring harness bolt (3) and tighten to 9 N.m (80 lb in).
  5. Tighten the battery positive cable nut (4) to 4.5 N.m (40 lb in).

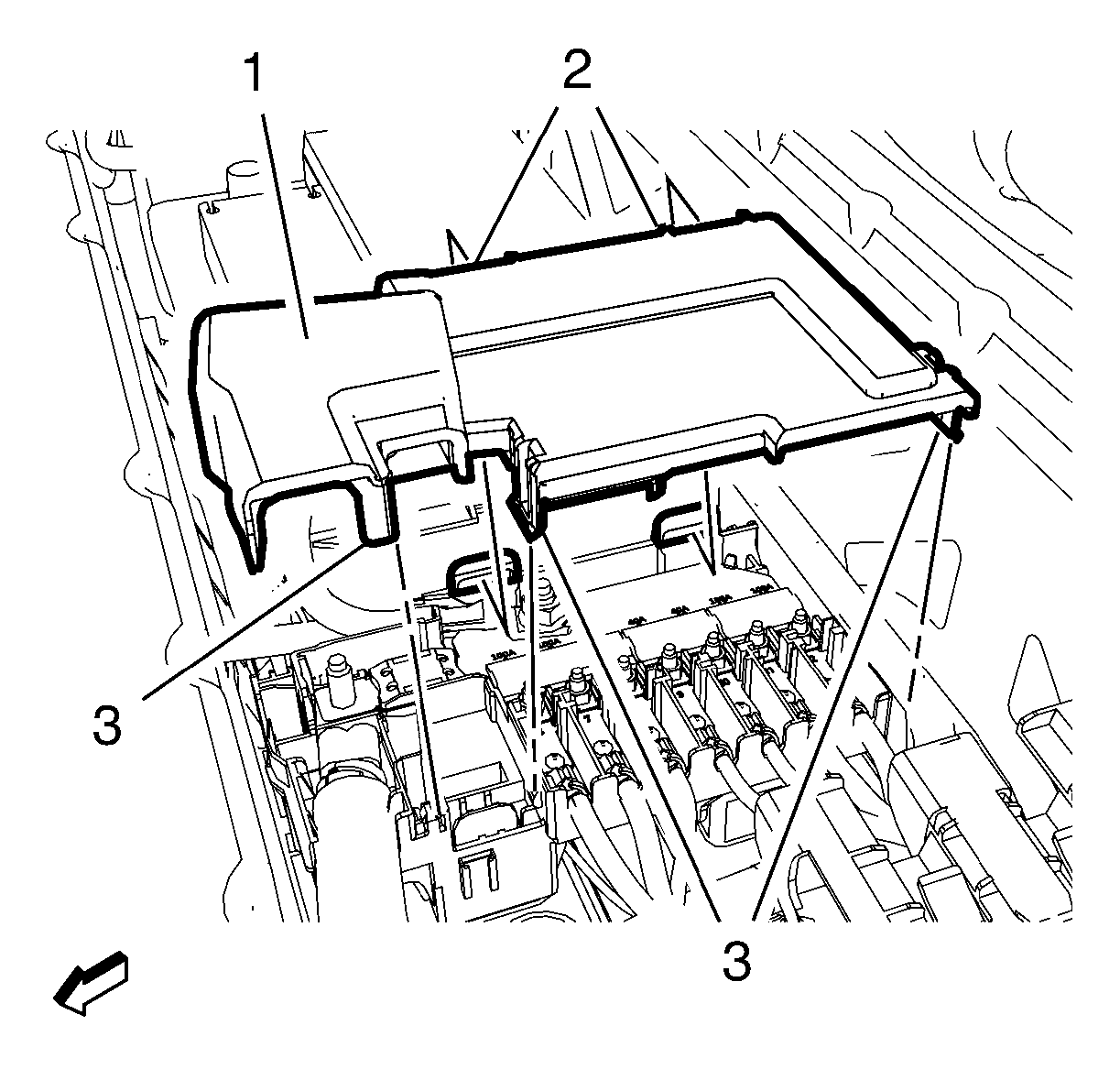

    6. Fig 2: Fuse Block Cover, Retainers And Retaining Tabs
    GM3684334Courtesy of GENERAL MOTORS COMPANY
  6. Install the fuse block cover (2). Install the rear fuse block cover retainers (2) to the fuse block.
  7. Lock the 3 retaining tabs (3) into the battery fuse block cover.
  8. Fold the rear seat back cushion in original position.
  9. Close the left rear door.
  10. Install Rear Compartment Floor Panel Trim Support.
  11. Install Rear Compartment Floor Panel Trim.
  12. Connect Battery Negative Cable Disconnection and Connection
