Installation Procedure

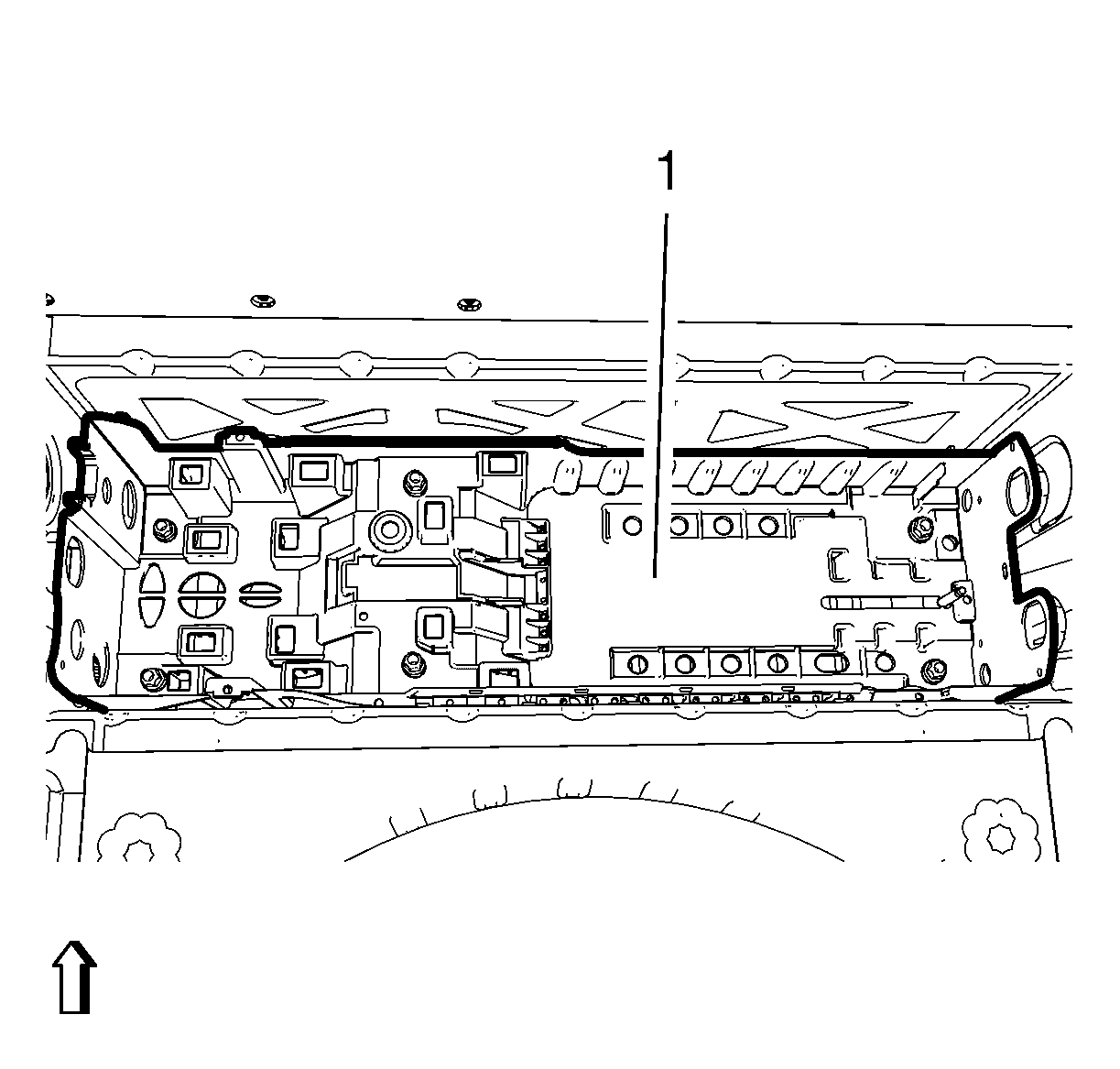

    Fig 1: Battery Tray
    GM3684383Courtesy of GENERAL MOTORS COMPANY
  1. Install Battery Tray (1)
  2. Raise the vehicle.

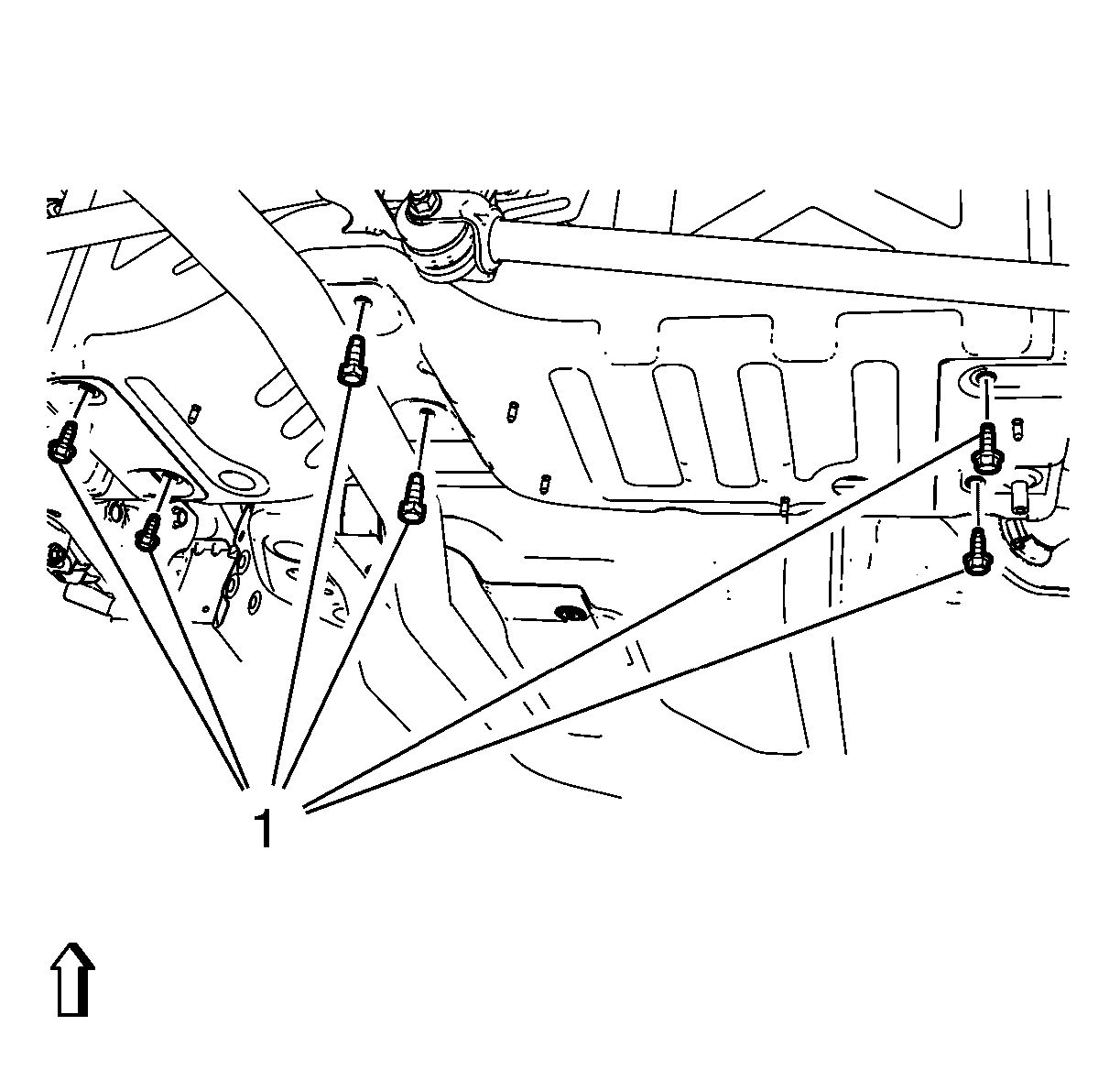

    3. Fig 2: Battery Tray Mounting Bolts
    GM3684425Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Fastener Caution

  3. Install Battery Tray Mounting Bolt (1) and tighten 22 N.m (16 lb ft)
  4. Lower the vehicle.

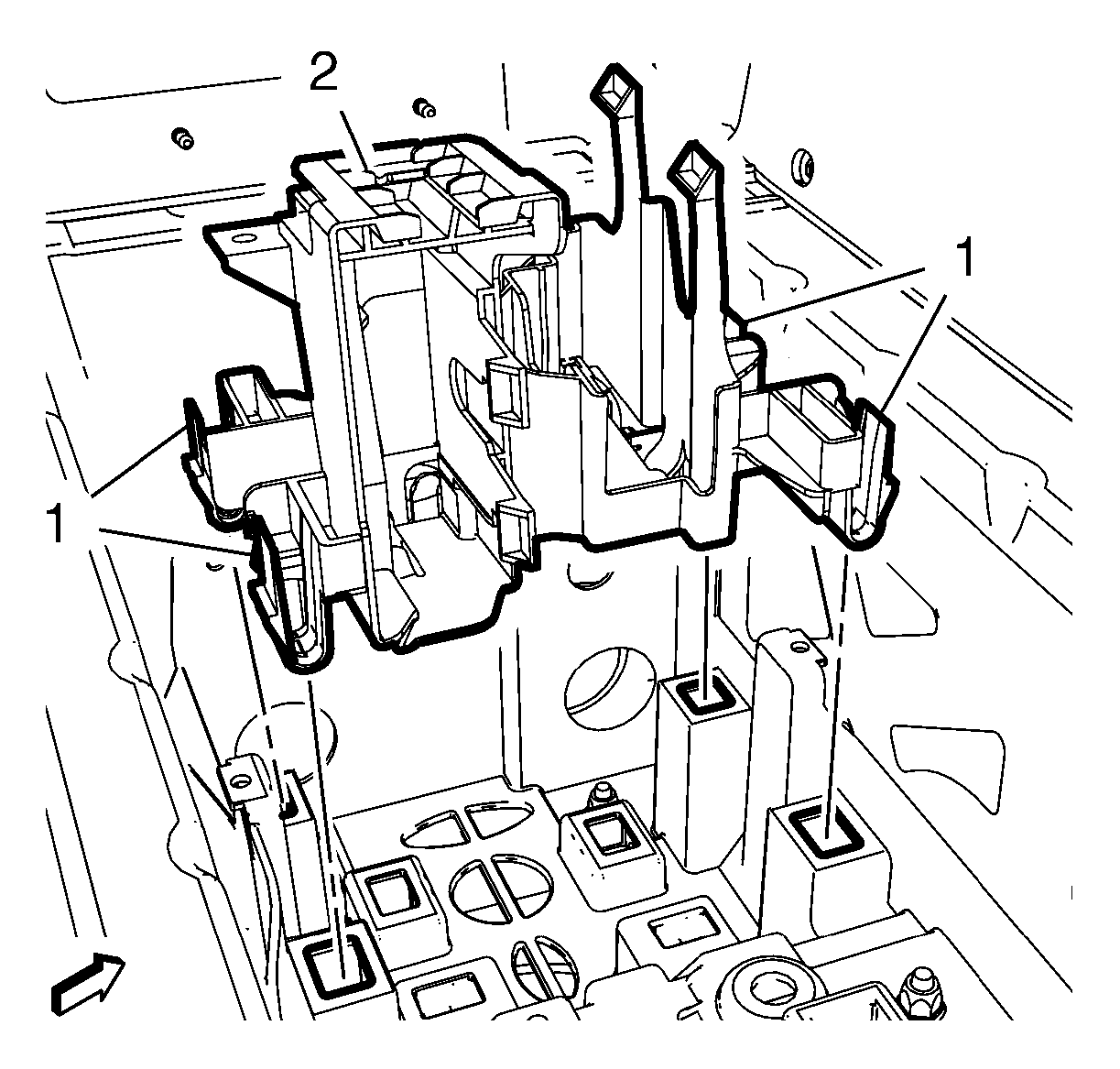

    5. Fig 3: Fuel Pump Power Control Module Bracket And Retainers
    GM3684382Courtesy of GENERAL MOTORS COMPANY
  5. Install the fuel pump power control module bracket (2) to the battery tray.
  6. Lock the 4 retainers (1).
  7. Install wiring harness retainers to battery tray as necessary.
  8. Install Multifunction Power Supply Converter Replacement
  9. Install Fuel Pump Power Control Module Replacement
  10. Install Fuse Block Replacement
  11. Battery Replacement
