Removal Procedure

  1. Ensure that all lamps and accessories are turned off.
  2. Turn the ignition OFF and remove the ignition key.
  3. Open the rear compartment lid.
  4. Remove Rear Compartment Floor Panel Trim Replacement (Notchback)Rear Compartment Floor Panel Trim Replacement (Hatchback)
  5. Open the right rear door.
  6. Fold the rear seat back cushion forward to get a better access to the battery.

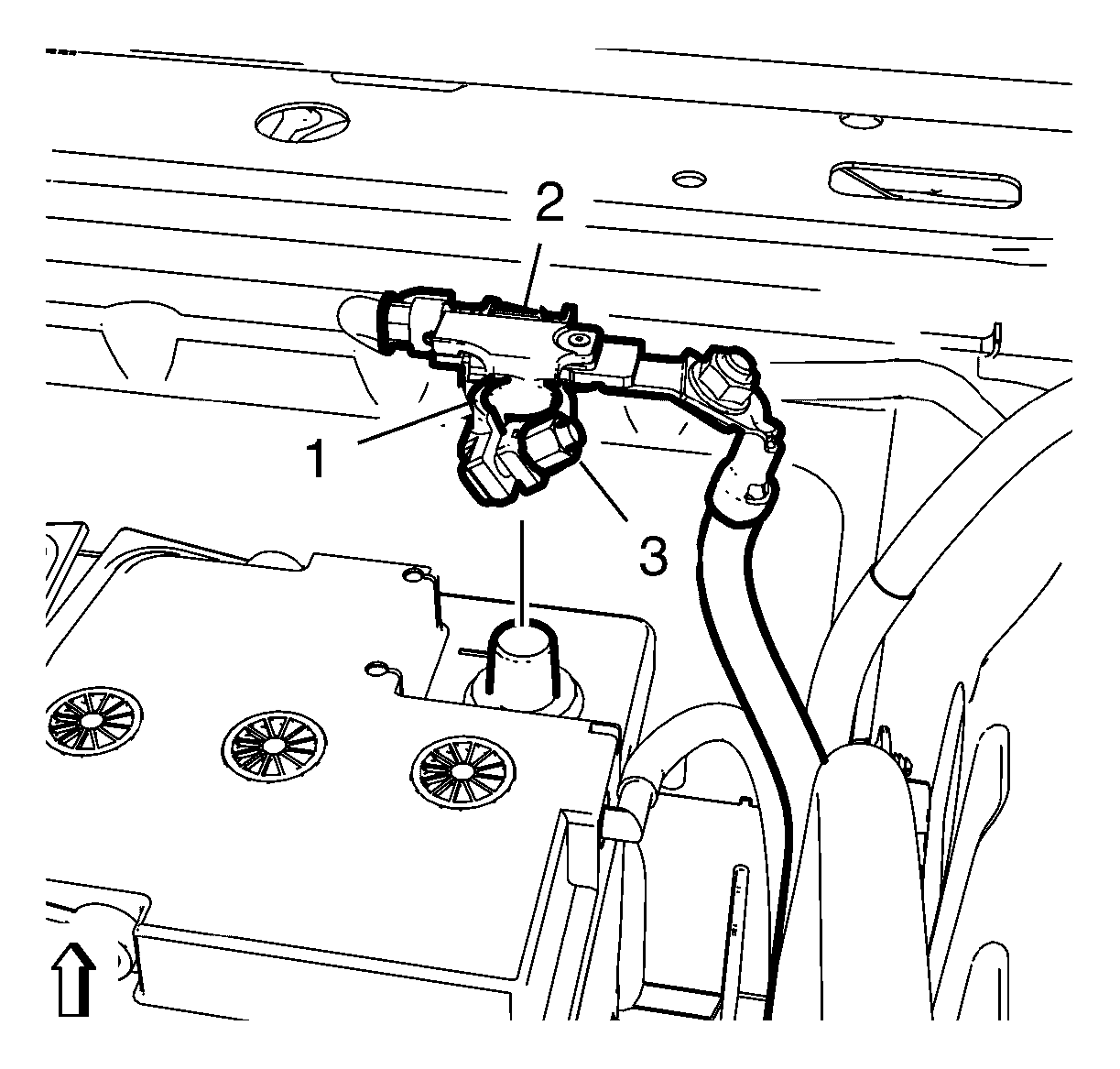

    7. Fig 1: Battery Sensor, Battery Negative Cable And Nut
    GM3682560Courtesy of GENERAL MOTORS COMPANY
    WARNING:

    Battery Disconnect Warning

  7. Loosen the negative battery cable nut. (2)
  8. Remove the battery negative cable (1) along with the battery sensor (2) from the battery.

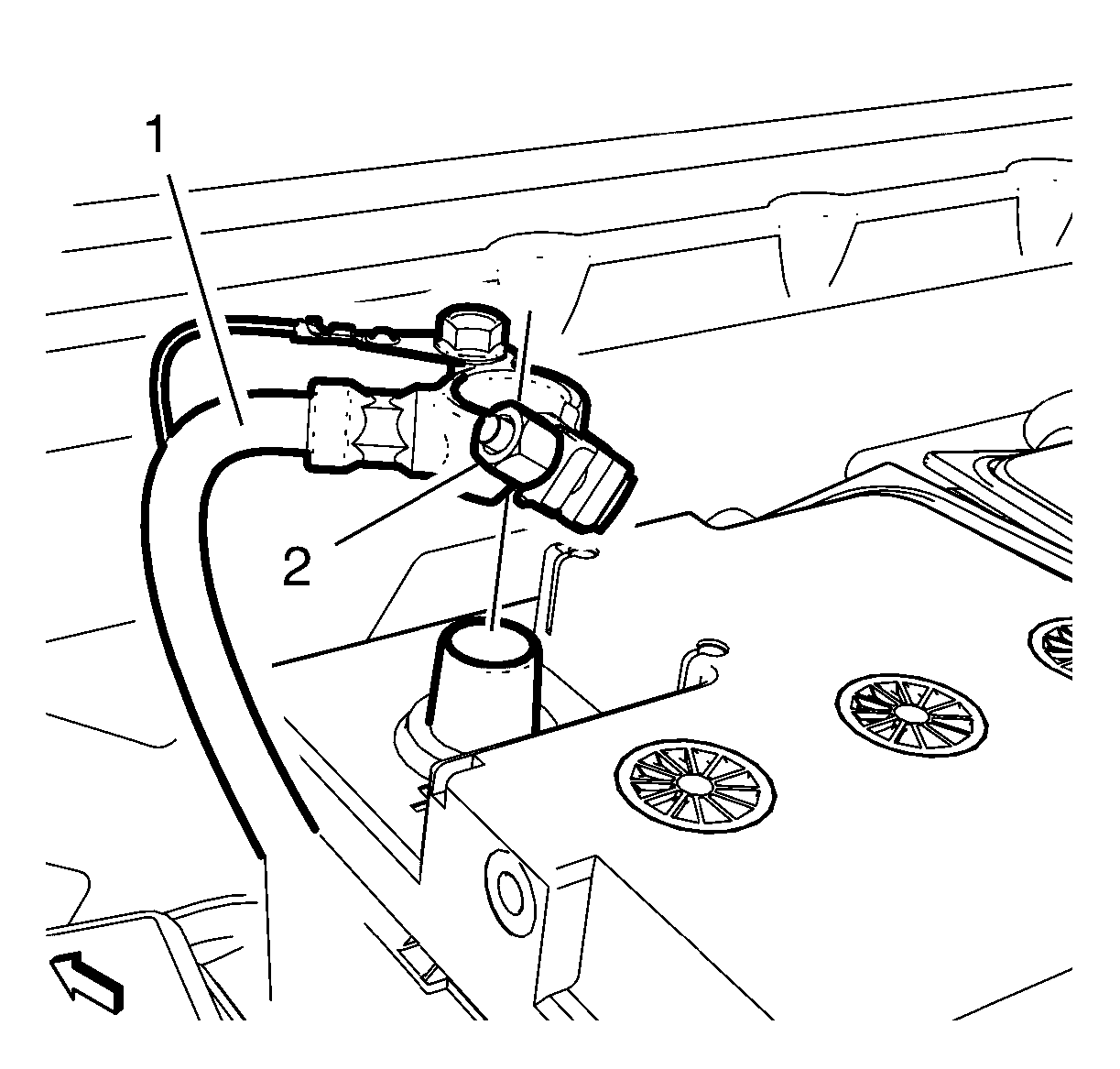

    9. Fig 2: Battery To Fuse Block Cable And Battery Positive Cable Nut
    GM3686211Courtesy of GENERAL MOTORS COMPANY
  9. Loosen the battery positive cable nut (2).
  10. Disconnect the battery to fuse block cable (1).

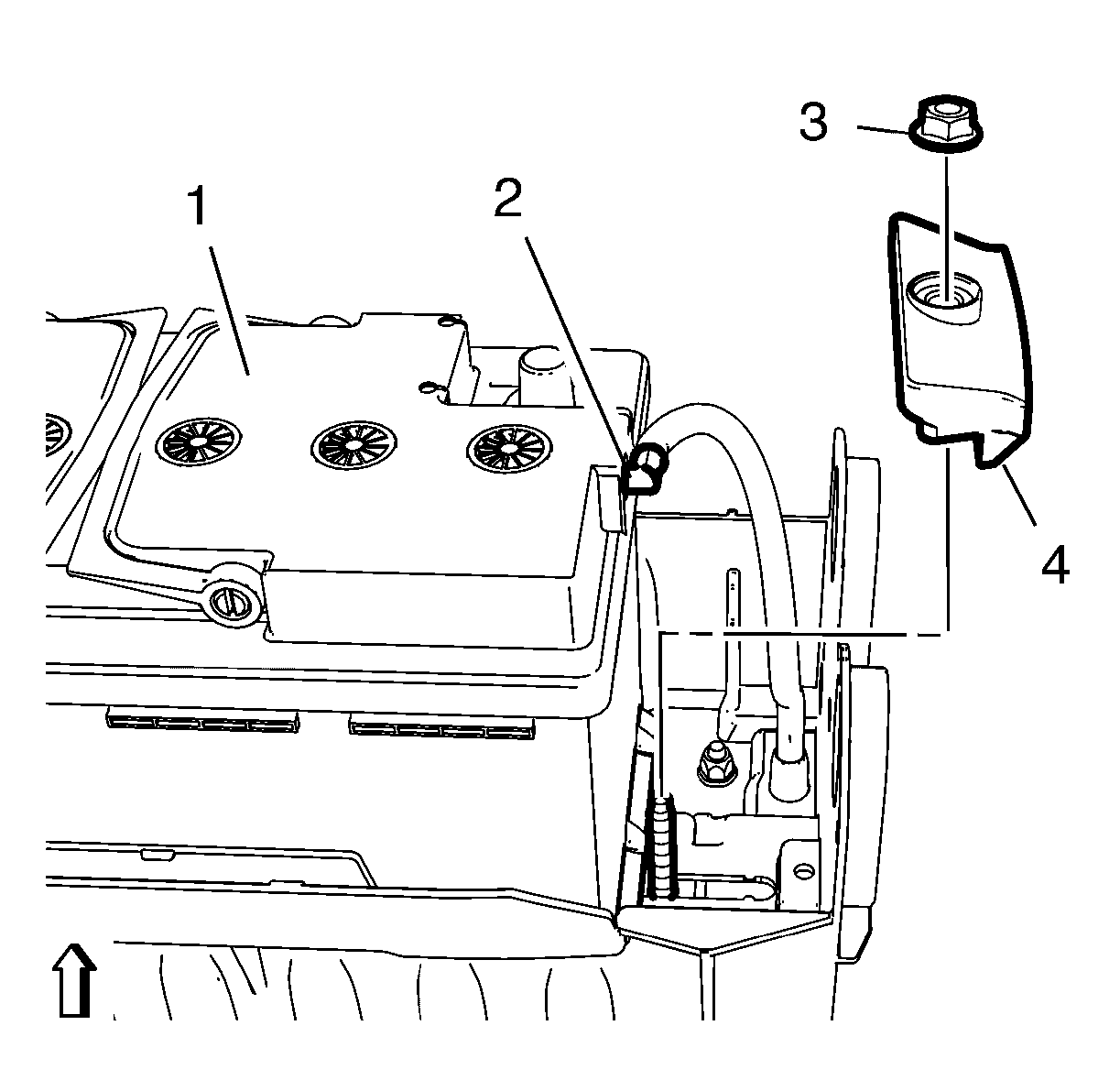

    11. Fig 3: Battery, Battery Vent Tube, Battery Hold Down Retainer And Nut
    GM3686212Courtesy of GENERAL MOTORS COMPANY
  11. Remove the battery vent tube (2) from the battery.
  12. Remove the battery hold down retainer nut (3).
  13. Remove Battery Hold Down Retainer (4)
  14. Remove Battery (1)
