Installation Procedure

  1. For notchback 4 use the following steps:

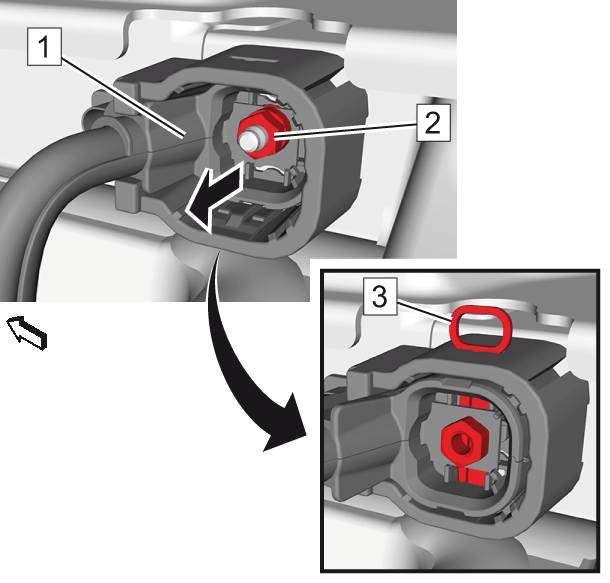

      Fig 1: Battery Negative Cable To Rear Floor Panel Nut
      GM4421764Courtesy of GENERAL MOTORS COMPANY
    1. Remove the retainer (3) and slide the battery negative cable back to the original position.
      2. CAUTION:

      Fastener Caution

    2. Tighten the battery negative cable to rear floor panel nut (2) and tighten to 22 N.m (16 lb ft).
  2. For hatchback 5 use the following steps:

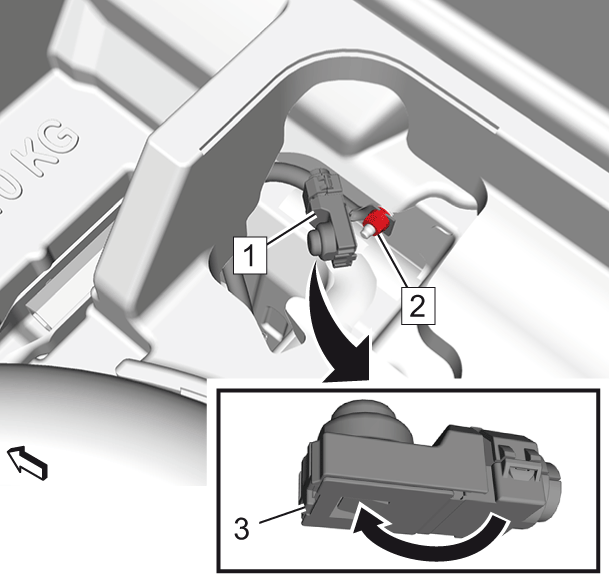

      Fig 2: Battery Negative Cable Terminal Cover
      GM4421762Courtesy of GENERAL MOTORS COMPANY
    1. Release the hook (3). Fold the latch against the arrow direction to open the battery negative cable terminal.
    2. Connect Battery Negative Cable
    3. Install the battery negative cable to rear floor panel nut (2) and tighten to 22 N.m (16 lb ft).
    4. Close the battery negative cable terminal cover (1).
  3. Close the rear compartment floor panel trim.
  4. Close the rear compartment lid.
  5. Ignition - On / Vehicle - In Service Mode & Engine - Off
  6. Program the volatile memory. Volatile Memory Programming
  7. Program all of the customer's radio station presets and set the radio clock to the current time.
