Installation Procedure

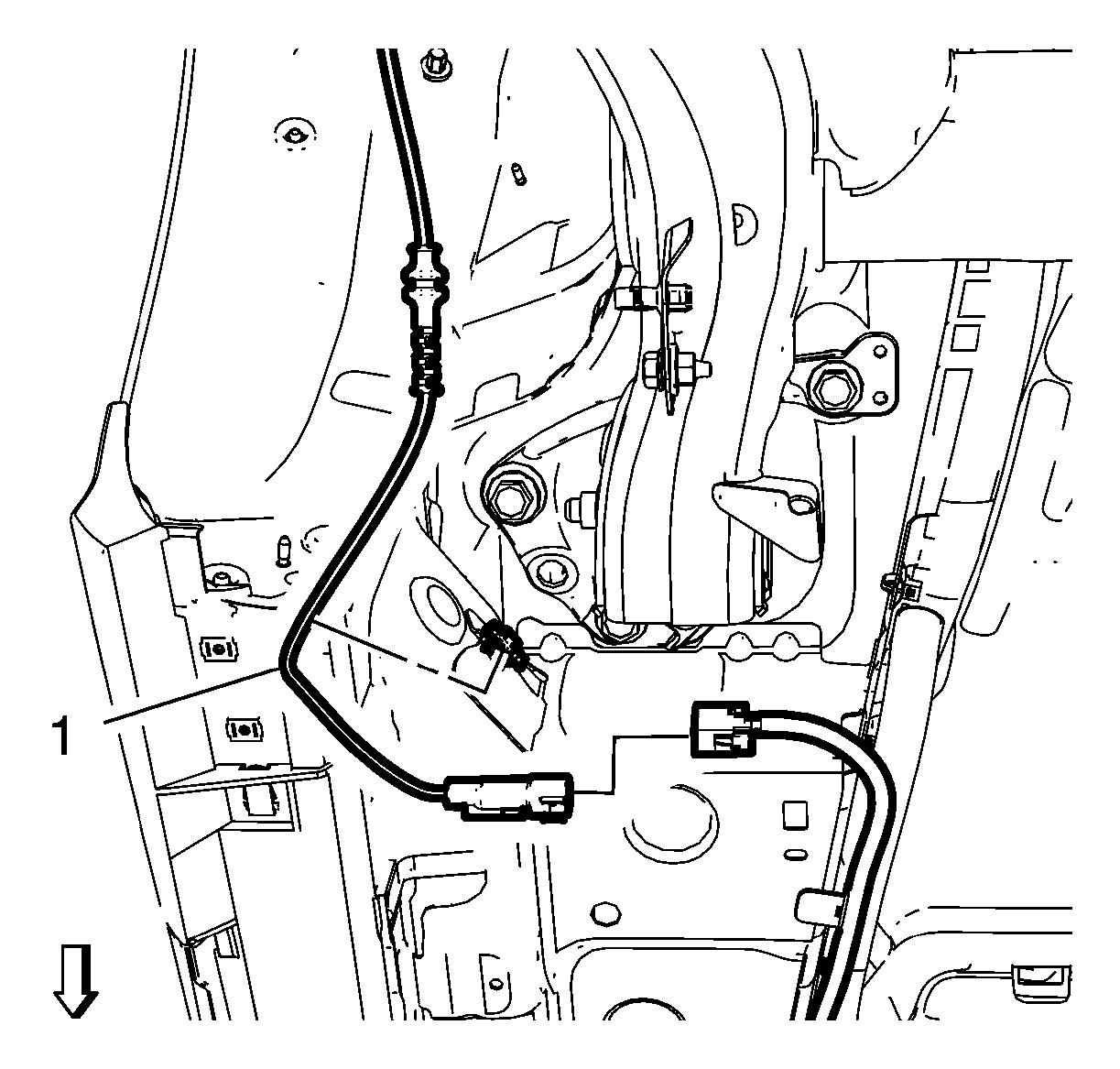

    Fig 1: Rear Wheel Speed Sensor Harness
    GM3657219Courtesy of GENERAL MOTORS COMPANY
  1. Connect Wheel Speed Sensor Connector
  2. Install Rear Wheel Speed Sensor Harness (1)

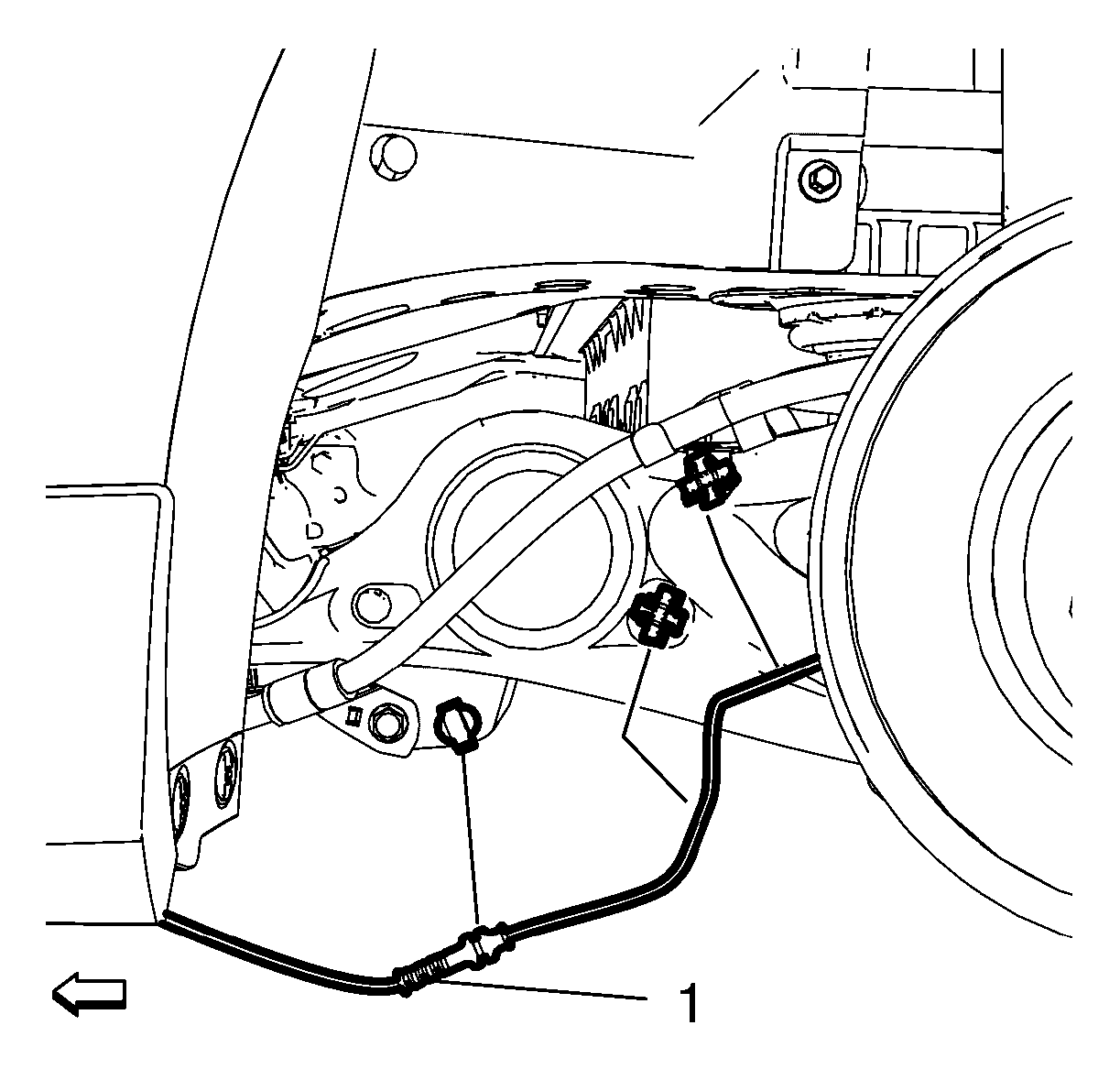

    3. Fig 2: Rear Wheel Speed Sensor Harness
    GM3657218Courtesy of GENERAL MOTORS COMPANY
  3. Install Rear Wheel Speed Sensor Harness (1)

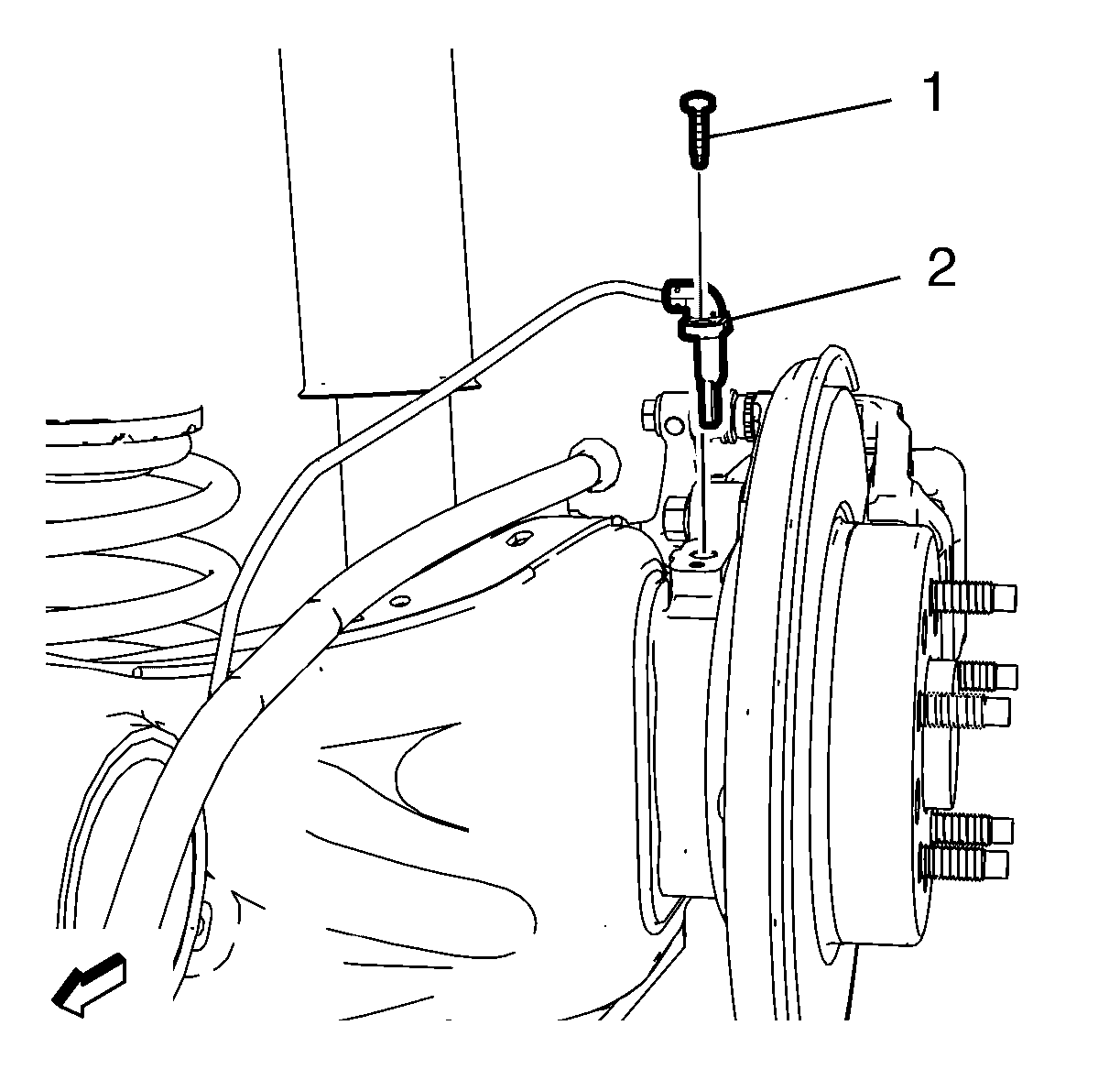

    4. Fig 3: Rear Wheel Speed Sensor And Bolt
    GM3657217Courtesy of GENERAL MOTORS COMPANY
  4. Install Rear Wheel Speed Sensor (2)
    5. CAUTION:

    Refer to Fastener Caution .

  5. Tighten Bolt (1) to 6 N.m (53 lb in)
  6. Install Tire and Wheel. Refer to Tire and Wheel Removal and Installation - Install
