Removal Procedure

WARNING:

Refer to Brake Fluid Irritant Warning

CAUTION:

Refer to Brake Fluid Effects on Paint and Electrical Components Caution

  1. Disconnect Battery Negative Cable. Refer to Battery Negative Cable Disconnection and Connection
  2. Remove Dash Upper Extension Panel Opening Cover. Refer to Dash Upper Extension Panel Opening Cover Replacement
    3. Fig 1: Radiator Surge Tank And Bracket Clip
    GM3650415Courtesy of GENERAL MOTORS COMPANY
  3. Remove Radiator Surge Tank Bracket Clip (2)
    4. NOTE:

    Do NOT disconnect the engine coolant hoses.

  4. Reposition away Radiator Surge Tank (1)
    5. Fig 2: Brake Pressure Modulator Valve And Secondary Pipe
    GM3655395Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Cap the brake pipe fitting and plug the brake master cylinder outlet port to prevent brake fluid loss and contamination.

  5. Remove Brake Pressure Modulator Valve Secondary Pipe (1) @ Brake Pressure Modulator Valve (3)
    6. Fig 3: Brake Pressure Modulator Valve And Primary Pipe
    GM3655396Courtesy of GENERAL MOTORS COMPANY
  6. Remove Brake Pressure Modulator Valve Primary Pipe (1) @ Brake Pressure Modulator Valve (3)
    7. Fig 4: Electronic Brake Control Module And Electrical Connector
    GM3655413Courtesy of GENERAL MOTORS COMPANY
  7. Disconnect Electrical Connector (2) @ Electronic Brake Control Module (1)
  8. Unclip wiring harness from brake pressure modulator valve bracket.

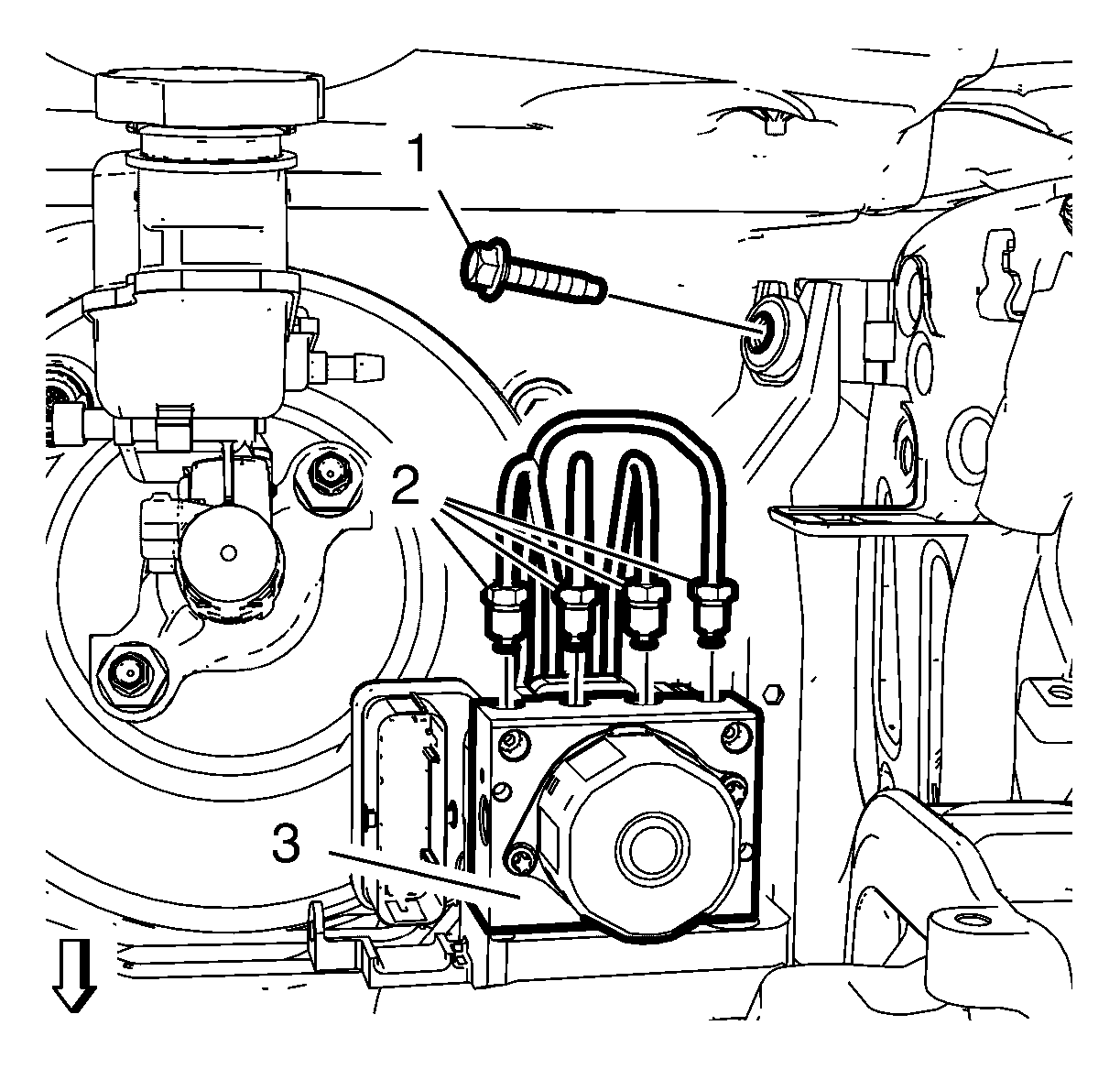

    9. Fig 5: Brake Pipe Fittings And Bolt
    GM4297909Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Cap the brake pipe fittings to prevent brake fluid loss and contamination.

  9. Loosen Brake Pipe Fittings (2) (Qty: 4)
  10. Remove Bolt (1)
  11. Remove the electronic brake and traction control module and brake pressure modulator valve (3) along with brake pressure modulator valve bracket from the vehicle.
  12. Remove Brake Pressure Modulator Valve Bracket. Refer to Brake Pressure Modulator Valve Bracket Replacement
