Installation Procedure

  1. Install Brake Pressure Modulator Valve Bracket. Refer to Brake Pressure Modulator Valve Bracket Replacement

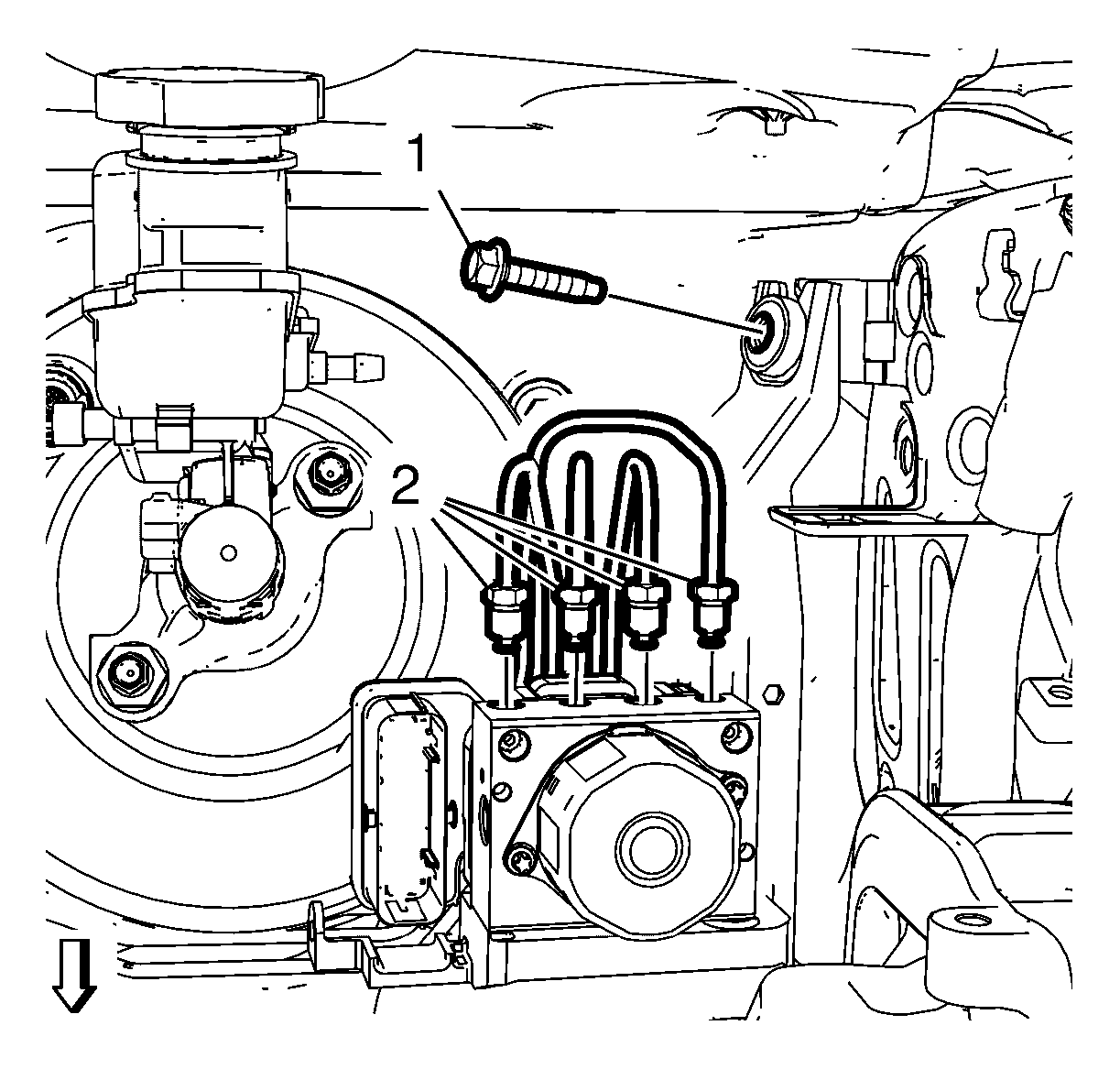

    2. Fig 1: Brake Pipe Fittings And Bolt
    GM3655414Courtesy of GENERAL MOTORS COMPANY
  2. Install the electronic brake and traction control module and brake pressure modulator valve along with brake pressure modulator valve bracket to the vehicle.
    3. CAUTION:

    Refer to Fastener Caution

  3. Install and tighten Bolt (1) to 20 N.m (15 lb ft)
    4. WARNING:

    Make sure brake pipes are correctly connected to brake pressure modulator valve. If brake pipes are switched by mistake, wheel lockup will occur and personal injury may result. The only two ways this condition can be detected are by using a Scan Tool or by doing an Antilock stop.

  4. Tighten Brake Pipe Fittings (2) (Qty: 4) to 20 N.m (15 lb ft)

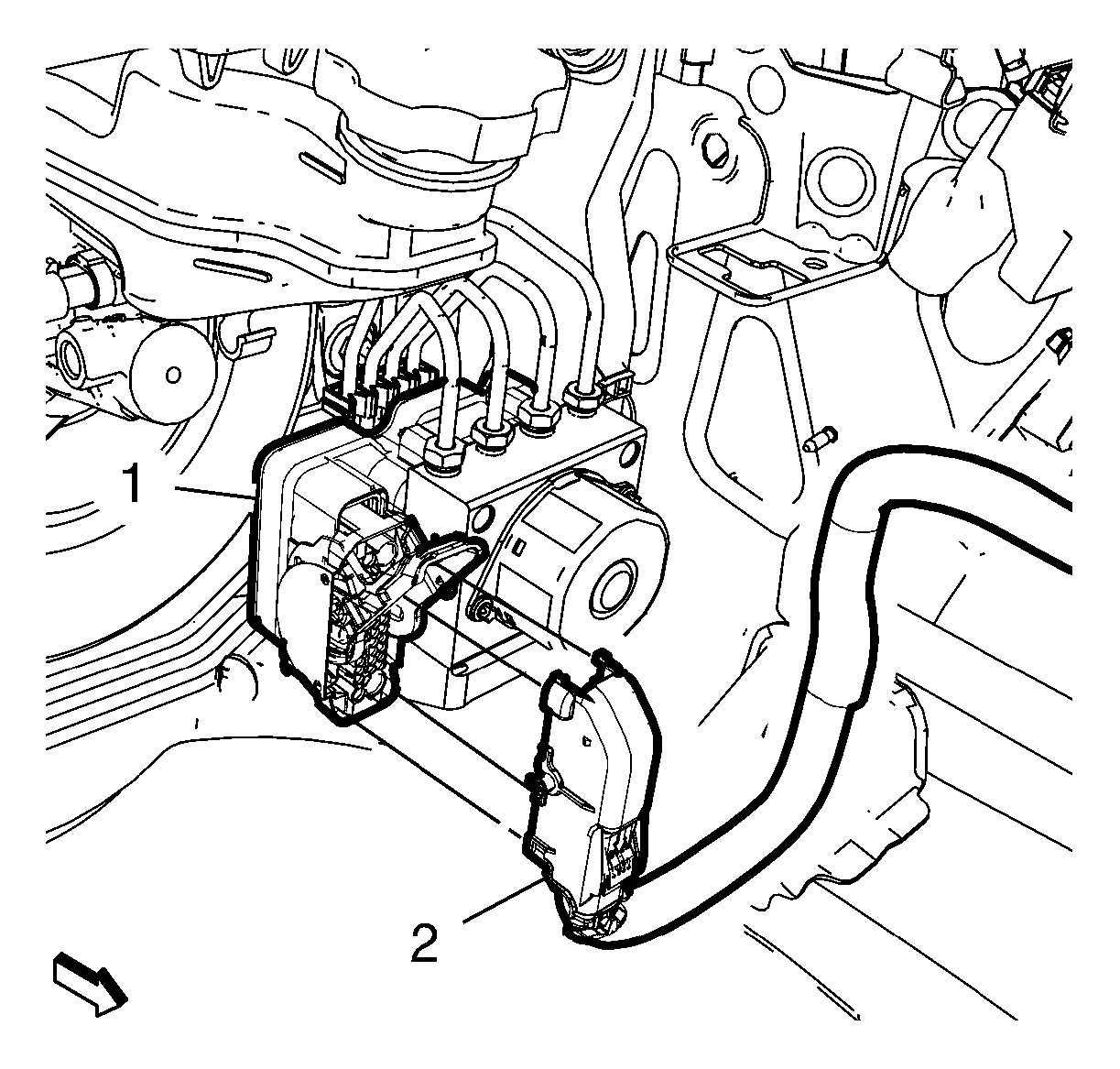

    5. Fig 2: Electronic Brake Control Module And Electrical Connector
    GM3655413Courtesy of GENERAL MOTORS COMPANY
  5. Connect Electrical Connector (2) @ Electronic Brake Control Module (1)
  6. Clip in wiring harness to brake pressure modulator valve bracket.

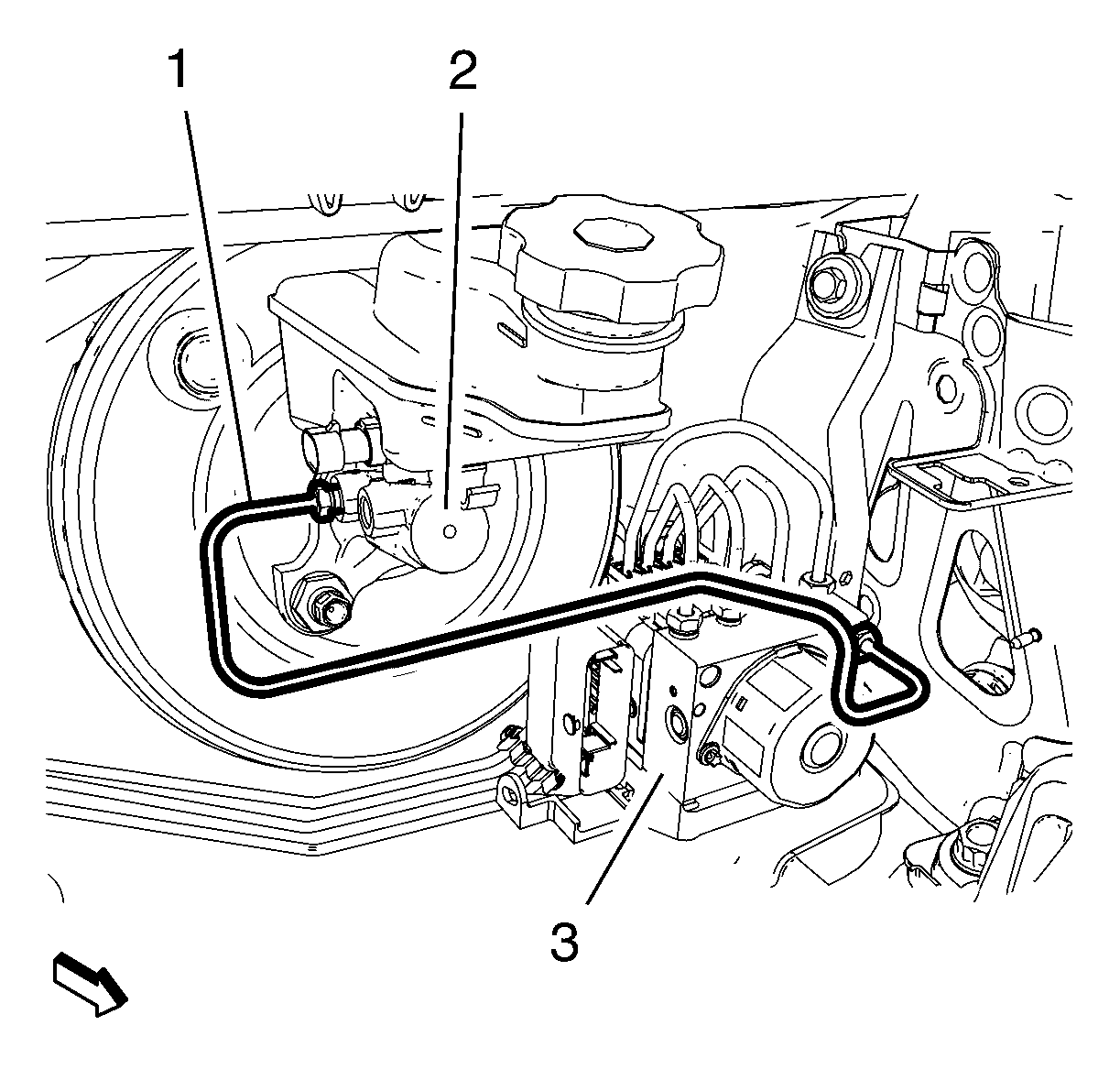

    7. Fig 3: Brake Pressure Modulator Valve And Primary Pipe
    GM3655396Courtesy of GENERAL MOTORS COMPANY
    WARNING:

    Make sure brake pipes are correctly connected to brake pressure modulator valve. If brake pipes are switched by mistake, wheel lockup will occur and personal injury may result. The only two ways this condition can be detected are by using a Scan Tool or by doing an Antilock stop.

  7. Install and tighten Brake Pressure Modulator Valve Primary Pipe (1) @ Brake Pressure Modulator Valve (3) to 20 N.m (15 lb ft)

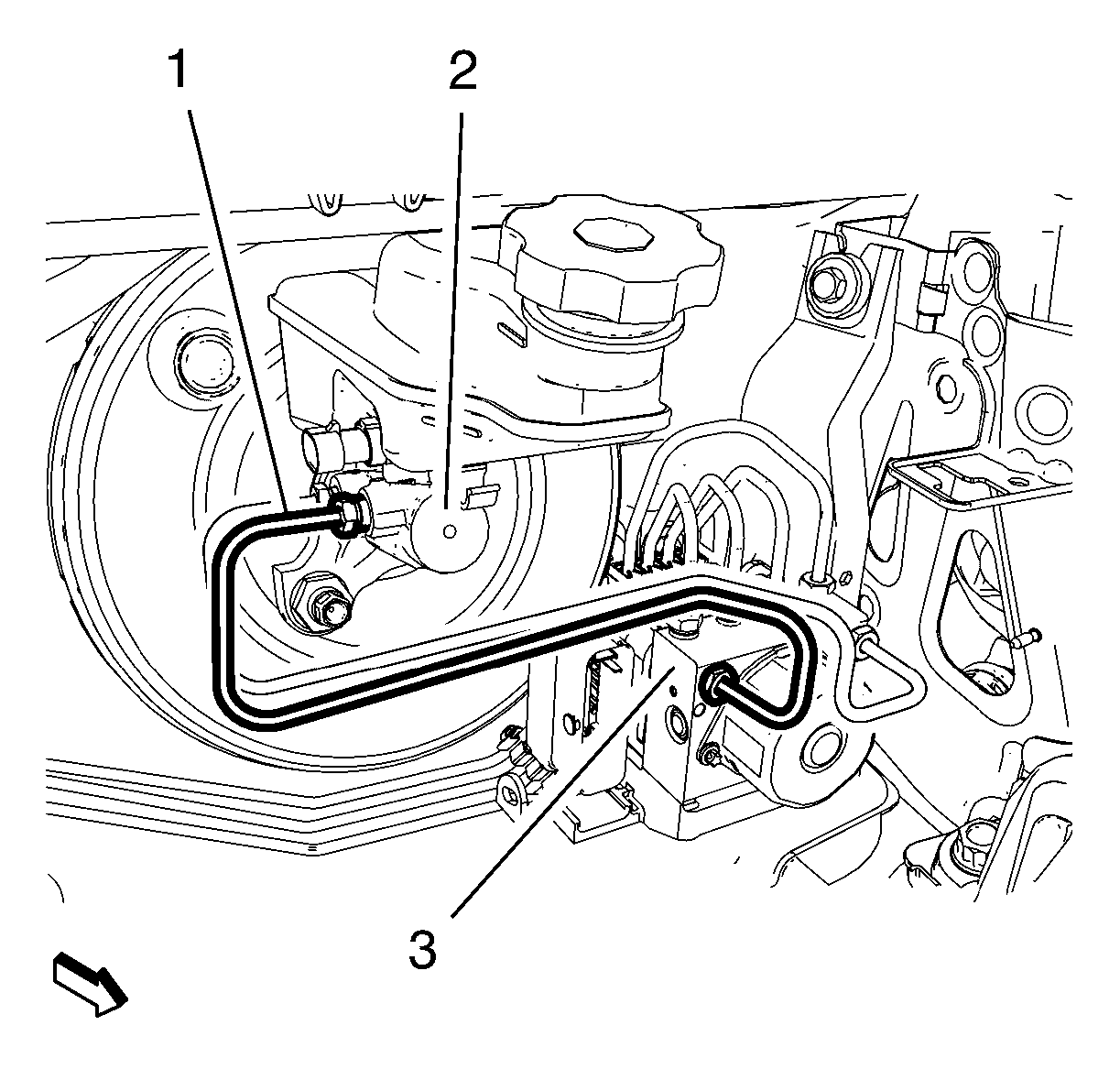

    8. Fig 4: Brake Pressure Modulator Valve And Secondary Pipe
    GM3655395Courtesy of GENERAL MOTORS COMPANY
    WARNING:

    Make sure brake pipes are correctly connected to brake pressure modulator valve. If brake pipes are switched by mistake, wheel lockup will occur and personal injury may result. The only two ways this condition can be detected are by using a Scan Tool or by doing an Antilock stop.

  8. Install and tighten Brake Pressure Modulator Valve Secondary Pipe (1) @ Brake Pressure Modulator Valve (3) to 20 N.m (15 lb ft)

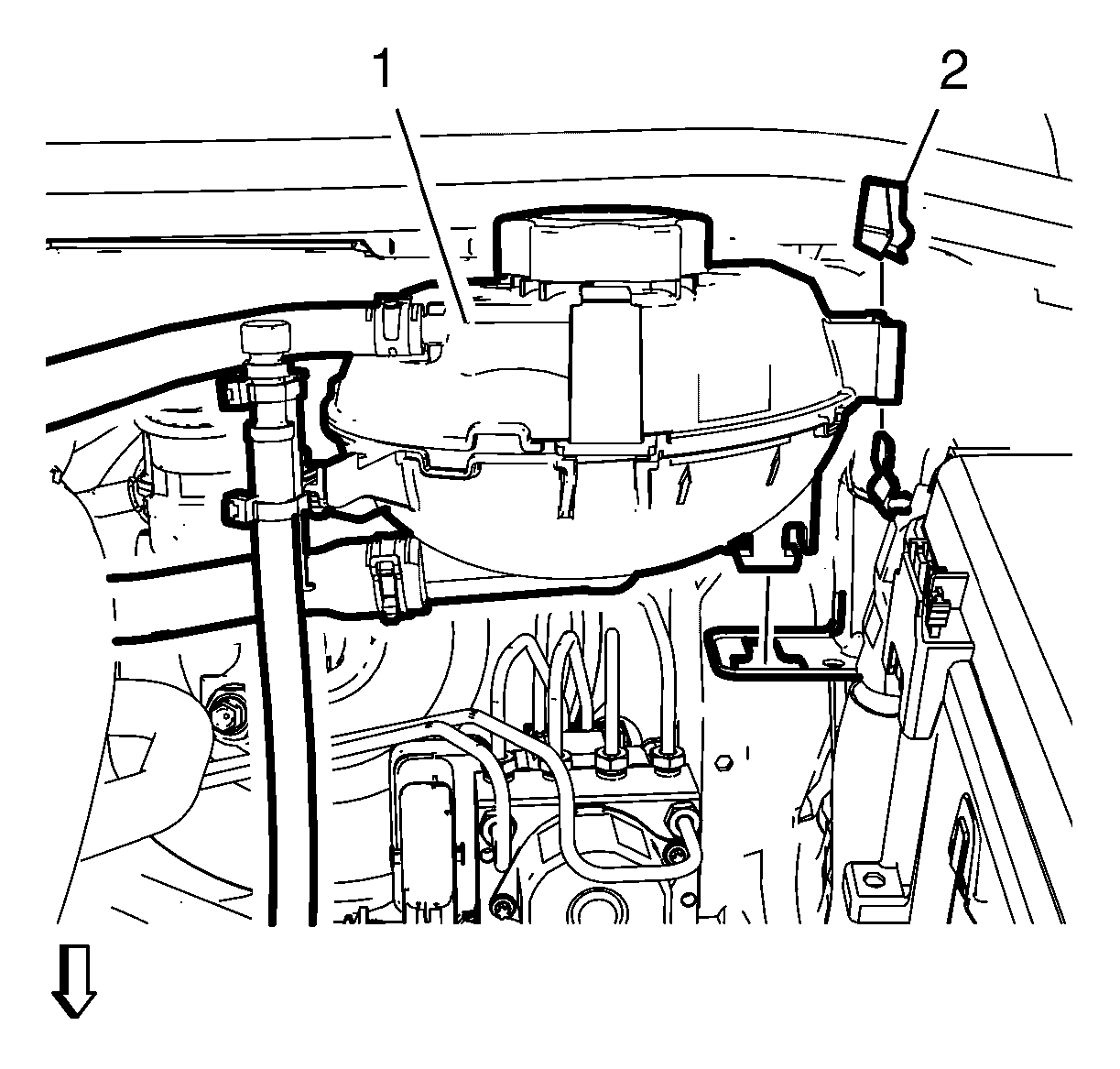

    9. Fig 5: Radiator Surge Tank And Bracket Clip
    GM3650415Courtesy of GENERAL MOTORS COMPANY
  9. Install Radiator Surge Tank (1)
  10. Install Radiator Surge Tank Bracket Clip (2)
  11. Install Dash Upper Extension Panel Opening Cover. Refer to Dash Upper Extension Panel Opening Cover Replacement
  12. Connect Battery Negative Cable. Refer to Battery Negative Cable Disconnection and Connection
  13. Re-program Electronic Brake Control Module. Refer to Electronic Brake Control Module Programming and Setup
  14. Bleed brake system. Refer to Hydraulic Brake System Bleeding
  15. Re-center Steering Wheel Angle Sensor. Refer to Steering Wheel Angle Sensor Centering
