Front Side Door Window Switch Replacement

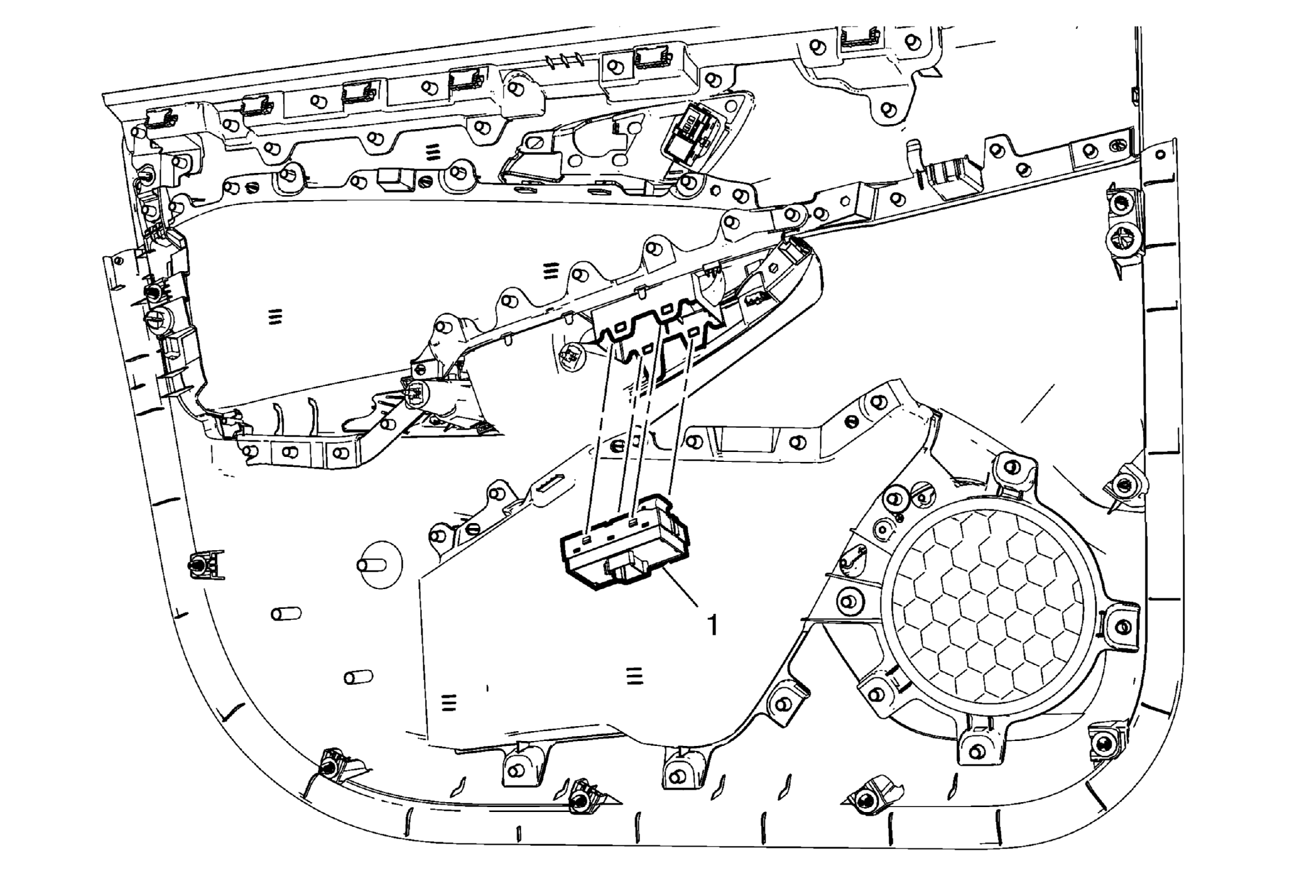

Fig 1: Front Side Door Window Switch
GM3657259Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Front Side Door Trim Replacement
1 Front Side Door Window Switch
Procedure
Retainer (Qty: 4)- Unclip
