Front Side Door Window Channel Front Retainer Replacement

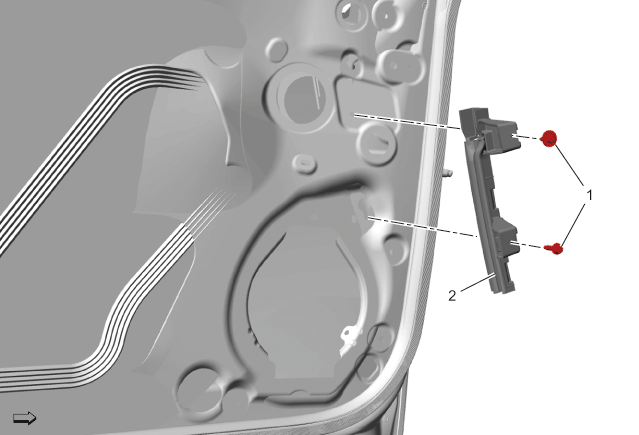

Fig 1: Front Side Door Window Channel Front Retainer

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Front Side Door Water Deflector Replacement
1	Front Side Door Window Channel Front Retainer Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten  11 N.m (97 lb in)
2	Front Side Door Window Channel Front Retainer Procedure  Transfer components as necessary.
