Outside Rearview Mirror Replacement

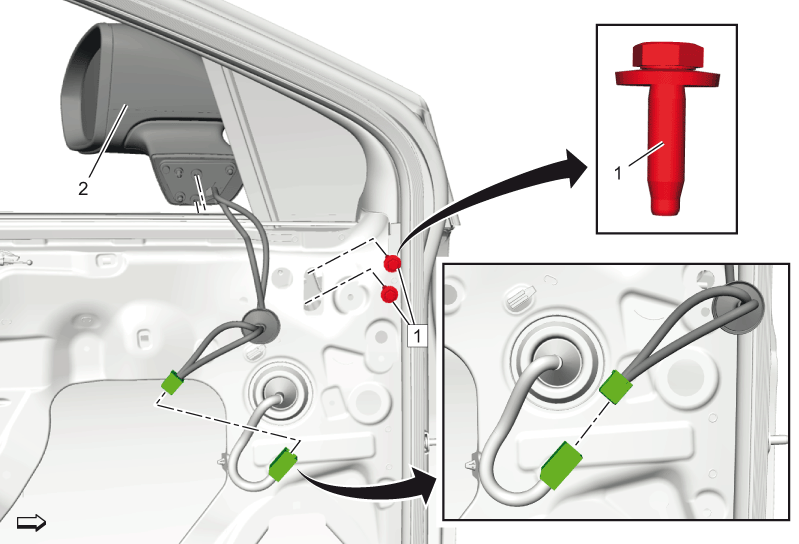

Fig 1: Outside Rearview Mirror

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Side Door Water Deflector Replacement
1	Outside Rearview Mirror Bolt (Qty: 2) CAUTION: Fastener Caution Tighten 9 N.m (80 lb in)
2	Outside Rearview Mirror Procedure Disconnect the electrical connector.
