Removal Procedure

  1. Disconnect Battery Negative Cable. Refer to Battery Negative Cable Disconnection and Connection
  2. Remove Steering Column Lower Trim Cover. Refer to Steering Column Lower Trim Cover Replacement

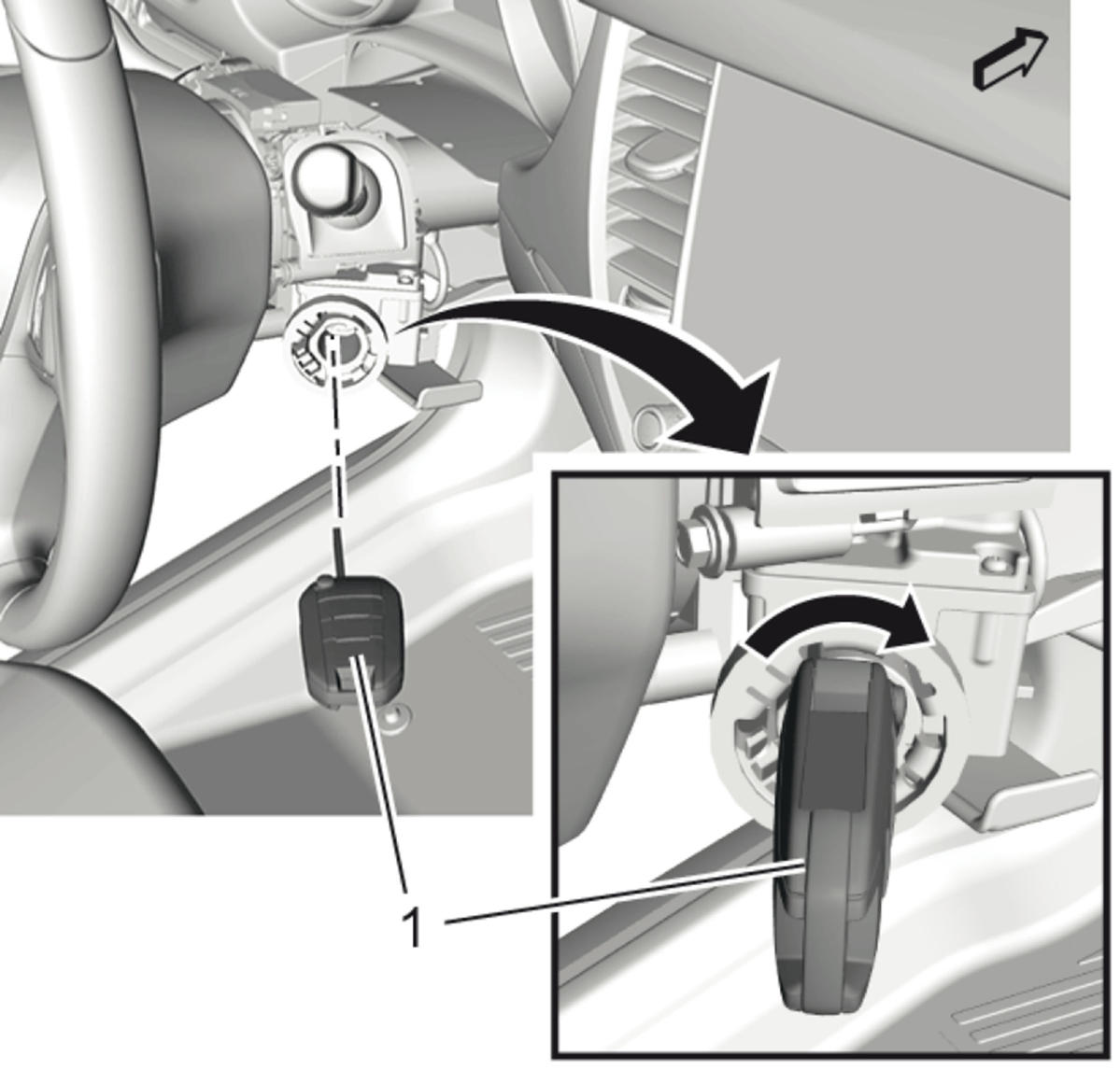

    3. Fig 1: Ignition Key
    GM4573050Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    The ignition key switch is not removable when the ignition is OFF.

  3. Insert the ignition key into the ignition (1) key cylinder and turn the ignition key (1) to position RUN.

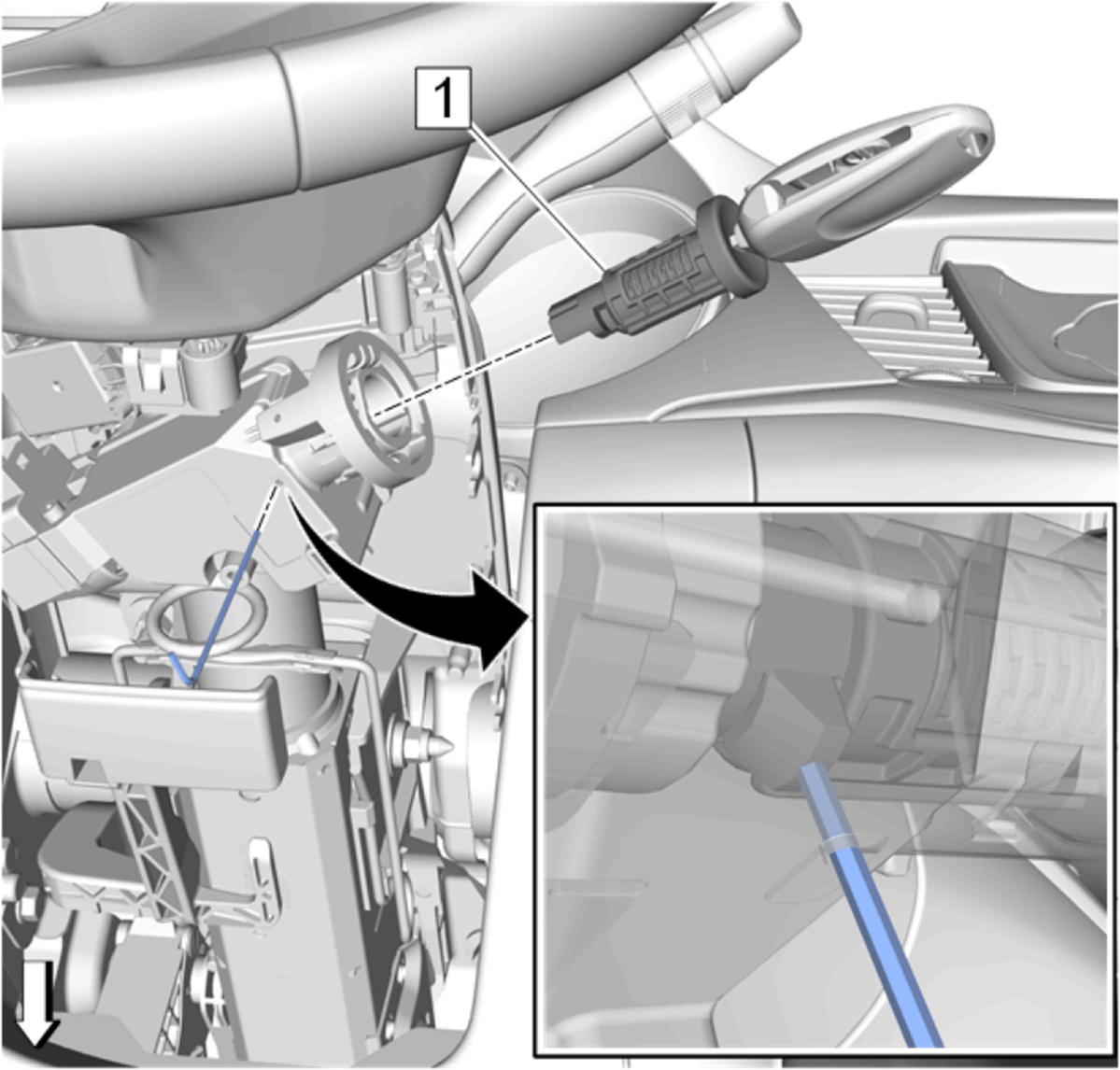

    4. Fig 2: Depressing Retainer Through Lock Housing Access Hole
    GM4604794Courtesy of GENERAL MOTORS COMPANY
  4. Depress the retainer through the lock housing access hole with a small allen wrench or similar pick-type tool.
  5. Remove Ignition Lock Cylinder (1)

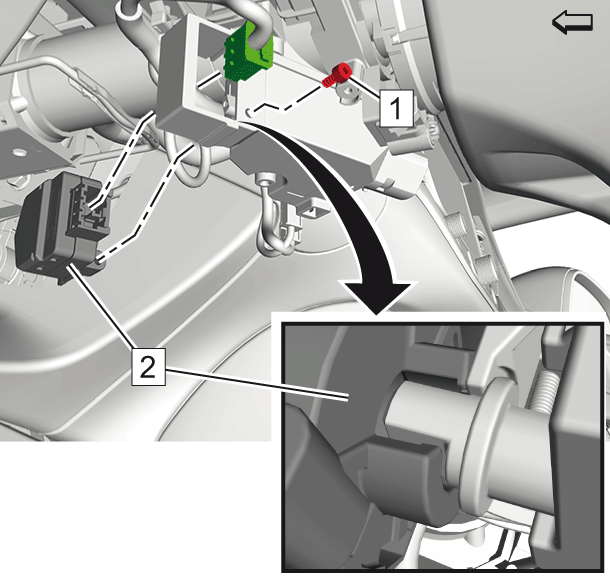

    6. Fig 3: Ignition and Start Switch With Bolt
    GM4573051Courtesy of GENERAL MOTORS COMPANY
  6. Remove Ignition and Start Switch Bolt (1)
  7. Remove Ignition and Start Switch (2)

    Disconnect the electrical connector.
