Remote Control Door Lock Receiver Replacement (Hatchback)

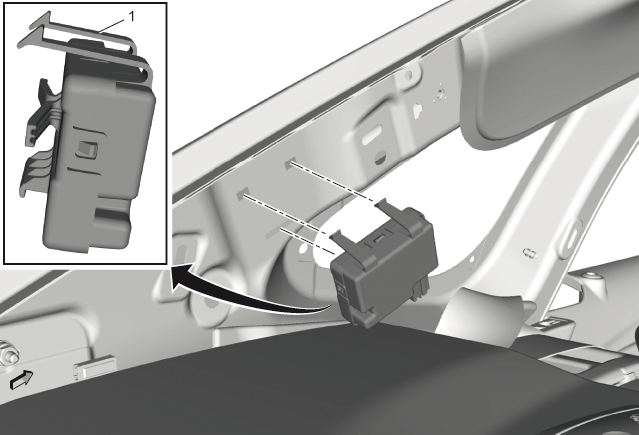

Fig 1: Remote Control Door Lock Receiver (Hatchback)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Body Lock Pillar Upper Trim Panel. Refer to Body Lock Pillar Upper Trim Panel Replacement
1	Remote Control Door Lock Receiver Procedure Loosen Retainer (Qty: 2) Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedure
Remove Body Lock Pillar Upper Trim Panel. Refer to Body Lock Pillar Upper Trim Panel Replacement

Remote Control Door Lock Receiver

Procedure
