Ignition Lock Key Transmitter Antenna Replacement - Rear Compartment

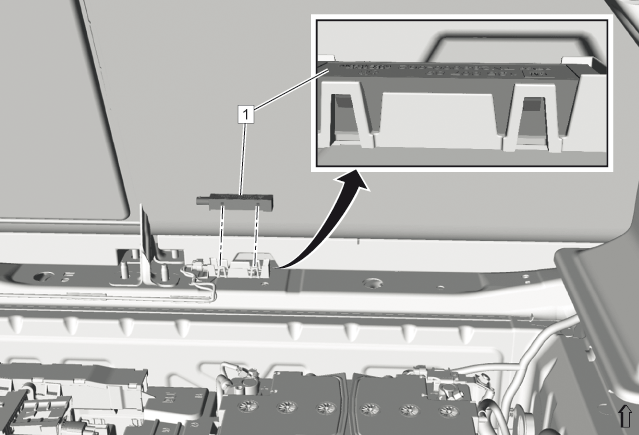

Fig 1: Ignition Lock Key Transmitter Antenna - Rear Compartment
GM4084554Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Ignition Lock Key Transmitter Antenna - Rear Compartment

Procedure

  1. Remove the rear compartment floor panel trim.
  2. Release the plastic retaining tabs.
  3. Disconnect the electrical connector.
