Ignition Lock Key Transmitter Antenna Replacement - Instrument Panel

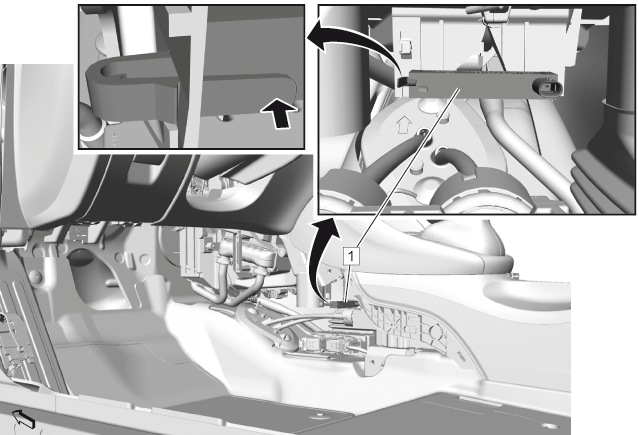

Fig 1: Ignition Lock Key Transmitter Antenna - Instrument Panel

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Floor Air Outlet. Refer to Floor Air Outlet Replacement
1	Ignition Lock Key Transmitter Antenna Procedure Loosen Retainer Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedure
Remove Floor Air Outlet. Refer to Floor Air Outlet Replacement

Ignition Lock Key Transmitter Antenna

Procedure
