Ignition Lock Key Transmitter Antenna Replacement - Floor Console

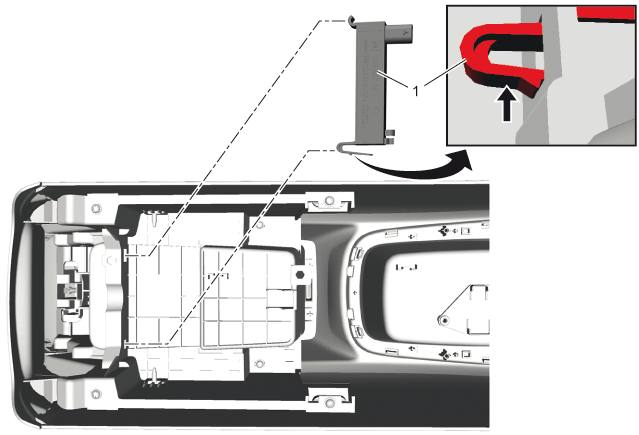

Fig 1: Ignition Lock Key Transmitter Antenna - Floor Console

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove Front Floor Console Rear Trim Panel. Refer to Front Floor Console Rear Trim Panel Replacement (Base)Front Floor Console Rear Trim Panel Replacement (Up Level)
1	Ignition Lock Key Transmitter Antenna - Floor Console Procedure Loosen Retainer Disconnect the electrical connector.

Callout

Component Name

Ignition Lock Key Transmitter Antenna - Floor Console

Procedure
