Home >> Chevrolet >> 2017 >> Cruze L >> Repair and Diagnosis >> Accessories & Equipment >> Drivers Assistance Systems - ADAS >> Object Detection System And Pedestrian Protection System >> Schematic Wiring Diagrams >> Object Detection Wiring Schematics >> Power, Ground, Serial Data, and Controls

Power, Ground, Serial Data, and Controls

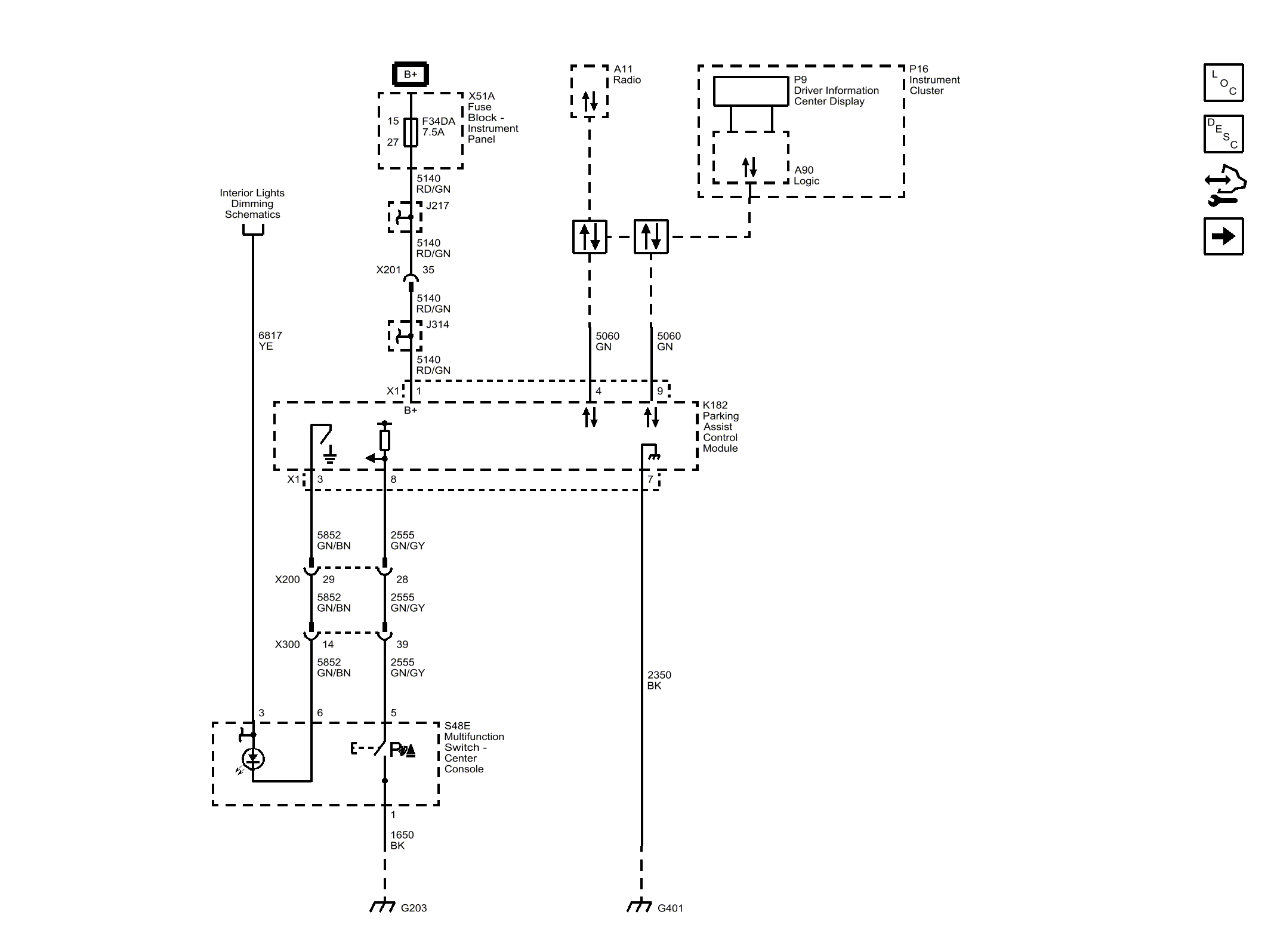

Fig 1: Power, Ground, Serial Data, and Controls

GM4335050

Courtesy of GENERAL MOTORS COMPANY
