Cruise Control Switch Replacement

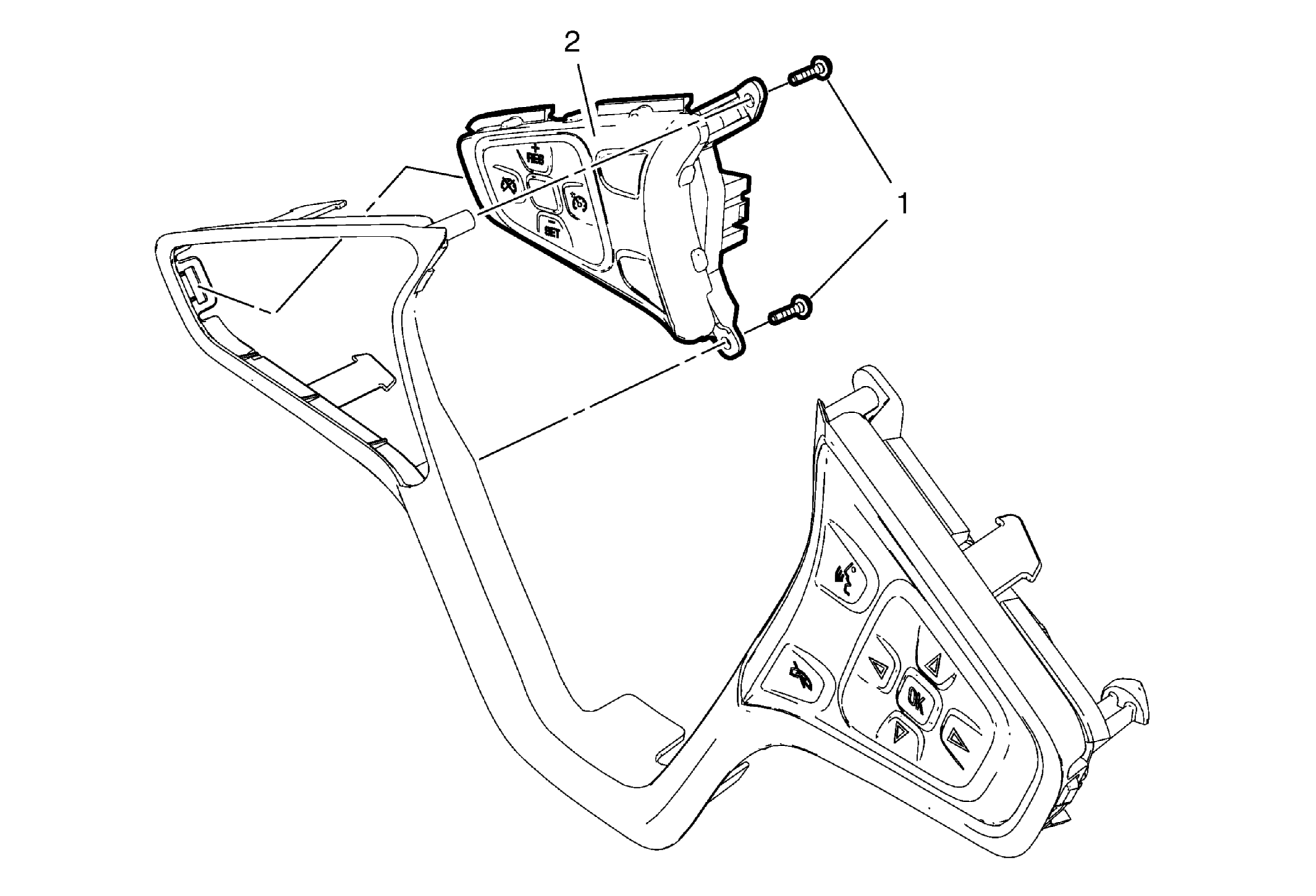

Fig 1: Cruise Control Switch
GM3686264Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove Steering Wheel Spoke Lower Cover. Refer to Steering Wheel Spoke Lower Cover Replacement
1 Steering Wheel Lower Cover Bolt (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten:
0.8 N.m (7.1 lb in)
2 Cruise Control Switch
Procedure
Disconnect the electrical connector.
