Human Machine Interface and Display, Power, Ground, Serial Data (IO5 or IO6)
Human Machine Interface and Display, Power, Ground, Serial Data (IO5 or IO6)

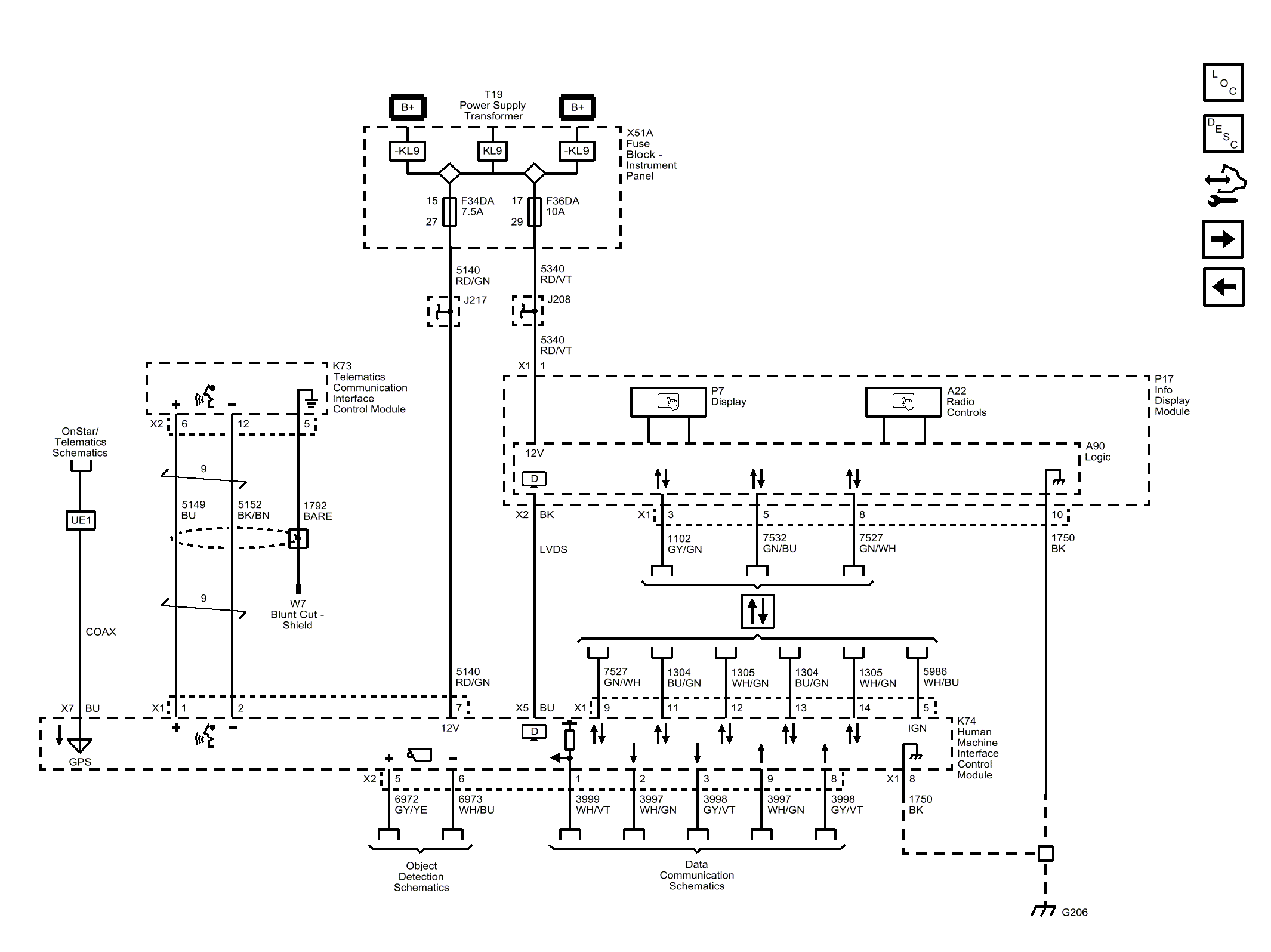

Fig 1: Human Machine Interface and Display, Power, Ground, Serial Data (IO5 or IO6)
Courtesy of GENERAL MOTORS COMPANY
