Fuel Feed Intermediate Hose Replacement

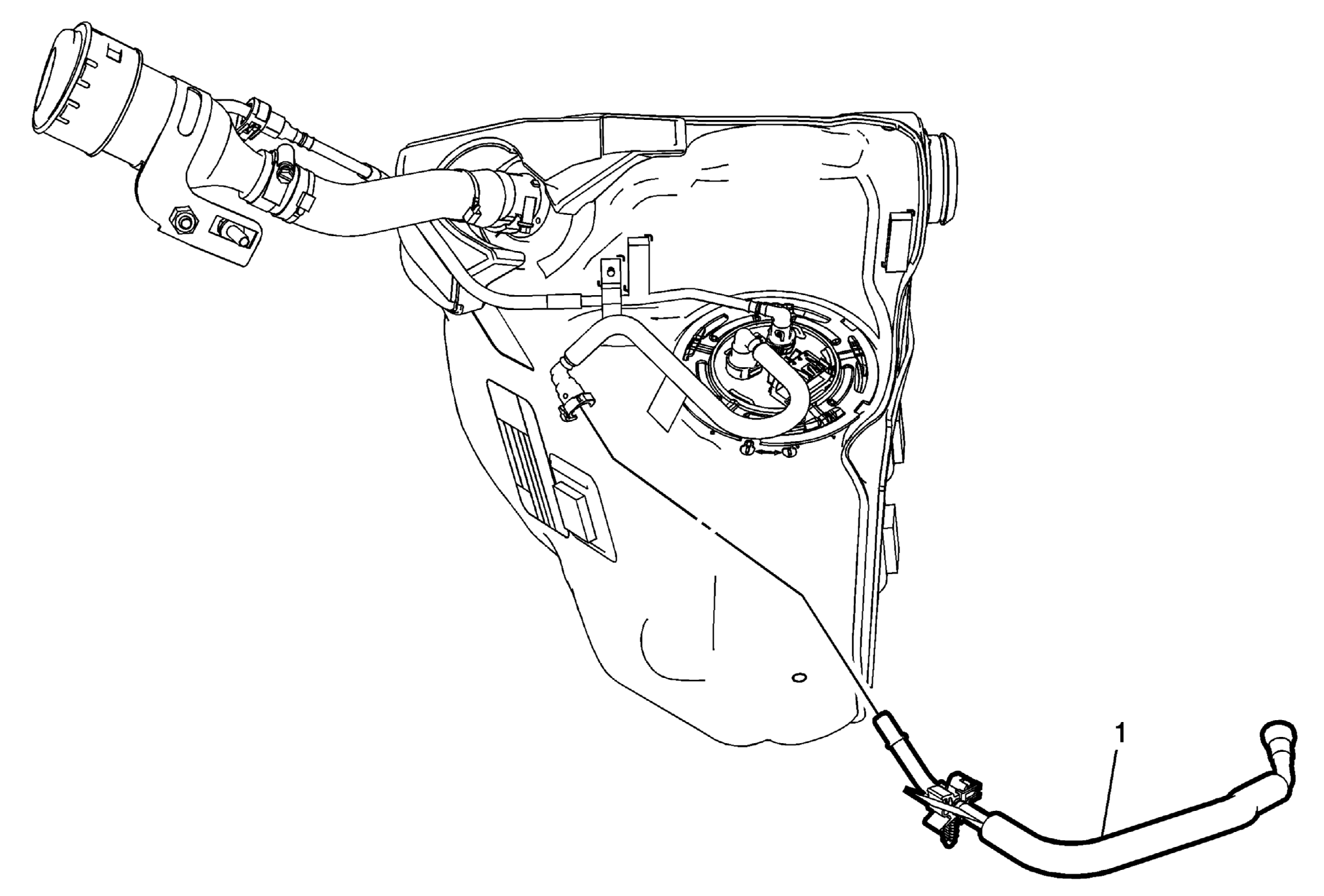

Fig 1: Fuel Feed Intermediate Hose

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the left side fuel tank. Refer to Fuel Tank Replacement - Left Side .
1	Fuel Feed Intermediate Hose Procedure  Disconnect the fuel feed intermediate hose from the fuel feed hose. Refer to Plastic Collar Quick Connect Fitting Service .
