Engine Coolant Temperature Sensor Replacement (LT1)

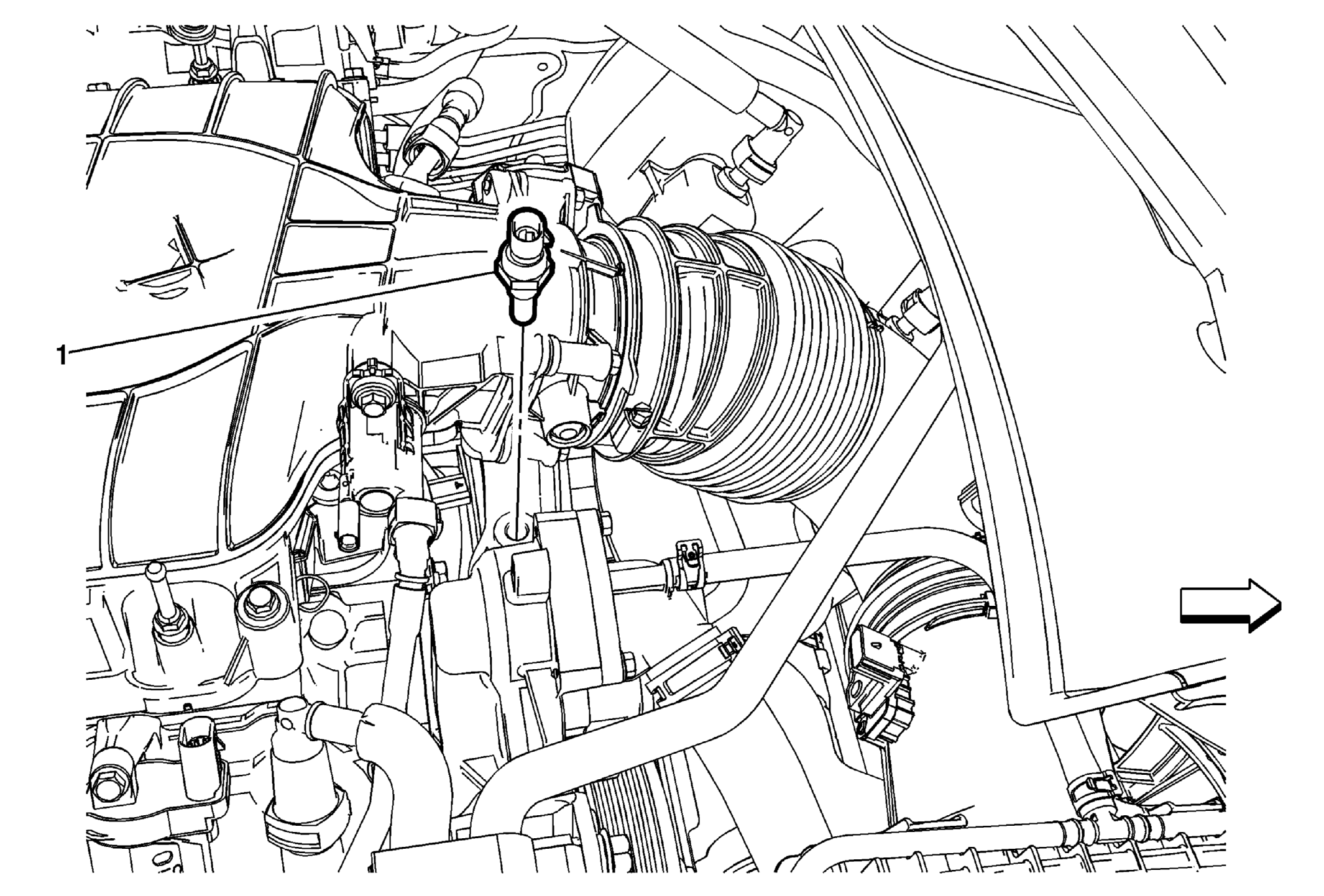

Fig 1: Engine Coolant Temperature Sensor (LT1)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the upper intake manifold cover. Refer to Upper Intake Manifold Cover Replacement . Drain the engine coolant. Refer to Cooling System Draining and Filling (Static Fill)Cooling System Draining and Filling (GE 47716) .
1	Engine Coolant Temperature Sensor CAUTION: Refer to Component Fastener Tightening Caution . Procedure Disconnect the electrical connector from the engine coolant temperature sensor. Tighten 20 N.m (15 lb ft)

Callout

Component Name

Preliminary Procedure

Engine Coolant Temperature Sensor

CAUTION:

Procedure
Disconnect the electrical connector from the engine coolant temperature sensor.
Tighten
20 N.m (15 lb ft)
