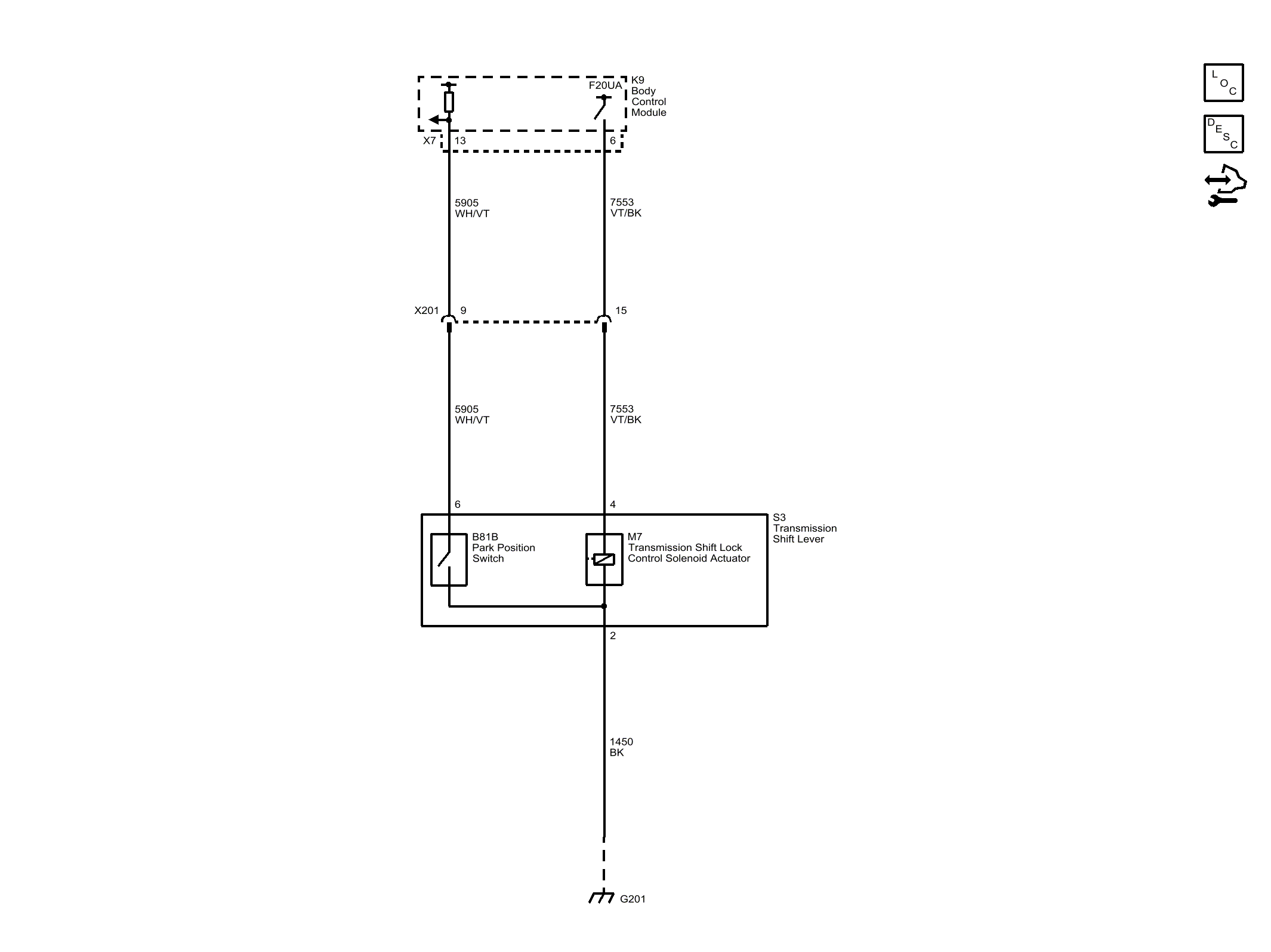

Home >> Chevrolet >> 2017 >> Corvette Z06, 2D Convertible, Automatic Trans >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Shift Lock Control System >> Schematic Wiring Diagrams >> Shift Lock Control Wiring Schematics >> Shift Lock (M5U)
