Front Seat Belt Guide Replacement

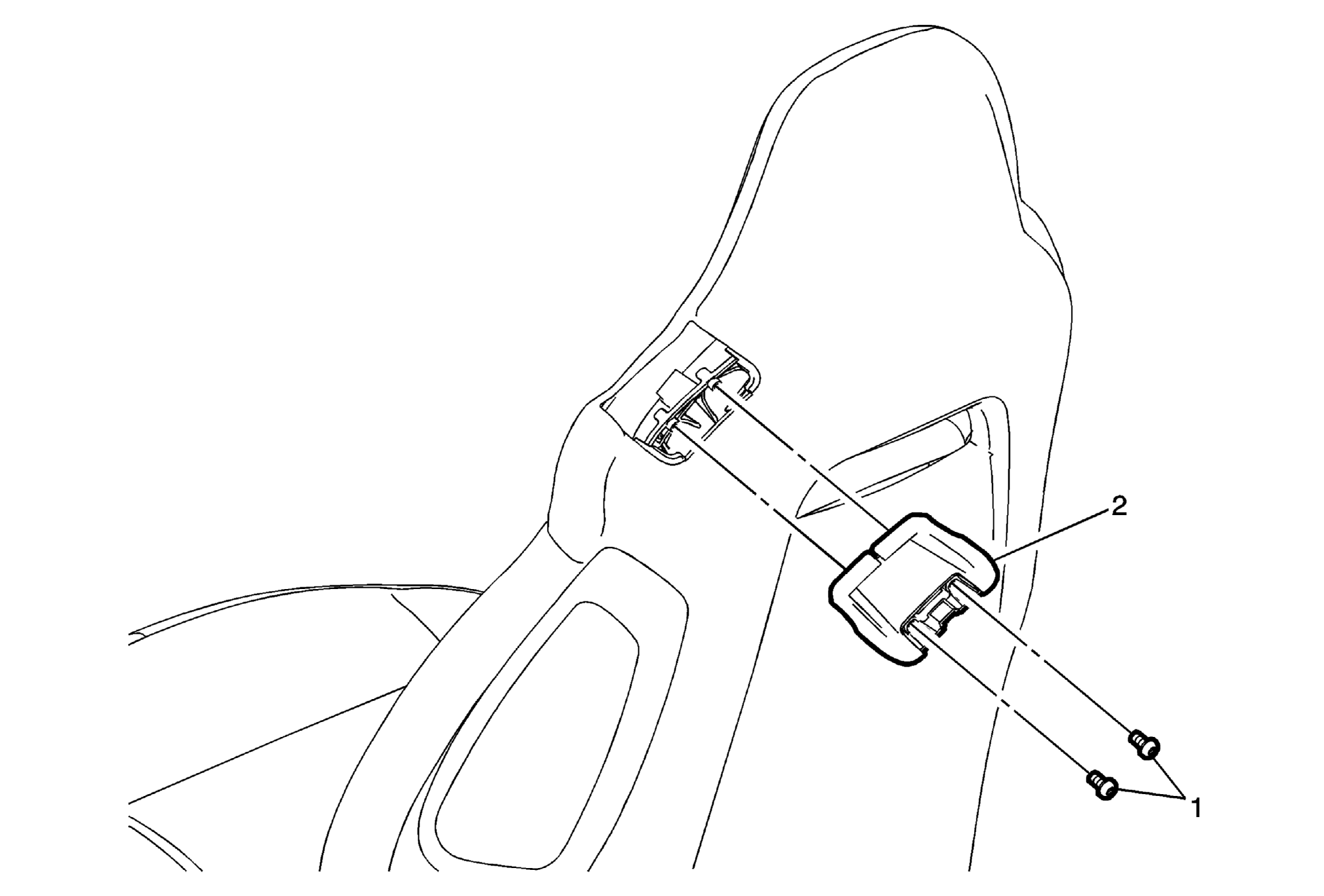

Fig 1: Front Seat Belt Guide
GM3392062Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the front seat belt guide cap. Refer to Front Seat Belt Guide Bolt Cap Replacement .
1 Front Seat Belt Guide Fastener
CAUTION:

Refer to Fastener Caution .


Tighten
2.3 N.m (20 lb in)
2 Front Seat Belt Guide
Procedure
Disengage the front seat belt guide by pushing the guide forward towards the front of the seat.
