Removal Procedure

  1. Remove the left fuel tank. Refer to Fuel Tank Replacement - Left Side .

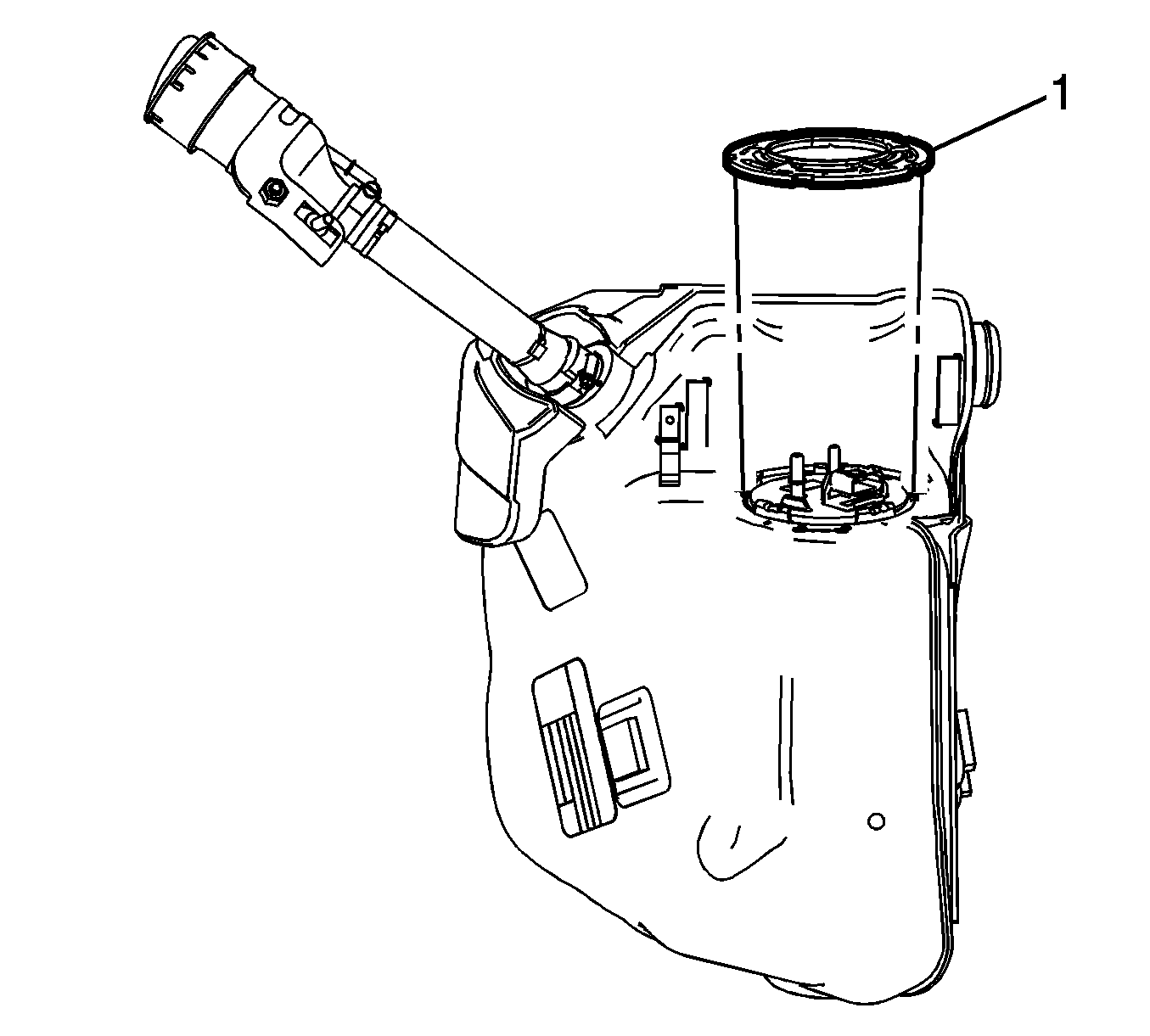

    2. Fig 1: Fuel Pump Module Locking Ring
    GM3415307Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    The fuel pump module is spring loaded and will spring upward when the locking ring is removed.

  2. Using the CH-48482  lock ring tool, turn the fuel pump module locking ring (1) counterclockwise and remove lock ring.

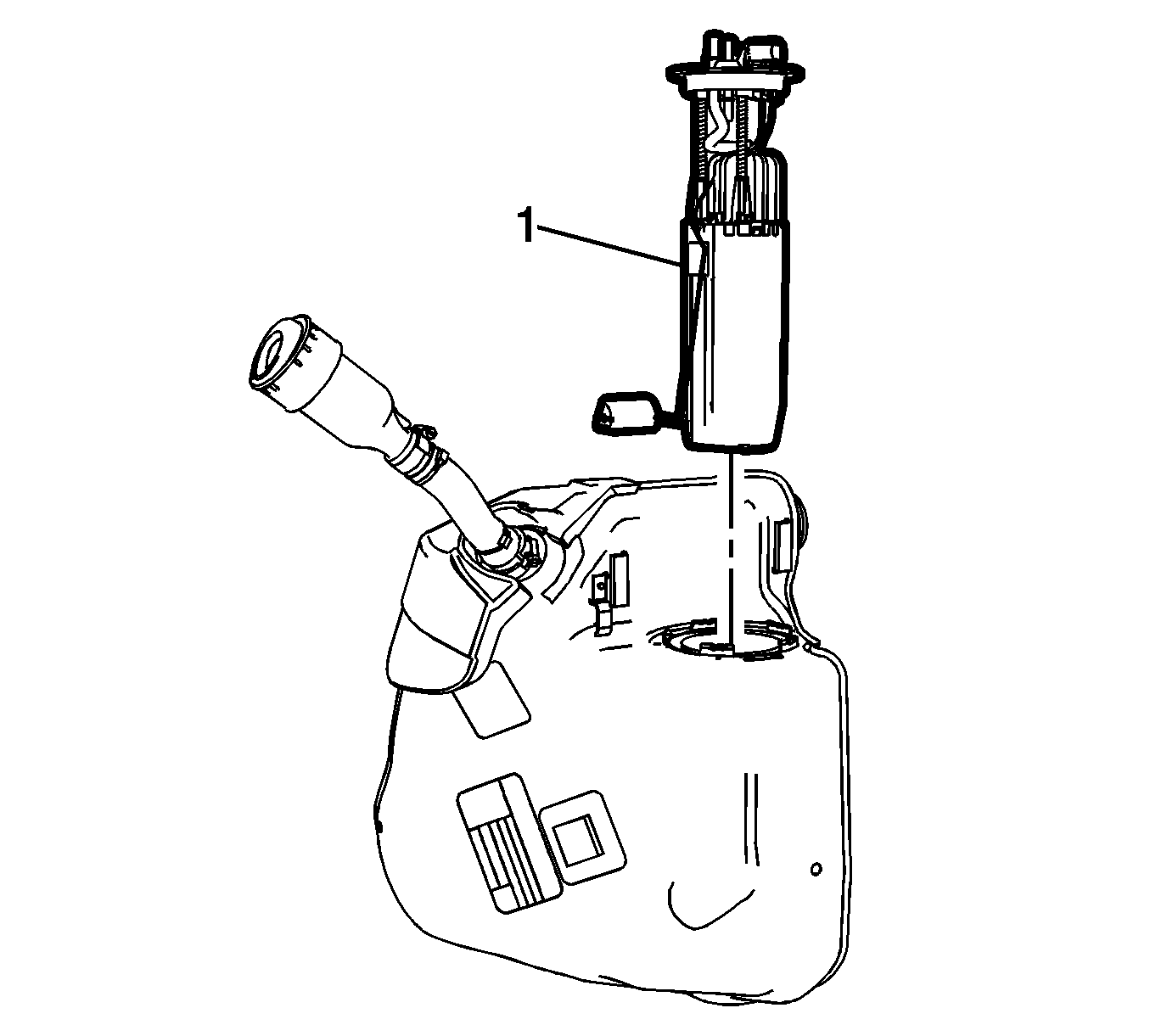

    3. Fig 2: Fuel Tank Fuel Pump Module
    GM3415306Courtesy of GENERAL MOTORS COMPANY
  3. Lift the fuel tank fuel pump module (1) carefully to disconnect the lines from the fuel tank fuel pump module (1) inside the tank.
  4. Remove the fuel tank fuel pump module (1) from the tank.
