Fuel Pump Power Control Module Replacement

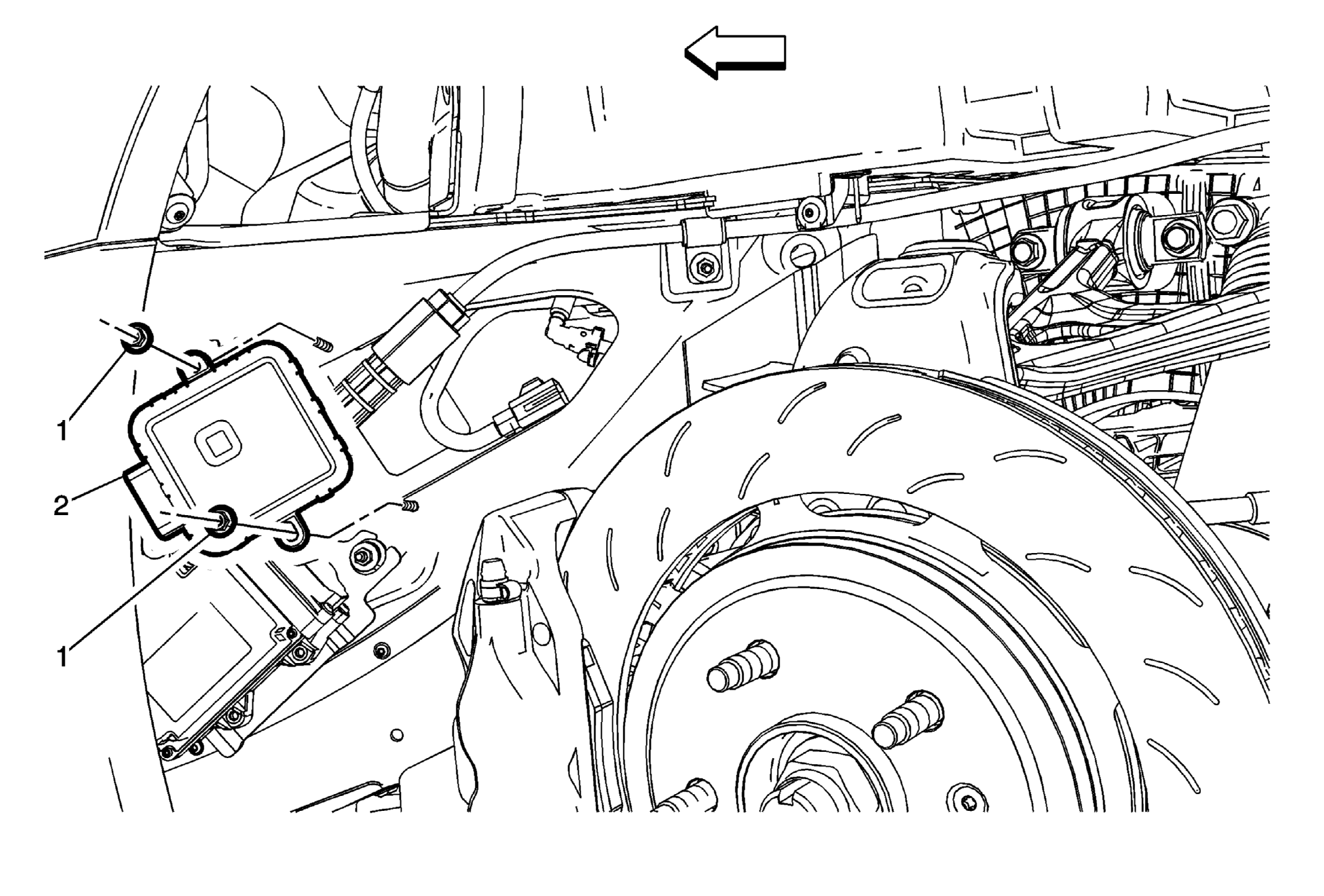

Fig 1: Fuel Pump Power Control Module
GM3404600Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Remove the rear wheelhouse liner. Refer to Rear Wheelhouse Liner Replacement .
  2. Remove the park brake module harness retainer.
  3. Remove the park brake module fasteners in order to reposition the park brake module. Refer to Electronic Parking Brake Control Module Replacement .
1 Fuel Pump Power Control Module Fasteners (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
9 N.m (80 lb in)
2 Fuel Pump Power Control Module

Procedure

  1. Disconnect the fuel pump power control module electrical connector.
  2. If replacing fuel pump power control module, program the control module. Refer to Control Module References
