Fuel Pressure Sensor Replacement

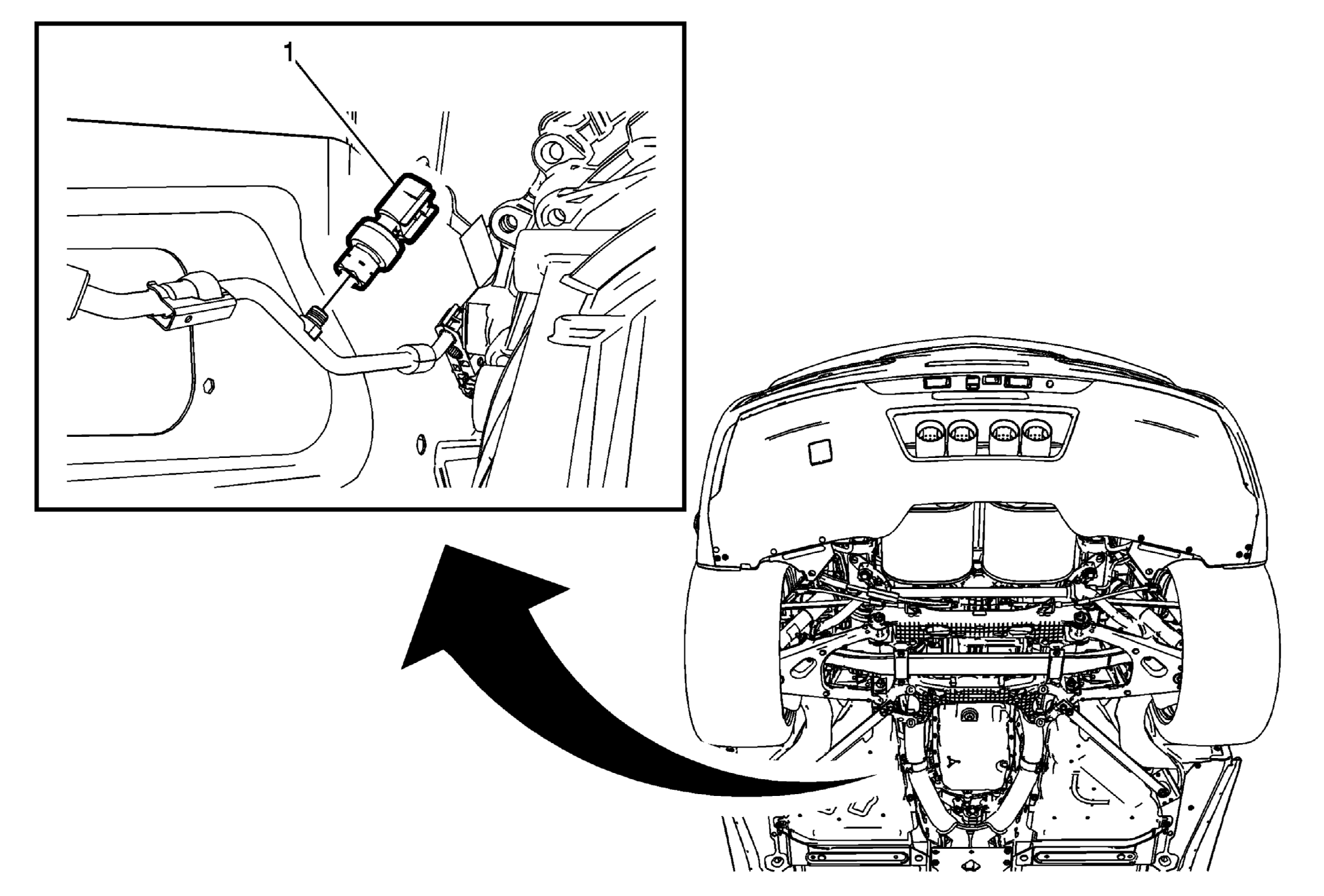

Fig 1: Fuel Pressure Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Relieve the fuel system pressure. Refer to Fuel Pressure Relief . Remove the left muffler. Refer to Exhaust Muffler Replacement - Left Side .
1	Fuel Pressure Sensor CAUTION: Refer to Component Fastener Tightening Caution . Procedure Disconnect the electrical connector. Use a NEW O-ring whenever the sensor is removed. Tighten 10 N.m (89 lb in)

Callout

Component Name

Preliminary Procedure

Fuel Pressure Sensor

CAUTION:

Procedure

Tighten
10 N.m (89 lb in)
