Fuel Level Sensor Replacement (Fuel Tank Fuel Pump Module)

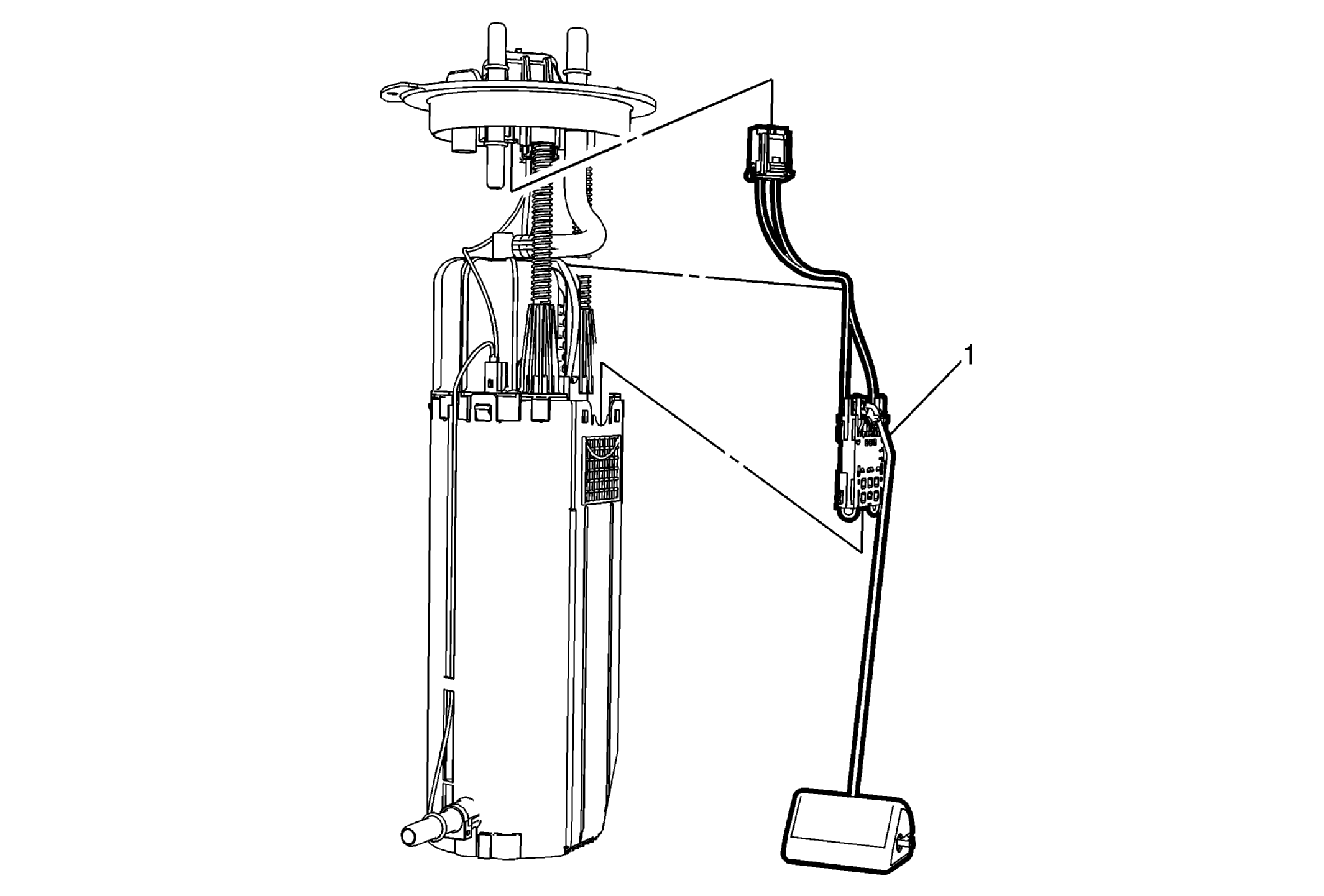

Fig 1: Fuel Level Sensor (Fuel Tank Fuel Pump Module)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the fuel tank fuel pump module. Refer to Fuel Tank Fuel Pump Module Replacement .
1	Fuel Level Sensor Procedure Disconnect the electrical connector from the module. Push in the lock tabs above the level sensor body and slide the level sensor out of the slot.

Callout

Component Name

Preliminary Procedure
Remove the fuel tank fuel pump module. Refer to Fuel Tank Fuel Pump Module Replacement .

Fuel Level Sensor

Procedure

Disconnect the electrical connector from the module.
Push in the lock tabs above the level sensor body and slide the level sensor out of the slot.
