Chassis Control Module Replacement

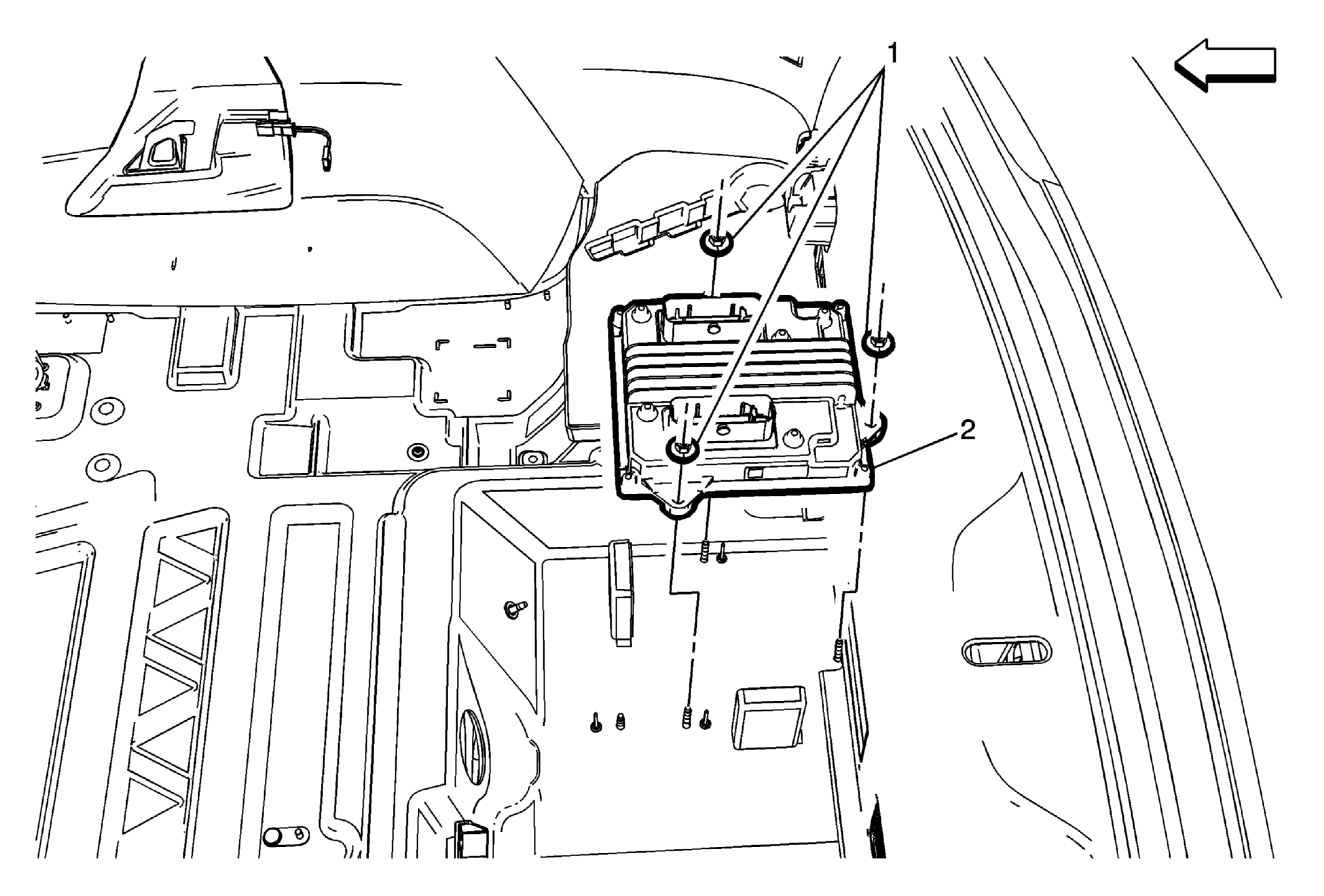

Fig 1: Chassis Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear compartment floor panel trim. Refer to Rear Compartment Floor Panel Trim Replacement (North America)Rear Compartment Floor Panel Trim Replacement (Export - CU9, CV5, CZ3, C4E) . Disconnect the chassis control module electrical connector.
1	Chassis Control Module Fasteners (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 6 N.m (53 lb in)
2	Chassis Control Module Procedure If replacing chassis control module, program the control module. Refer to Control Module References

Callout

Component Name

Preliminary Procedure

Chassis Control Module Fasteners (Qty: 3)

CAUTION:

Tighten
6 N.m (53 lb in)

Chassis Control Module
Procedure
If replacing chassis control module, program the control module. Refer to Control Module References
