Removal Procedure

WARNING:

Refer to Brake Dust Warning .

  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .

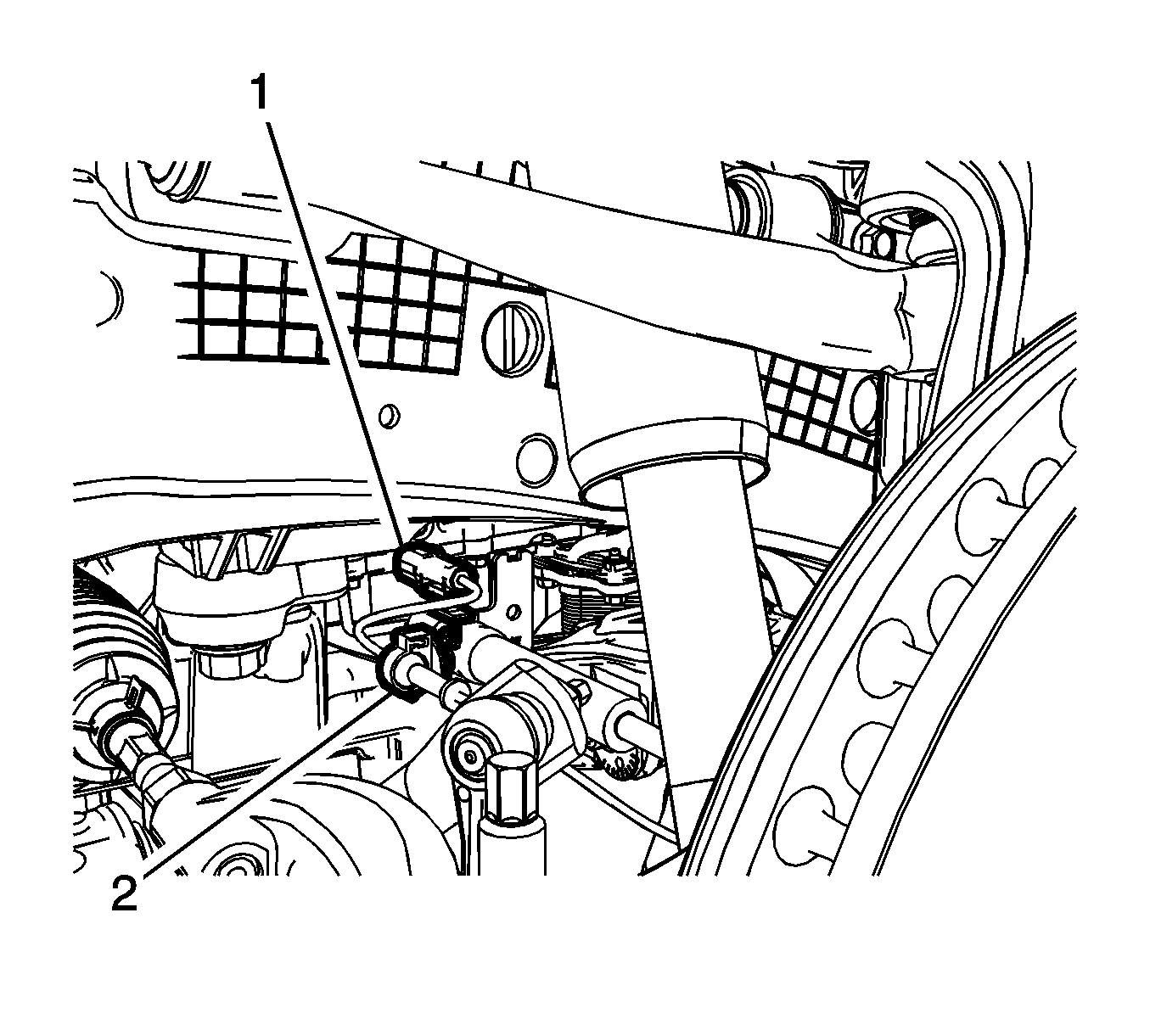

    3. Fig 1: Wheel Speed Sensor Electrical Connector And Release Connector
    GM3319435Courtesy of GENERAL MOTORS COMPANY
  3. Disconnect the wheel speed sensor electrical connector and release the connector (1) from the front brake hose bracket.
  4. Release the wheel speed sensor harness from the front brake hose bracket clip (2).

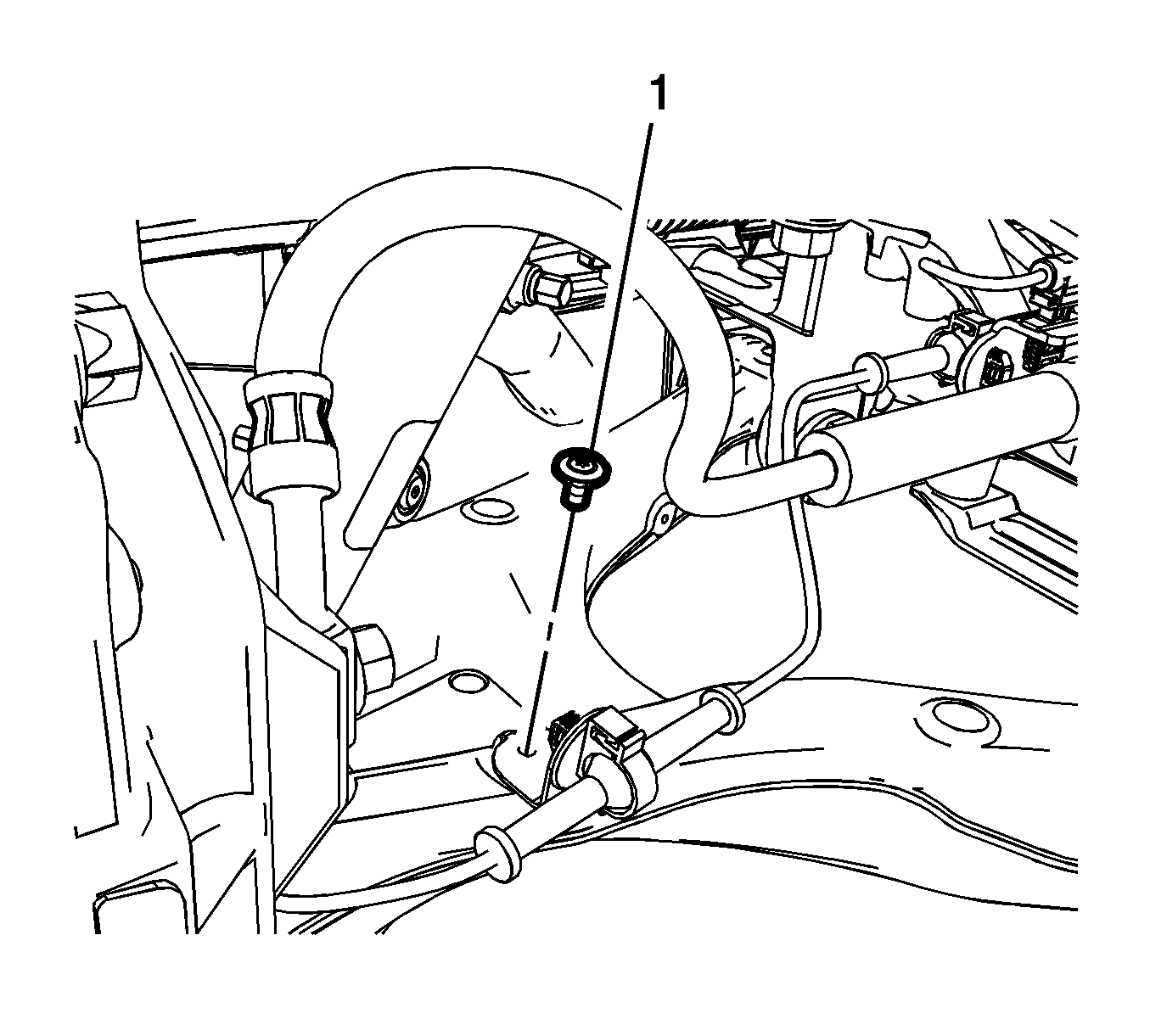

    5. Fig 2: Wheel Speed Sensor Harness Bracket Bolt
    GM3319437Courtesy of GENERAL MOTORS COMPANY
  5. Remove the wheel speed sensor harness bracket bolt (1) from the lower control arm.

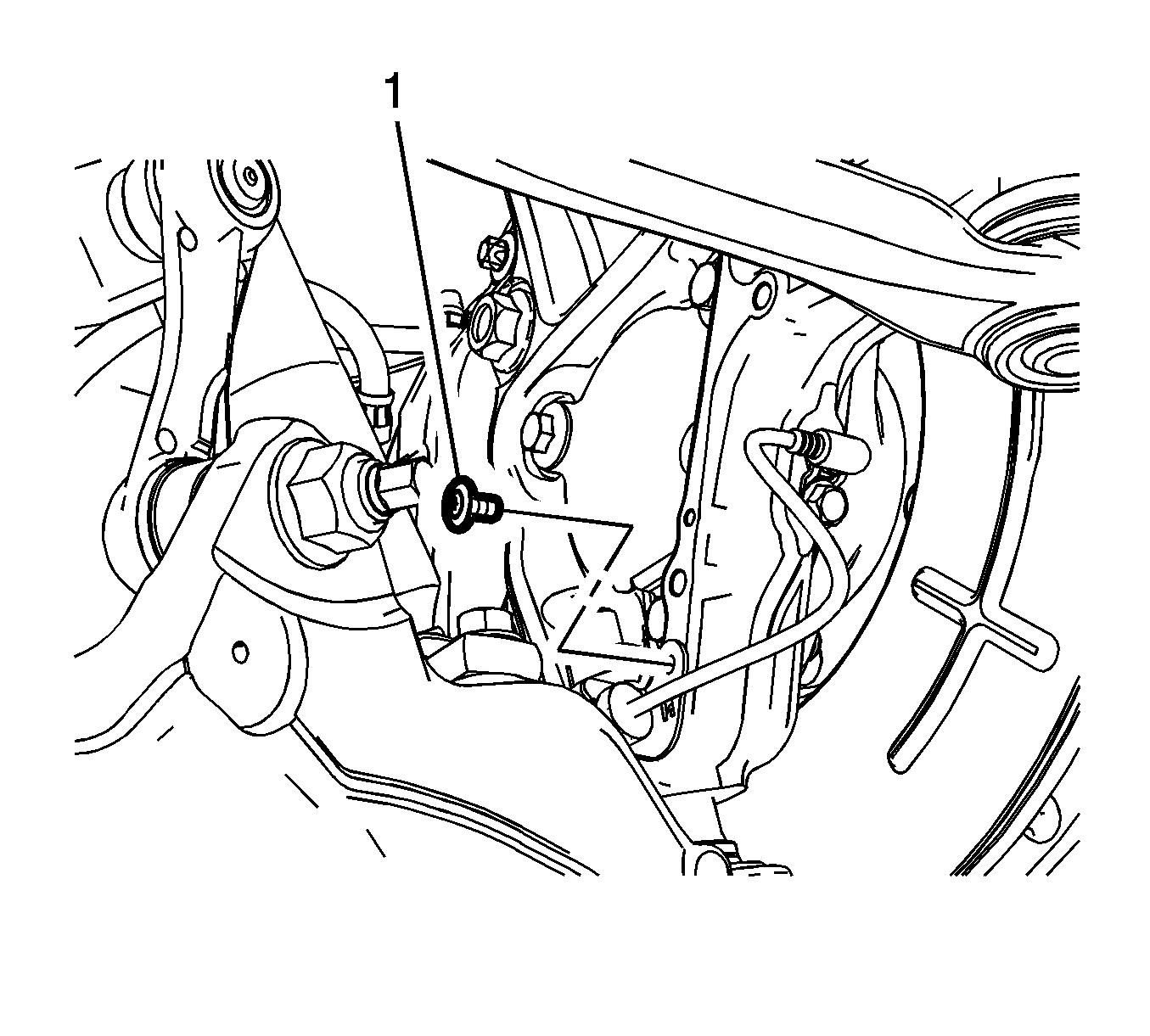

    6. Fig 3: Wheel Speed Sensor Harness Bracket Bolt
    GM3319438Courtesy of GENERAL MOTORS COMPANY
  6. Remove the wheel speed sensor harness bracket bolt (1) from the steering knuckle.
  7. Thoroughly clean the steering knuckle area surrounding the wheel speed sensor of any accumulated dirt and debris.

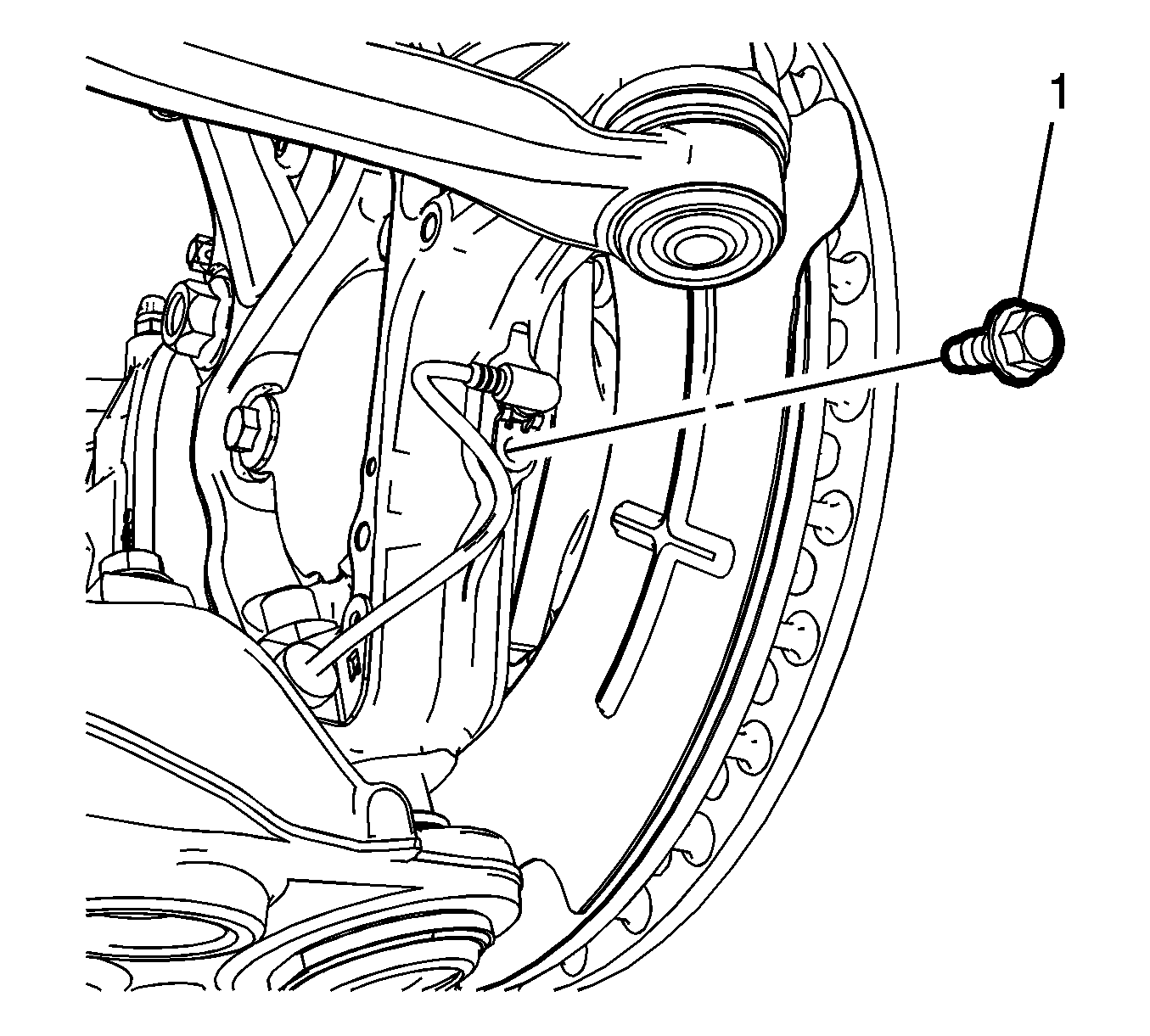

    8. Fig 4: Front Wheel Speed Sensor Bolt
    GM3319440Courtesy of GENERAL MOTORS COMPANY
  8. Remove the front wheel speed sensor bolt (1).
  9. Carefully pull the wheel speed sensor straight outward from the steering knuckle and remove the wheel speed sensor.
