Digital Radio Transceiver Module Antenna Replacement

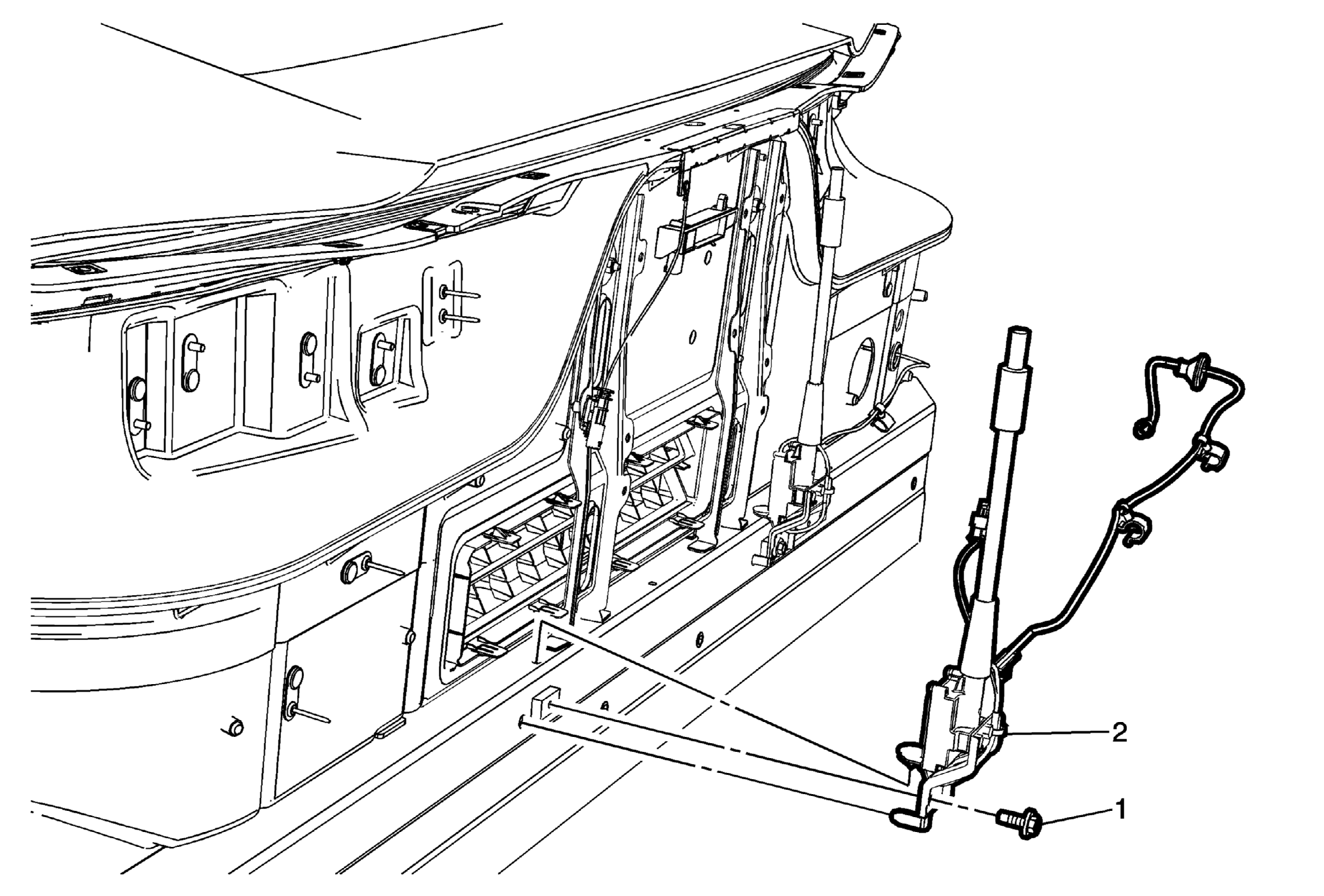

Fig 1: Digital Radio Transceiver Module Antenna

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Eye Protection Warning . Preliminary Procedure Remove the rear end trim finish panel. Refer to Rear End Trim Finish Panel Replacement . Remove the rear energy absorber. Refer to Rear Bumper Fascia Energy Absorber Replacement .
1	Digital Radio Transceiver Module Antenna Fastener CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Digital Radio Transceiver Module Antenna Procedure Disconnect the electrical connectors, remove cable grommet from tub, release clips from rear impact bar, and unclip cable.

Callout

Component Name

WARNING:

Refer to Eye Protection Warning .

Preliminary Procedure

Remove the rear end trim finish panel. Refer to Rear End Trim Finish Panel Replacement .
Remove the rear energy absorber. Refer to Rear Bumper Fascia Energy Absorber Replacement .

Digital Radio Transceiver Module Antenna Fastener

CAUTION:

Refer to Fastener Caution .

Tighten
10 N.m (89 lb in)

Digital Radio Transceiver Module Antenna
Procedure
Disconnect the electrical connectors, remove cable grommet from tub, release clips from rear impact bar, and unclip cable.
