Driver Information Display Replacement

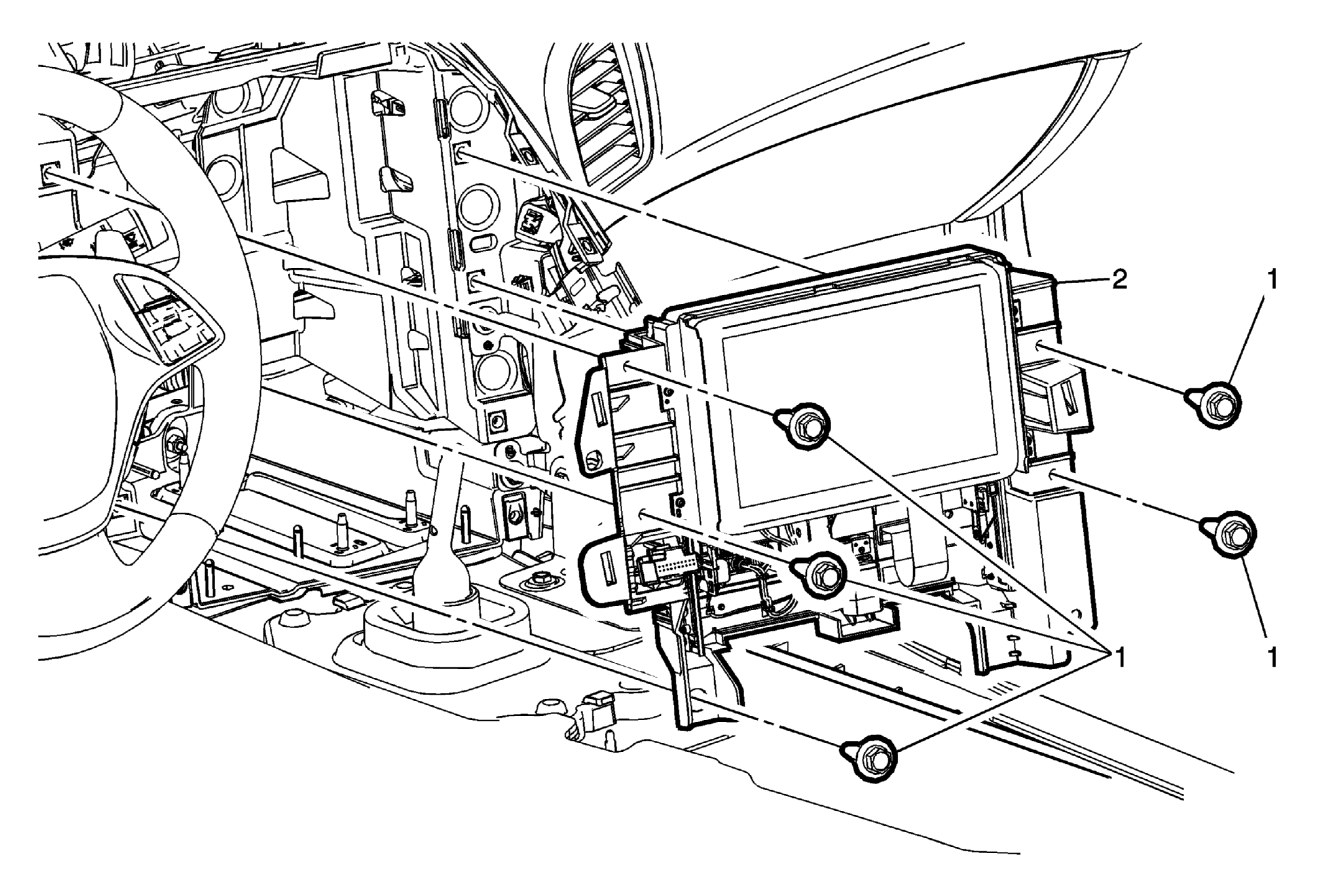

Fig 1: Driver Information Display

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the instrument panel carrier reinforcement. Refer to Instrument Panel Carrier Reinforcement Replacement .
1	Driver Information Display Bolt (Qty: 5) CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb in)
2	Driver Information Display Procedure  Disconnect all electrical connectors.
