Rear Body Fuse Block Replacement

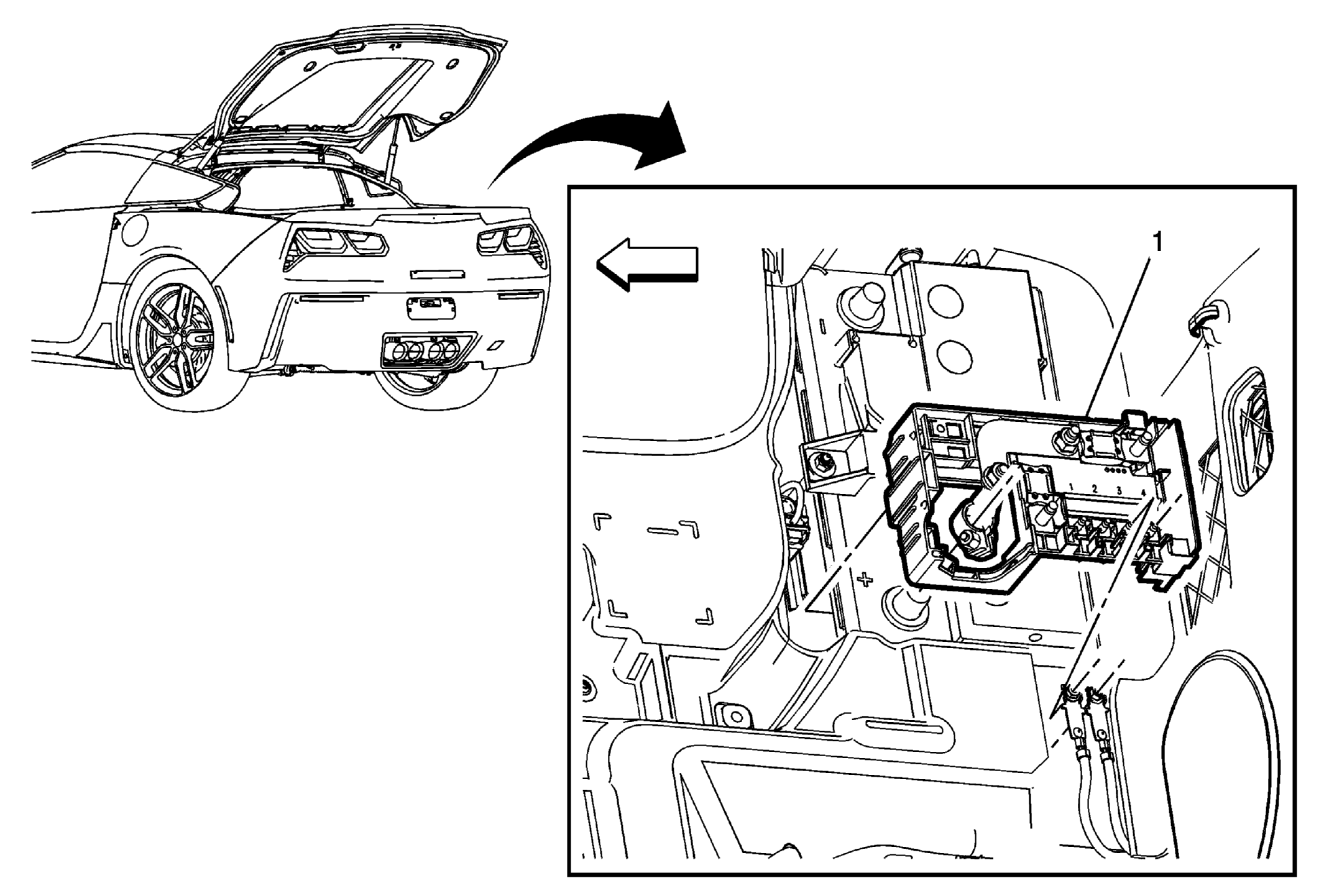

Fig 1: Rear Body Fuse Block
GM3330996Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Disconnect the battery negative cable. Refer to Battery Negative Cable Replacement .
  2. Disconnect the battery positive cable. Refer to Battery Positive Cable Replacement (LT1, LT4)
  3. Remove the rear compartment floor panel trim. Refer to Rear Compartment Floor Panel Trim Replacement (North America)Rear Compartment Floor Panel Trim Replacement (Export - CU9, CV5, CZ3, C4E)
  4. Reposition the rear floor panel carpet support.
1 Rear Body Fuse Block

Procedure

  1. Loosen the positive battery post terminal.
  2. Reposition the fuse block terminal wires.
  3. Release the tab retainers on the front and rear of the rear body fuse block and remove.
