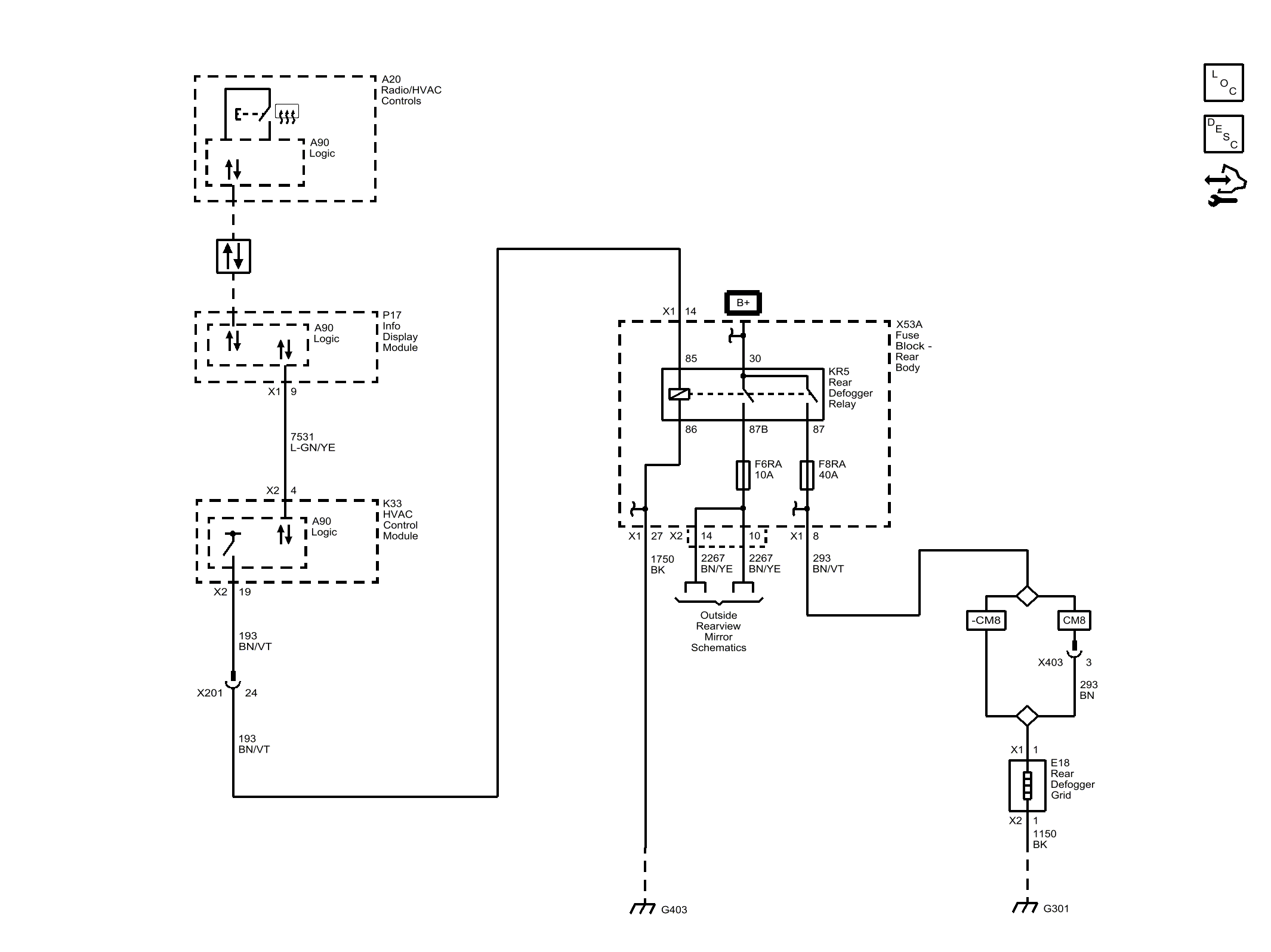

Home >> Chevrolet >> 2017 >> Corvette Stingray, 2D Convertible, Standard Trans >> Repair and Diagnosis >> Body & Frame >> Windows >> Fixed And MOVEABLE Window System >> Schematic Wiring Diagrams >> Defogger Wiring Schematics >> Rear Window Defogger
