Steering Column Electronic Lock Replacement

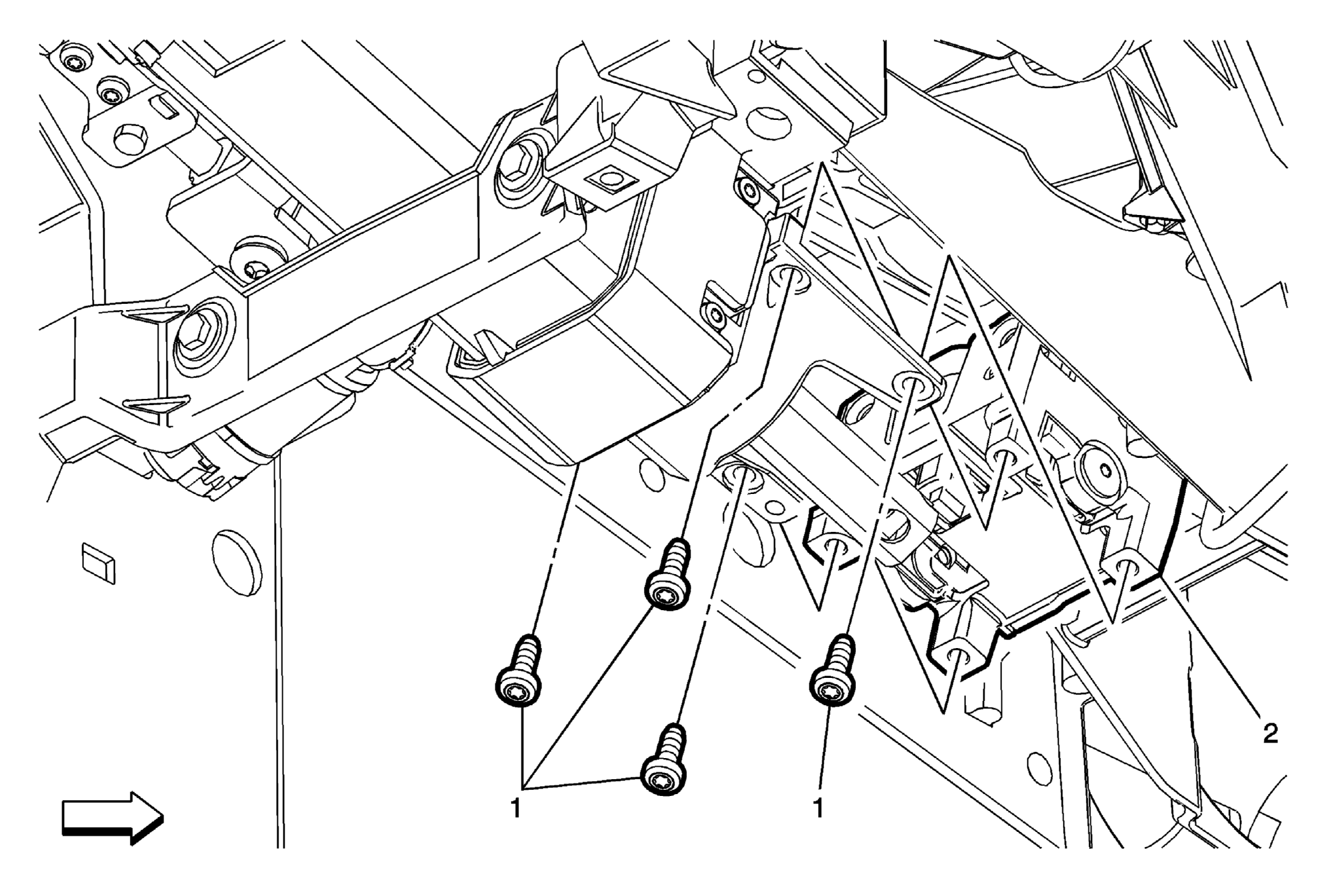

Fig 1: Steering Column Electronic Lock

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Instrument Panel Knee Bolster Replacement Separate the intermediate steering shaft from the steering column and collapse the shaft as far as possible. Intermediate Steering Shaft Replacement Steering Column Control Module Bracket Replacement
1	Steering Column Electronic Lock Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 8 N.m (71 lb in)
2	Steering Column Electronic Lock Procedure Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedures

Steering Column Electronic Lock Bolt (Qty: 4)

CAUTION:

Tighten
8 N.m (71 lb in)

Steering Column Electronic Lock
Procedure
Disconnect the electrical connector.
