Removal Procedure
- Rotate the intermediate steering shaft (2) until the head of the intermediate steering shaft upper bolt (1) is exposed.
- Remove Intermediate Steering Shaft Upper Bolt (1)
- Do NOT disconnect the intermediate steering shaft (2) from the steering column.
- The steering column
- The intermediate shaft(s)
- The steering gear
- Return the steering wheel to the straight ahead position and LOCK the steering column.
- Separate Intermediate Steering Shaft (2) @Steering Column

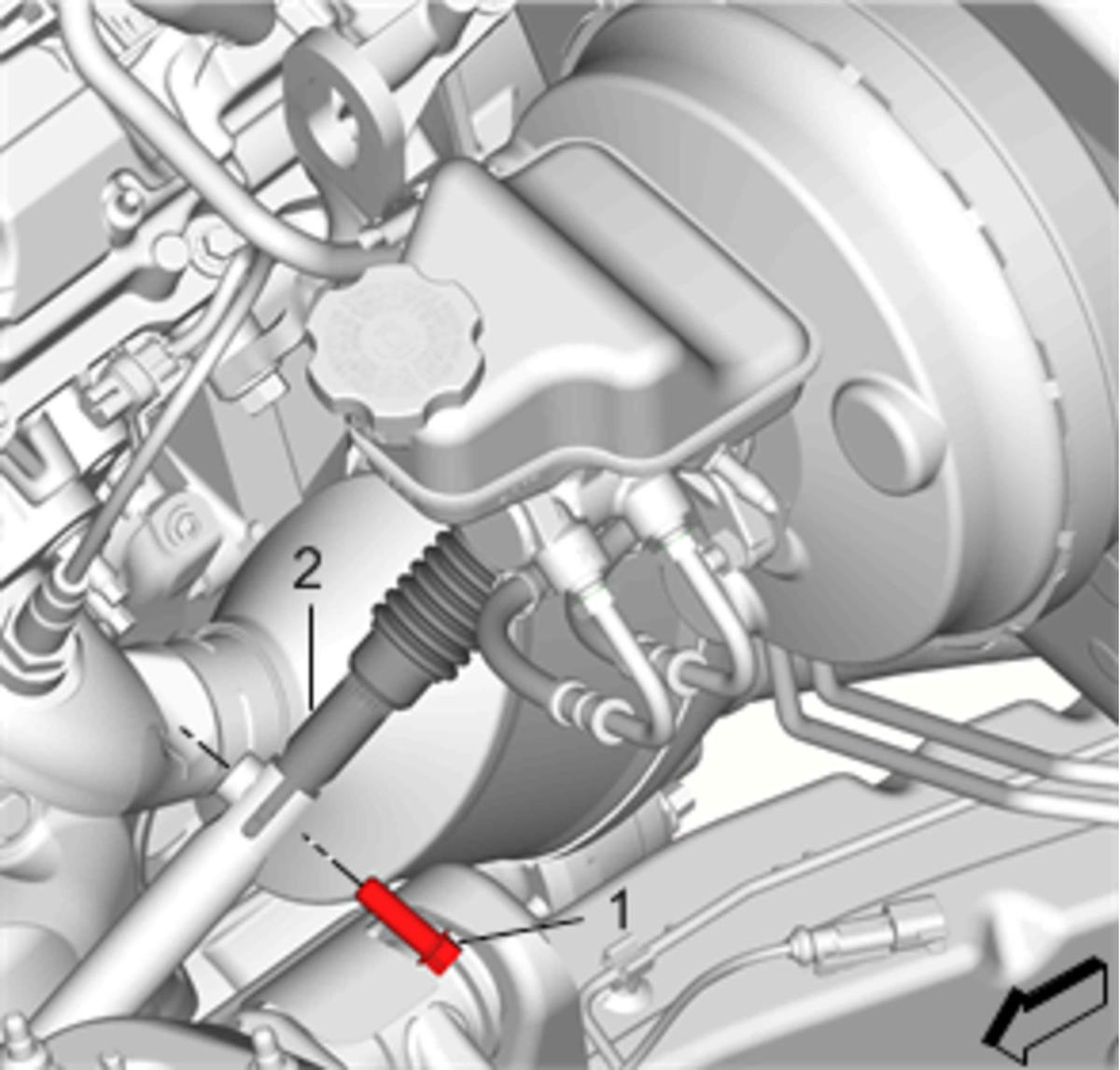

- Remove Intermediate Steering Shaft Lower Bolt (1)
- Separate Intermediate Steering Shaft (2) @Lower Steering Shaft Assembly

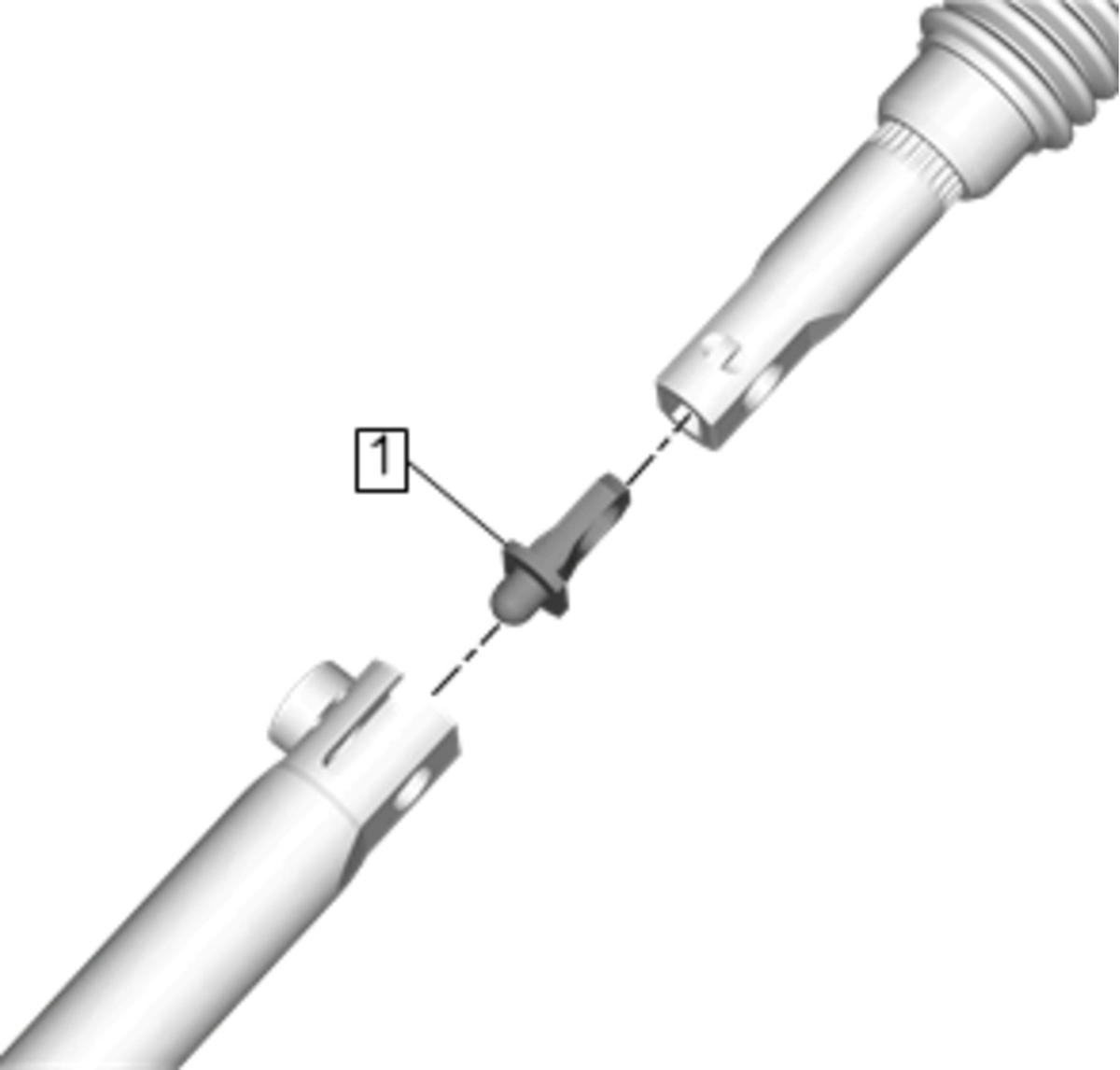

- Remove the plastic insert (1) located at bottom of the intermediate steering shaft.
DISCARD the insert.
- If the plastic insert (1) is missing, it may have fallen into the lower steering shaft assembly. The insert MUST be removed prior to intermediate steering shaft reassembly.

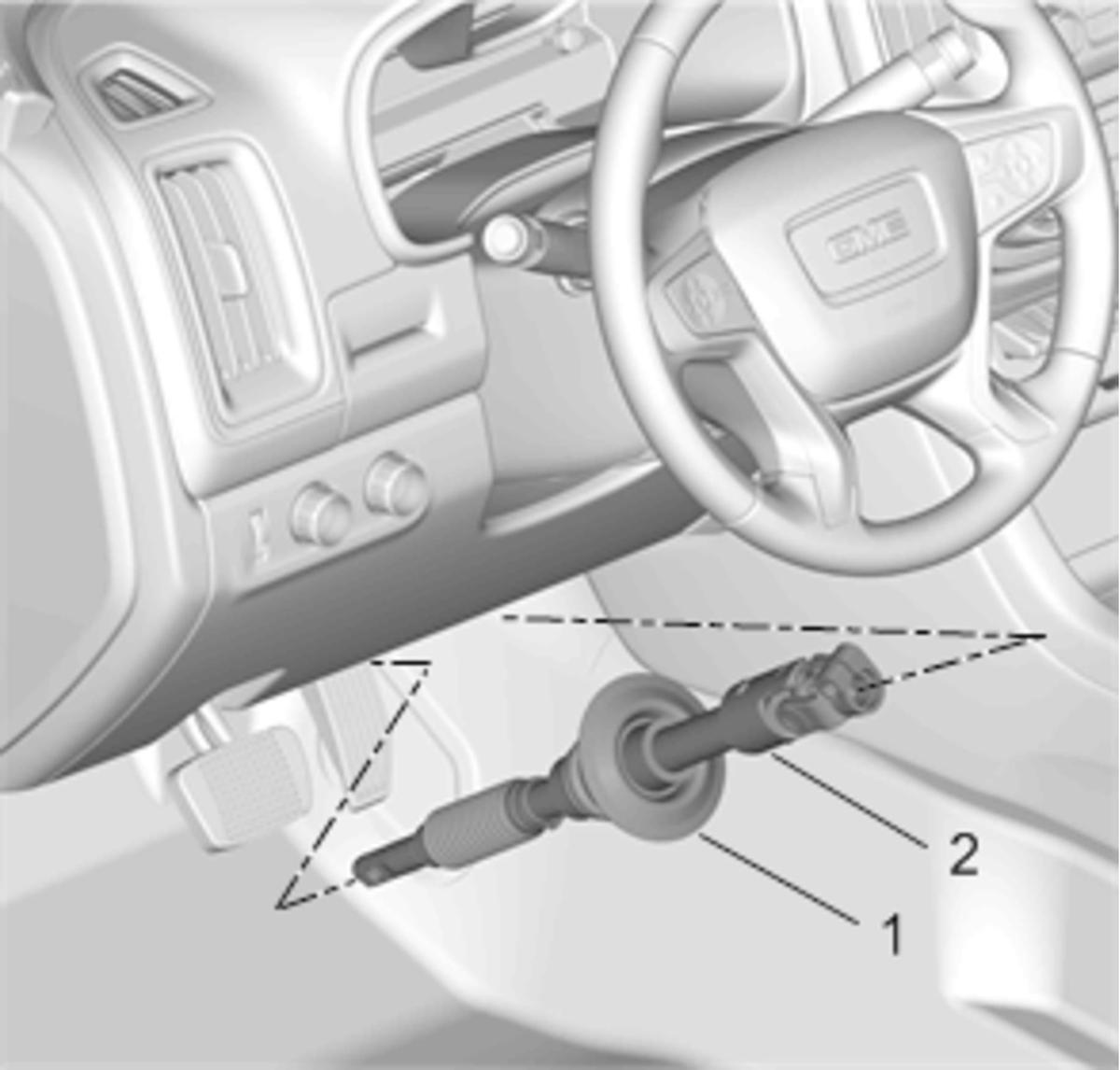

- Separate the intermediate steering shaft seal from the dash panel. (1)
- Remove Intermediate Steering Shaft (2)
With wheels of the vehicle facing straight ahead, secure the steering wheel utilizing steering column anti-rotation pin, steering column lock, or a strap to prevent rotation. Locking of the steering column will prevent damage and a possible malfunction of the SIR system. The steering wheel must be secured in position before disconnecting the following components:
After disconnecting these components, do not rotate the steering wheel or move the front tires and wheels. Failure to follow this procedure may cause the SIR coil assembly to become un-centered and cause possible damage to the SIR coil. If you think the SIR coil has become un-centered, refer to your specific SIR coil's centering procedure to re-center SIR Coil.
Prior to intermediate steering shaft reassembly, remove the plastic insert located at the bottom of the intermediate steering shaft. Failure to remove this insert may result in binding in the steering system or possible bodily injury.
