Electrical Component Locator - Instrument Panel/Center Console Component Views
>>
Instrument Panel/Center Console Component Views
>>
HVAC Under Instrument Panel

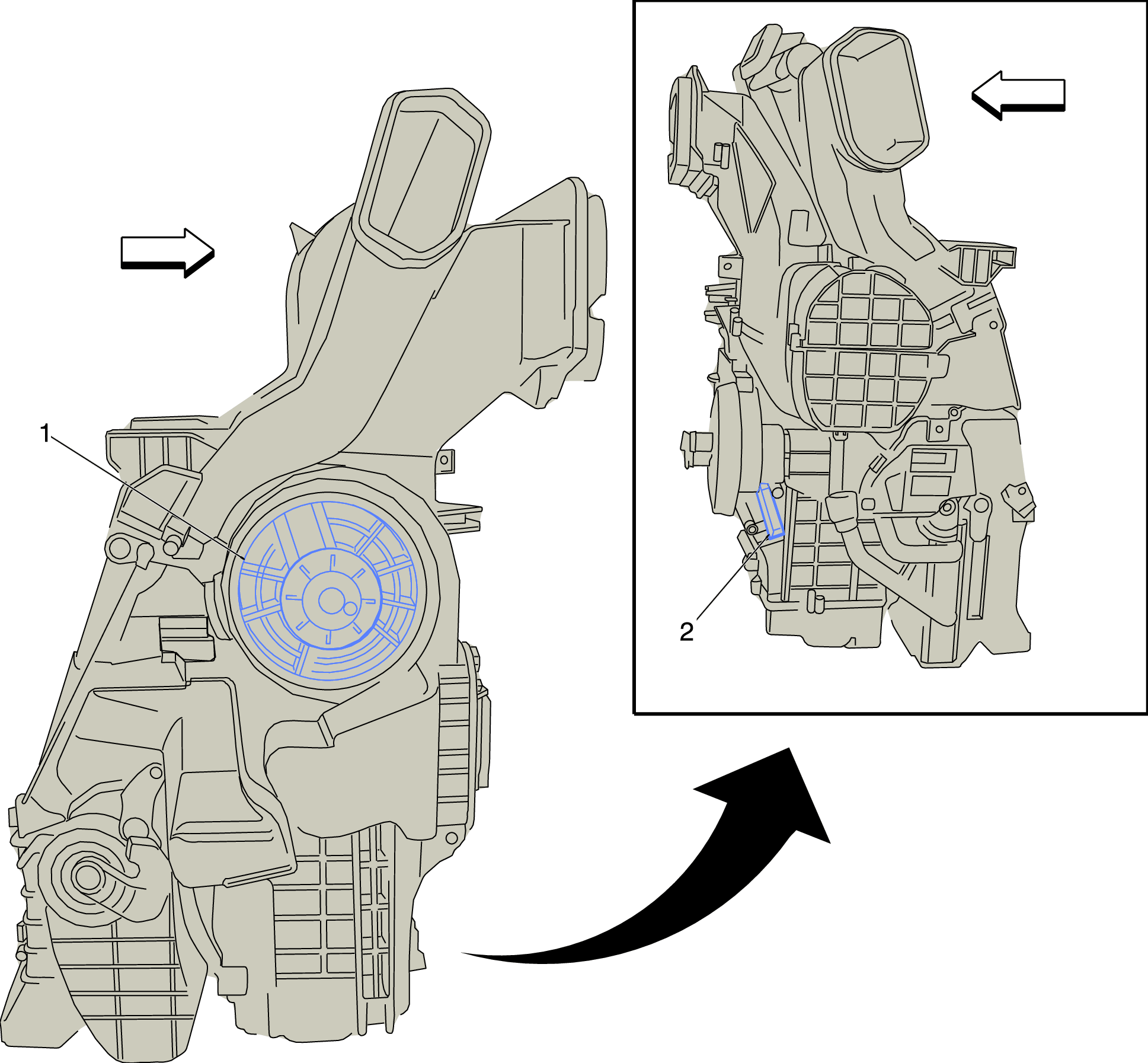

HVAC Under Instrument Panel
Courtesy of
HVAC Under Instrument Panel
Items
Callout
M8 Blower Motor
CONNECTOR VIEW
(1)
R3 Blower Motor Resistor
CONNECTOR VIEW
(2)
