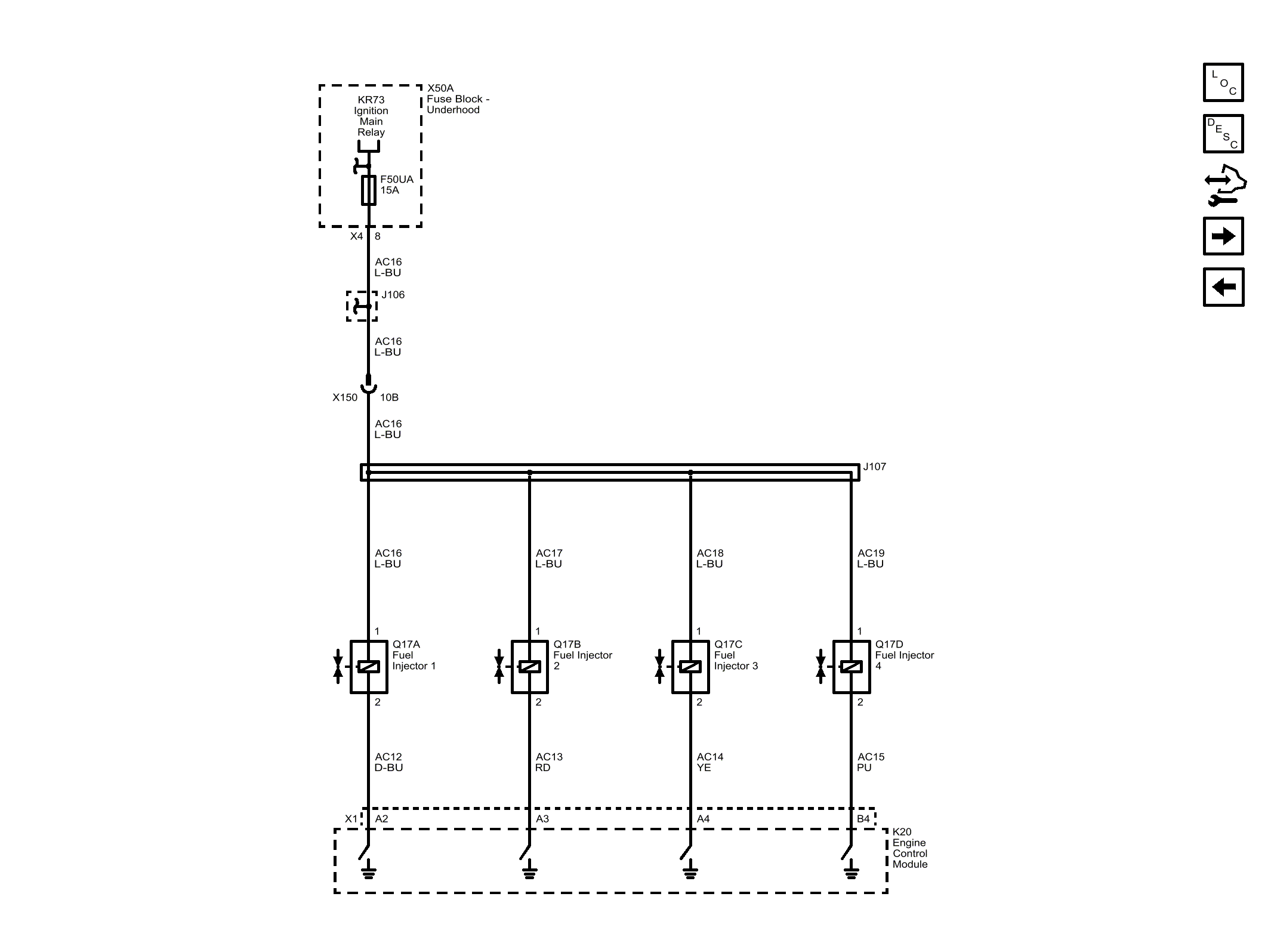

Home >> Chevrolet >> 2017 >> City Express LS >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls And Fuel - 2.0L >> Schematic Wiring Diagrams >> Engine Controls Wiring Schematics >> Fuel Controls - Fuel Injectors
