Pedal Position Sensor Components

Pedal Position Sensor Components

Items
1. B80 Park Brake Switch B80 Park Brake Switch
2. B22 Brake Pedal Position Sensor B22 Brake Pedal Position Sensor
3. B107 Accelerator Pedal Position Sensor B107 Accelerator Pedal Position Sensor

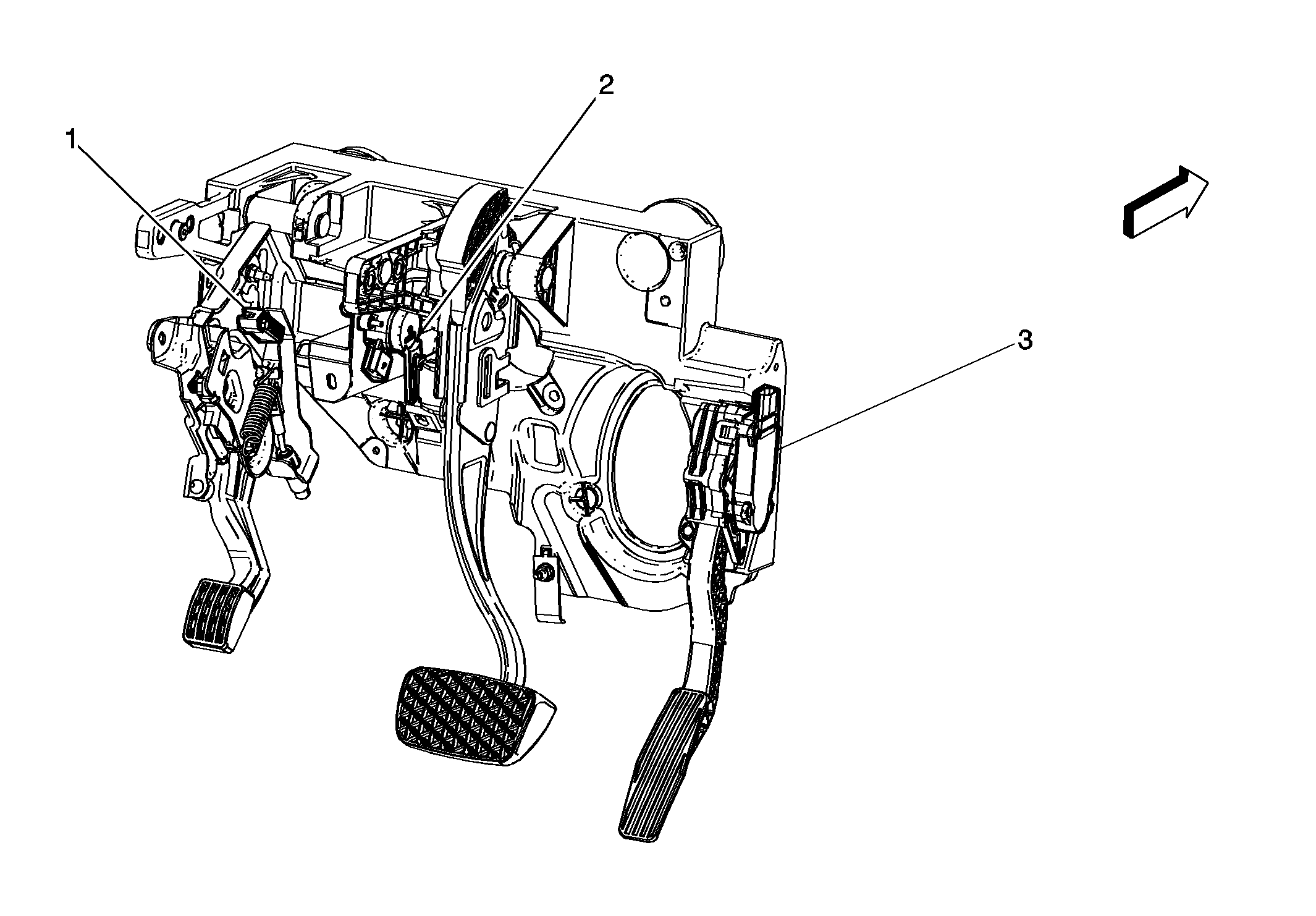

Fig 1: Pedal Position Sensor Components
GM3462816Courtesy of GENERAL MOTORS COMPANY
