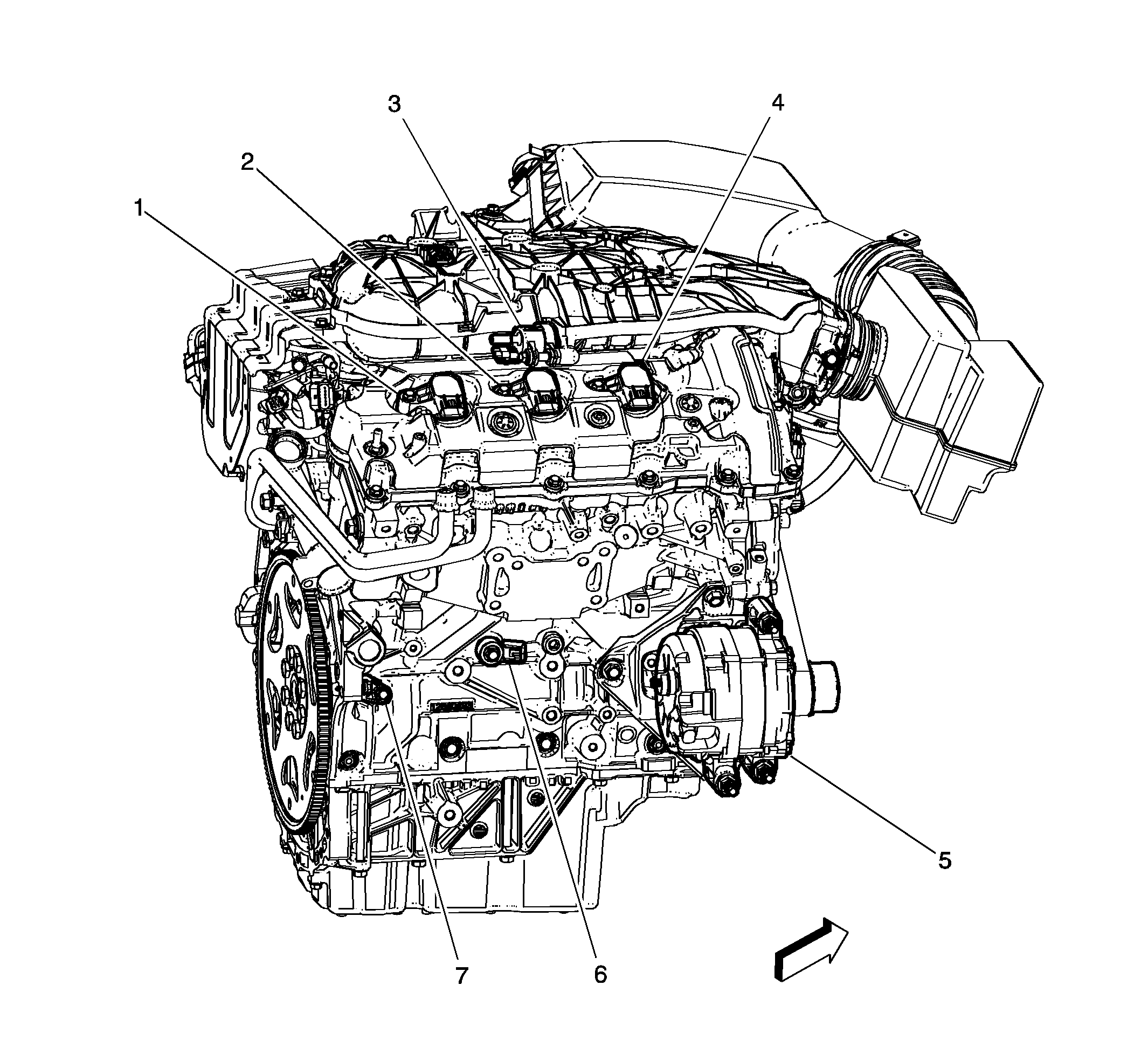

Right of Engine Components
Right of Engine Components
| Items |
|---|
| 1. T8E Ignition Coil 5 T8E Ignition Coil 5 (L77)T8E Ignition Coil 5 (LFX) |
| 2. T8C Ignition Coil 3 T8C Ignition Coil 3 (L77)T8C Ignition Coil 3 (LFX) |
| 3. Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve (L77)Q12 Evaporative Emission Purge Solenoid Valve (LFX) |
| 4. T8A Ignition Coil 1 T8A Ignition Coil 1 (L77)T8A Ignition Coil 1 (LFX) |
| 5. G13 Generator G13 Generator |
| 6. B68A Knock Sensor 1 B68A Knock Sensor 1 (L77)B68A Knock Sensor 1 (LFX) |
| 7. B26 Crankshaft Position Sensor B26 Crankshaft Position Sensor (L77)B26 Crankshaft Position Sensor (LFX) |
