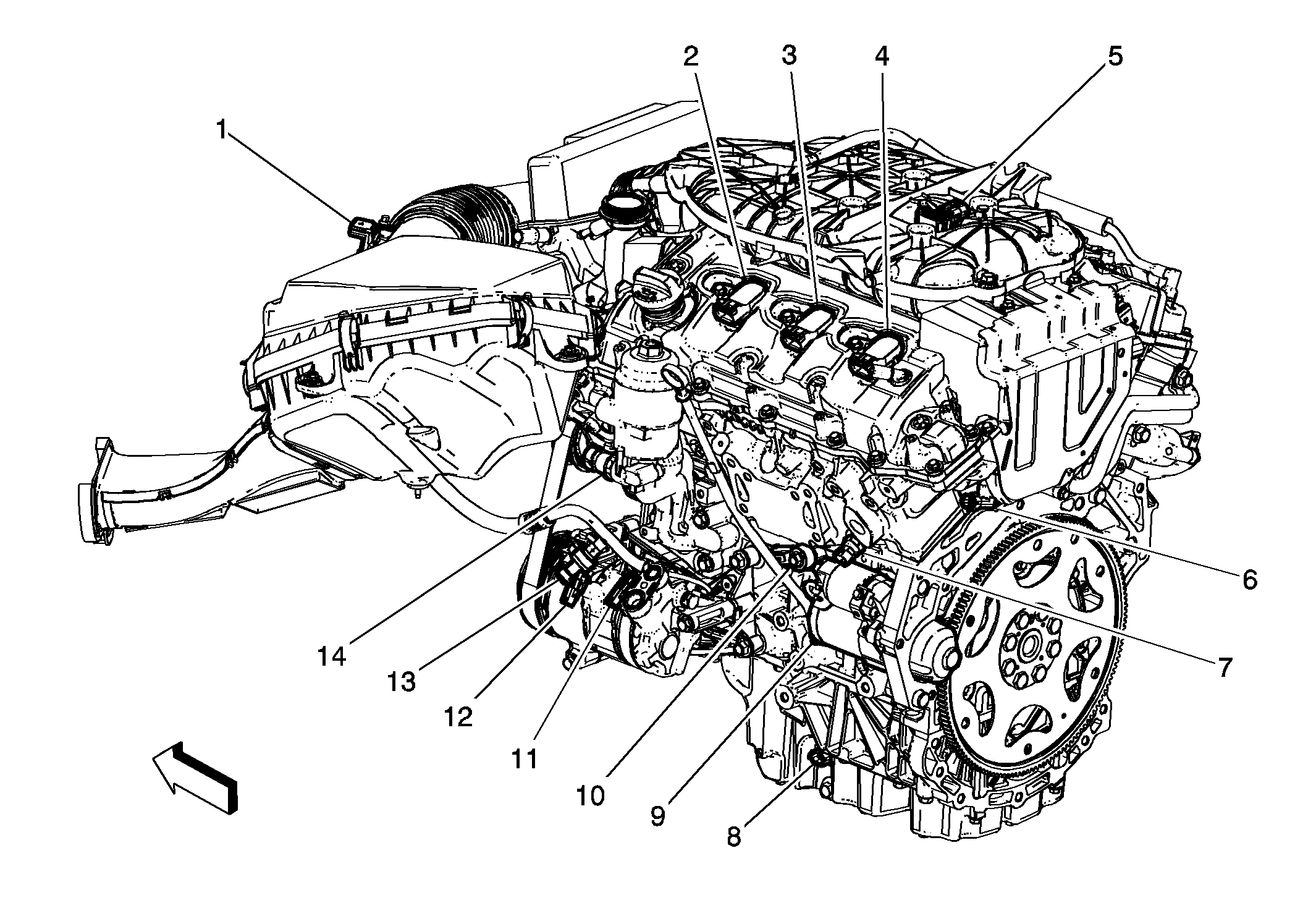

Left Rear of Engine Components
Left Rear of Engine Components
| Items |
|---|
| 1. B75C Multifunction Intake Air Sensor (LFX) B75C Multifunction Intake Air Sensor |
| 2. T8B Ignition Coil 2 T8B Ignition Coil 2 (L77) |
| 3. T8D Ignition Coil 4 T8D Ignition Coil 4 (L77)T8D Ignition Coil 4 (LFX) |
| 4. T8F Ignition Coil 6 T8F Ignition Coil 6 (L77)T8F Ignition Coil 6 (LFX) |
| 5. B74 Manifold Absolute Pressure Sensor B74 Manifold Absolute Pressure Sensor |
| 6. G18 High Pressure Fuel Pump (LFX) G18 High Pressure Fuel Pump |
| 7. B34 Engine Coolant Temperature Sensor B34 Engine Coolant Temperature Sensor (L77)B34 Engine Coolant Temperature Sensor (LFX) |
| 8. B35 Engine Oil Level Switch (LFX) B35 Engine Oil Level Switch |
| 9. M64 Starter Motor M64 Starter Motor |
| 10. B68B Knock Sensor 2 B68B Knock Sensor 2 (L77)B68B Knock Sensor 2 (LFX) |
| 11. G1 A/C Compressor G1 A/C Compressor |
| 12. Q2 A/C Compressor Clutch (LFX) Q2 A/C Compressor Clutch |
| 13. B1 A/C Refrigerant Pressure Sensor B1 A/C Refrigerant Pressure Sensor |
| 14. B37 Engine Oil Pressure Switch (LFX) B37 Engine Oil Pressure Switch |
