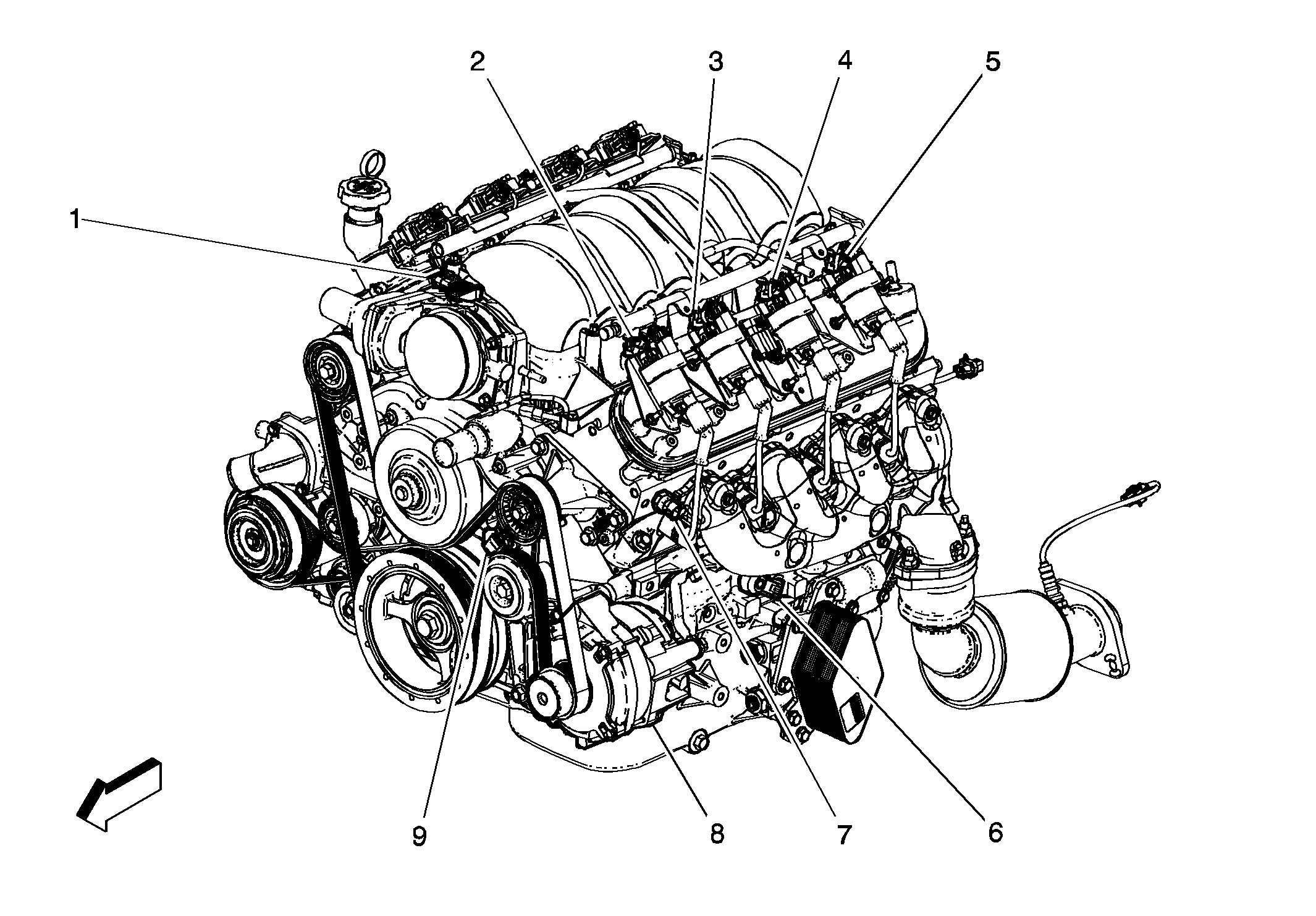

Left Front of Engine Components
Left Front of Engine Components
| Items |
|---|
| 1. B74 Manifold Absolute Pressure Sensor B74 Manifold Absolute Pressure Sensor |
| 2. Q17A Fuel Injector 1 Q17A Fuel Injector 1 |
| 3. Q17C Fuel Injector 3 Q17C Fuel Injector 3 |
| 4. Q17E Fuel Injector 5 Q17E Fuel Injector 5 |
| 5. Q17G Fuel Injector 7 Q17G Fuel Injector 7 |
| 6. B68A Knock Sensor 1 B68A Knock Sensor 1 (L77)B68A Knock Sensor 1 (LFX) |
| 7. B34 Engine Coolant Temperature Sensor B34 Engine Coolant Temperature Sensor (L77)B34 Engine Coolant Temperature Sensor (LFX) |
| 8. G13 Generator G13 Generator |
| 9. B23 Camshaft Position Sensor (L77) B23 Camshaft Position Sensor (L77) |
