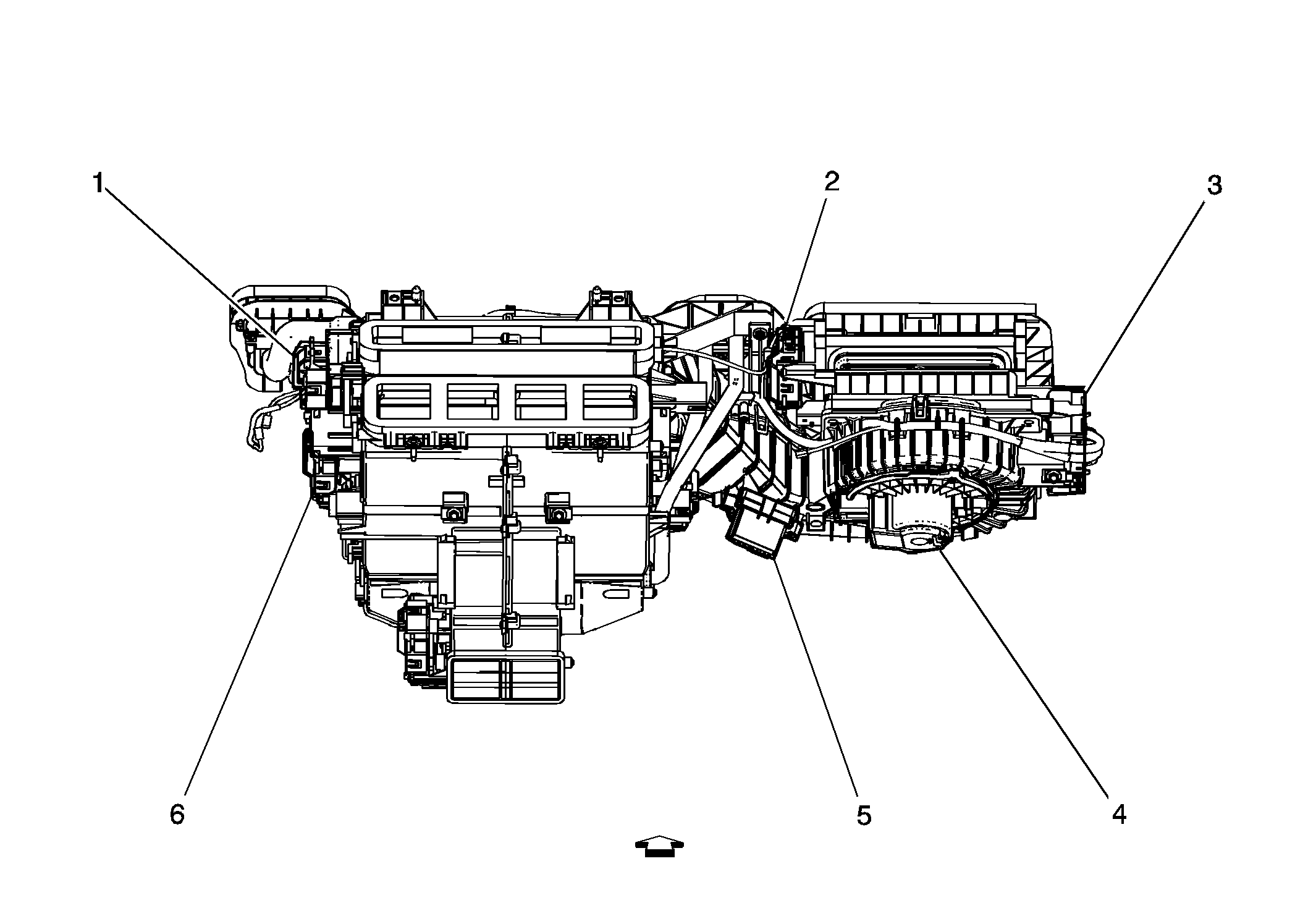

HVAC Module Components
HVAC Module Components
| Items |
|---|
| 1. M37L Mode Door Actuator - Left |
| 2. M37R Mode Door Actuator - Right |
| 3. K33 HVAC Control Module K33 HVAC Control Module X1 |
| 4. M8 Blower Motor M8 Blower Motor |
| 5. K8 Blower Motor Control Module K8 Blower Motor Control Module X1K8 Blower Motor Control Module X2 |
| 6. M6L Air Temperature Door Actuator - Left |
