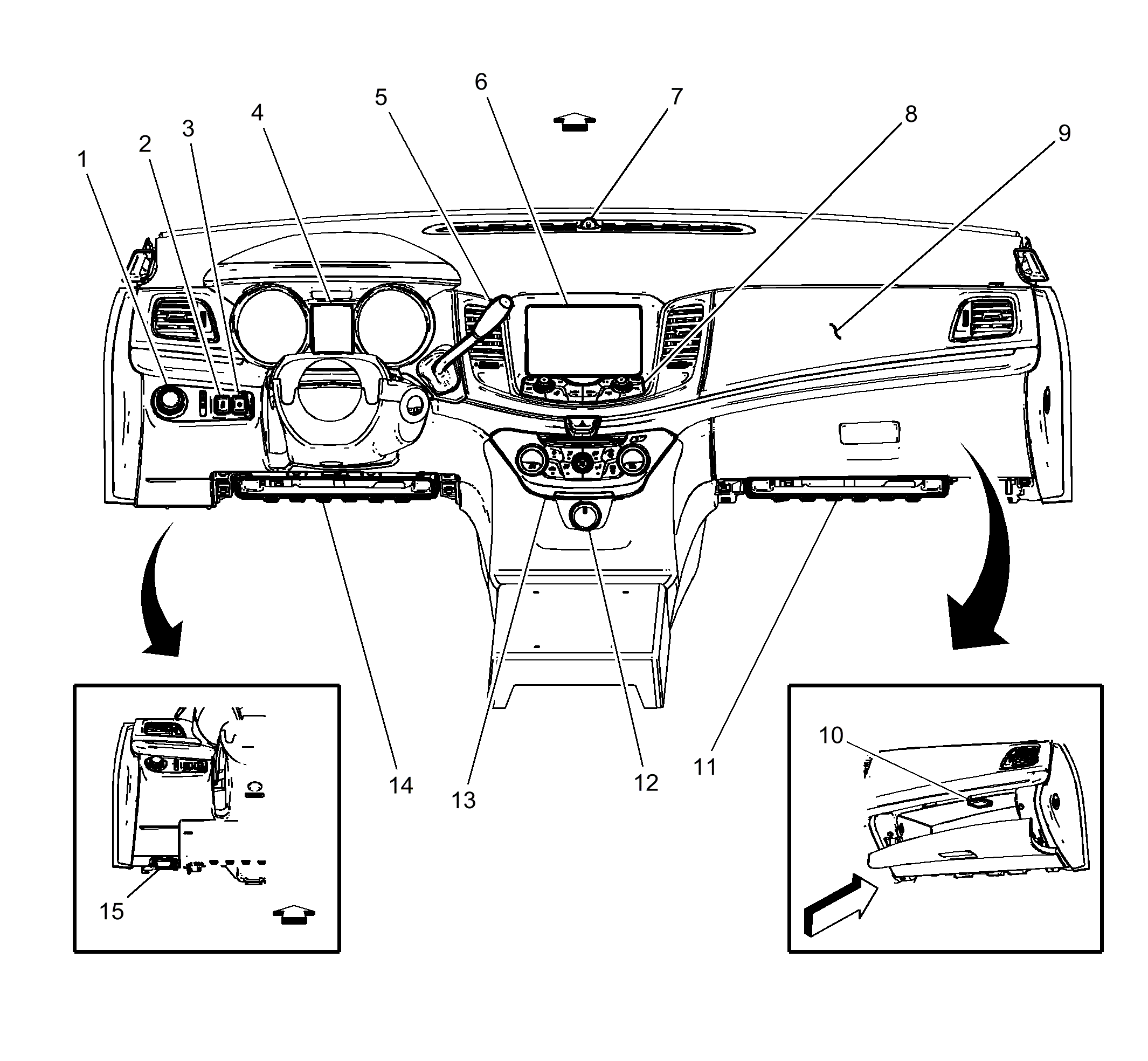

Front of Instrument Panel Components
Front of Instrument Panel Components
| Items |
|---|
| 1. S30 Headlamp Switch S30 Headlamp Switch |
| 2. S75 Traction Control Switch |
| 3. S109 Sport Mode Switch S109 Sport Mode Switch |
| 4. P16 Instrument Cluster P16 Instrument Cluster |
| 5. M7 Transmission Shift Lock Control Solenoid Actuator (M97) M7 Transmission Shift Lock Control Solenoid Actuator |
| 6. P17 Info Display Module P17 Info Display Module X1P17 Info Display Module X2P17 Info Display Module X3 |
| 7. B10B Ambient Light/Sunload Sensor B10B Ambient Light/Sunload Sensor |
| 8. A11 Radio A11 Radio X1A11 Radio X4A11 Radio X5 |
| 9. F101 Passenger Instrument Panel Air Bag F101 Passenger Instrument Panel Air Bag X1F101 Passenger Instrument Panel Air Bag X2 |
| 10. E27 Instrument Panel Compartment Lamp E27 Instrument Panel Compartment Lamp |
| 11. F114P Knee Air Bag - Passenger F114P Knee Air Bag - Passenger |
| 12. X80F Accessory Power Receptacle - Front |
| 13. A26 HVAC Controls A26 HVAC Controls |
| 14. F114D Knee Air Bag - Driver F114D Knee Air Bag - Driver |
| 15. X84 Data Link Connector X84 Data Link Connector |
